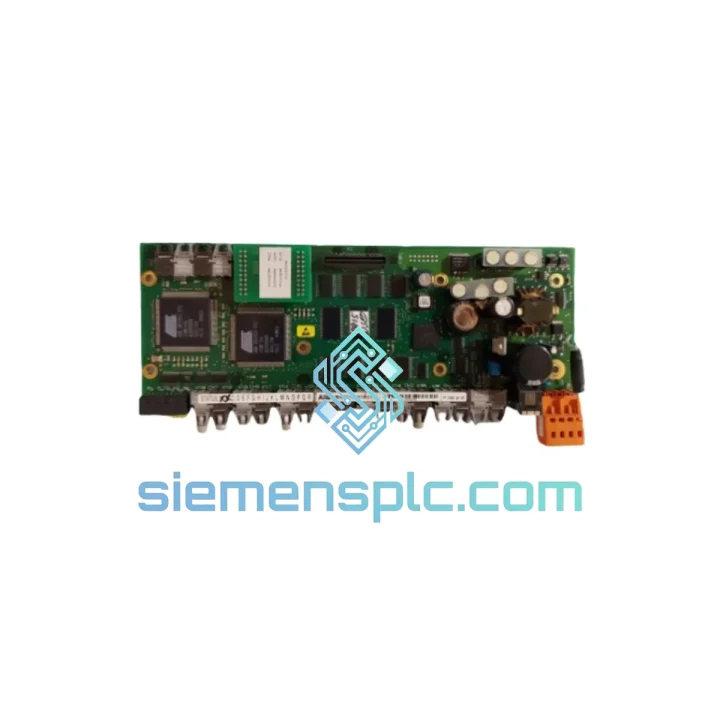

ABB PP C902 AE101 3BHE010751R0101 Processor Control Board – AC800PEC

ABB PP C902 AE101 / 3BHE010751R0101 — AC800PEC Real-Time Processor Board for High-Power Drive and Excitation Control

The ABB PP C902 AE101 (order code 3BHE010751R0101) is the central processing unit of the AC800PEC high-performance control platform, deployed across medium-voltage variable-speed drives (ACS6000, ACS5000), generator excitation systems (UNITROL 6000), and marine propulsion controllers. Its primary function within the control loop is executing deterministic, microsecond-resolution closed-loop algorithms — field-oriented torque control, flux regulation, and reactive power management — while simultaneously managing inter-board communication, diagnostics, and supervisory logic. Unlike general-purpose PLCs, the PP C902 AE101 is purpose-built for power electronics control, where jitter in the control cycle directly translates to harmonic distortion, torque ripple, or grid instability. The board’s architecture reflects this constraint at every design layer, from its dedicated DSP co-processor to its galvanically isolated fiber-optic backplane interface.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PP C902 AE101 implements a two-tier processing architecture that separates time-critical control execution from supervisory and communication tasks. The primary DSP core handles the inner control loops — current regulation, space-vector modulation (SVM) output, and flux estimation — at a fixed interrupt rate synchronized to the IGBT gate-pulse cycle. This hard real-time partition is isolated from the RISC supervisory core by a shared-memory interface with semaphore arbitration, preventing any communication or diagnostic task from introducing latency into the control interrupt service routine.

The DDCS (Distributed Drive Control System) fiber-optic interface is a key architectural element. By using plastic optical fiber for all inter-board signaling, the PP C902 AE101 achieves complete galvanic isolation between the processor board and the power electronics section. This eliminates conducted EMI coupling paths that would otherwise corrupt ADC readings or corrupt the control state machine during IGBT switching transients — a critical requirement in medium-voltage drive cabinets where dV/dt values routinely exceed 5 kV/µs. The DDCS ring topology also provides inherent fault detection: a broken fiber segment is detected within one communication cycle, triggering a controlled drive trip rather than an undefined control state.

Parameter and firmware storage uses flash memory with wear-leveling and CRC verification on every read cycle. On power-up, the board performs a self-test sequence that validates memory integrity, DSP clock accuracy, and backplane communication before releasing the drive enable signal. This boot-time diagnostic prevents a partially corrupted firmware image from reaching the control loop — a failure mode that has caused uncontrolled drive starts in competing architectures using EEPROM without read-back verification.

The PCB layout applies a multi-layer ground plane strategy with separate analog and digital ground domains joined at a single star point adjacent to the main power supply decoupling network. High-frequency bypass capacitors (100 nF X7R ceramic) are placed within 2 mm of each IC power pin, suppressing supply-rail noise below the ADC’s least-significant-bit threshold. The conformal acrylic coating (IPC-CC-830) protects against condensation and airborne conductive particulates in industrial environments, extending mean time between failures (MTBF) in humidity-variable installations.

System Integration Benefits

• Deterministic 62.5 µs control cycle: The DSP interrupt is phase-locked to the PWM carrier, ensuring that current feedback sampling, vector calculation, and gate-pulse update occur within a fixed, verifiable time window — eliminating the non-determinism inherent in OS-scheduled software loops.
• Fiber-optic galvanic isolation: All inter-board data paths use DDCS plastic fiber, removing ground-loop and common-mode noise coupling between the processor and power stages. This directly reduces ADC measurement error in high-dV/dt switching environments.
• Native AC800PEC ecosystem compatibility: The PP C902 AE101 communicates natively with ABB I/O boards (PP D116), communication modules (PP C905), and power supply boards (PP D113) without protocol converters or custom firmware — reducing integration engineering hours.
• Boot-time self-diagnostics: Memory CRC, DSP clock, and backplane link are verified before the drive enable output is asserted. Faults detected at boot generate specific diagnostic codes readable via ABB DriveWindow or the local HMI, enabling root-cause identification without oscilloscope-level debugging.
• Online parameter modification: Control parameters (PI gains, ramp rates, protection thresholds) can be written to flash during operation via the DDCS link without interrupting the control cycle, supporting commissioning and process optimization without plant shutdowns.
• Redundancy-ready architecture: In UNITROL 6000 excitation applications, two PP C902 AE101 boards can be configured in hot-standby redundancy with automatic bumpless transfer on primary board failure, maintaining generator excitation continuity during board replacement.
• Structured fault logging: The supervisory CPU maintains a time-stamped fault buffer in non-volatile flash, recording the last 64 fault events with associated process variable snapshots. This data survives power loss and is retrievable via DriveWindow for post-trip analysis without requiring external data loggers.
• Firmware field-upgradeability: Firmware updates are applied via the DDCS link using ABB’s standard toolchain, with automatic rollback to the previous version if the new image fails its post-flash CRC check — eliminating the risk of a failed update leaving the board in an unbootable state.
• Conformal coating for harsh environments: IPC-CC-830 acrylic coating on all PCB surfaces provides protection against humidity, condensation, and conductive dust ingress, extending service intervals in cement, mining, and coastal marine installations where uncoated boards require annual inspection.

Quality Assurance & Global Logistics

Every ABB PP C902 AE101 / 3BHE010751R0101 unit dispatched from our Xiamen, China facility is sourced through verified industrial automation supply channels and processed through a structured incoming inspection protocol. Visual inspection covers PCB surface condition, connector pin integrity, component seating, and label authenticity — part markings and date codes are cross-referenced against ABB documentation to screen for non-genuine parts. Where test fixtures are available, boards are powered under controlled bench conditions and DDCS communication is validated prior to packaging.

Units are classified by condition at the point of listing: new-surplus stock retains original ABB packaging and documentation; professionally refurbished units are cleaned, re-inspected, and carry a 12-month functional warranty covering component and workmanship defects under normal operating conditions. All units ship in anti-static bags with foam cushioning inside double-wall export cartons, with desiccant packs for ocean freight consignments.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Air freight options for plant-down emergencies are available with same-day dispatch on in-stock units confirmed before 14:00 CST. Full export documentation — commercial invoice, packing list, certificate of origin, and MSDS where required — is prepared for every shipment. HS Code: 8537.10 (boards for electric control or distribution of electricity).
