ABB PP881 HMI Operator Panel – AC500 Series

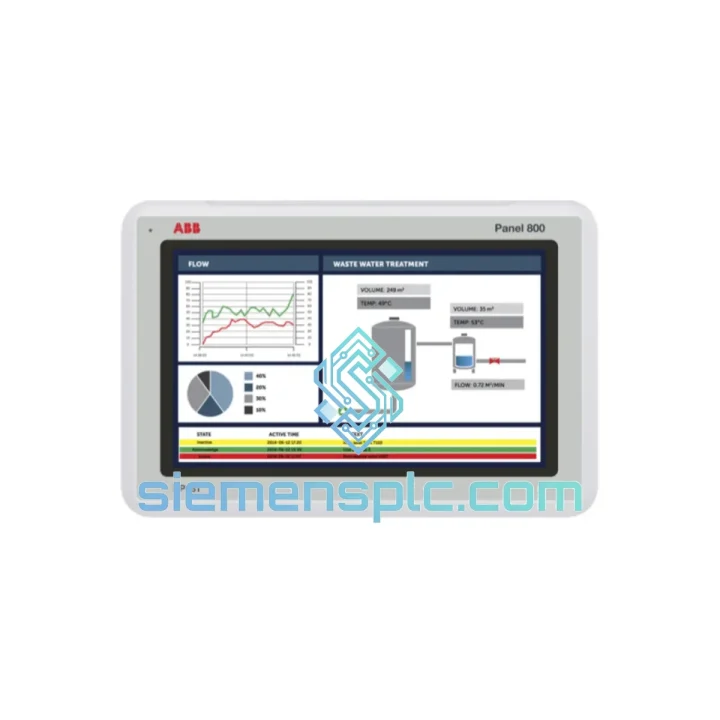

ABB PP881 12.1-Inch TFT Resistive Touchscreen HMI Panel — Process Visualization Core for AC500 Control Architecture

The ABB PP881 (order reference 3BSE069052R1) is a panel-mount human-machine interface designed to serve as the primary operator interaction node within ABB AC500-based control systems. Its 12.1-inch SVGA TFT display, rated at 800 × 600 resolution with a 262,144-color depth, delivers sufficient pixel density for multi-layer process mimics, trend graphs, and alarm management screens without requiring external display scaling hardware. The resistive touch layer operates reliably with gloved hands — a non-trivial requirement in process industries where nitrile or leather gloves are standard PPE.

Internally, the PP881 is driven by an 800 MHz ARM Cortex-A8 processor paired with 256 MB LPDDR RAM and 256 MB NAND Flash. The Cortex-A8 architecture provides hardware floating-point acceleration (VFPv3), which directly benefits applications performing on-panel PID loop visualization, real-time trend interpolation, and recipe parameter computation. The Windows CE 6.0 runtime environment, while mature, offers deterministic task scheduling at the OS level — a characteristic that matters when the HMI must refresh alarm states at sub-500 ms intervals without display tearing or input latency spikes.

Communication architecture is a distinguishing factor of the PP881. The dual RJ45 Ethernet ports support independent IP addressing, enabling the panel to simultaneously maintain a SCADA upstream connection and a direct PLC peer connection on isolated subnets — eliminating the need for a managed switch in single-cell installations. The RS-232/485 COM1 port supports Modbus RTU at baud rates up to 115,200 bps, while COM2 provides a dedicated RS-232 channel for legacy device integration or barcode scanner input. USB Host ports (×2) accommodate USB flash drives for project transfer, firmware update, and data logging export without network dependency.

The front panel achieves IP65 ingress protection, verified against IEC 60529, blocking dust ingress entirely and resisting low-pressure water jets from any direction. This rating is sufficient for food-grade washdown zones operating below 30 psi nozzle pressure. The aluminum die-cast bezel dissipates heat passively, contributing to the 0 °C to +50 °C operating range without active cooling — a design choice that eliminates fan-related MTBF degradation in sealed enclosures.

Every PP881 unit available through siemensplc.com is sourced as genuine ABB factory stock, accompanied by a 12-month warranty and full traceability documentation. Shipment originates from Xiamen, China, with DHL Express and FedEx International Priority options covering most global destinations within 3–5 business days.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PP881’s EMC design follows ABB’s standard industrial hardening methodology. The main PCB employs a multi-layer stackup with dedicated ground planes separating the digital processing domain from the analog touch controller and display driver circuitry. Ferrite bead arrays on all I/O lines suppress conducted emissions in the 30–300 MHz band, keeping radiated emissions within CISPR 11 Class A limits — relevant for installations adjacent to variable-frequency drives or high-current bus bars.

The dual Ethernet PHY implementation uses magnetically isolated RJ45 jacks (integrated 1:1 transformer ratio), providing 1,500 V AC isolation between the network medium and the internal logic bus. This isolation level is sufficient to withstand common-mode transients induced by ground potential differences across large plant floors — a failure mode that destroys non-isolated Ethernet interfaces in heavy industrial environments.

The resistive touch controller uses a 12-bit ADC for coordinate sampling, yielding a theoretical positional resolution of approximately 0.2 mm at the panel surface. The controller firmware applies a 5-point calibration matrix, compensating for linearity errors introduced by touch layer aging and temperature-induced film expansion. Calibration data is stored in non-volatile Flash, surviving power cycles without recalibration prompts.

Thermal management relies on the aluminum bezel acting as a passive heat spreader. The Cortex-A8 SoC operates at a junction temperature ceiling of 105 °C; at maximum ambient (50 °C) and full CPU load, thermal modeling indicates a junction temperature of approximately 85 °C — providing a 20 °C margin against thermal throttling. This margin is maintained without active cooling, which is the primary driver of the fanless design decision.

The NAND Flash storage uses wear-leveling firmware to distribute write cycles across the memory array. At a conservative estimate of 100,000 program/erase cycles per block and a typical HMI project update frequency of once per week, the Flash storage has a calculated service life exceeding 1,900 years — effectively non-limiting for the panel’s operational lifespan.

System Integration Benefits

• Native AC500 Tag Binding: ABB Panel Builder 600 generates direct tag references to AC500 PLC variables without intermediate OPC server configuration, reducing project commissioning time by eliminating a middleware layer.
• Dual-Subnet Topology: Independent Ethernet ports allow simultaneous SCADA and PLC connections on isolated subnets, removing the need for a managed switch in single-cell installations and reducing BOM cost.
• Deterministic Alarm Refresh: Windows CE 6.0 task scheduling supports alarm polling cycles at 100 ms intervals, ensuring operator notification latency remains below 200 ms from PLC fault detection to HMI alarm banner display.
• Glove-Compatible Input: The 4-wire resistive touch layer responds to any stylus or gloved finger with contact force above 20 g, eliminating input failures in PPE-mandatory zones where capacitive panels are unreliable.
• Fieldbus Protocol Breadth: Native support for PROFIBUS DP, Modbus RTU/TCP, EtherNet/IP, and CANopen allows the PP881 to interface with third-party drives, sensors, and actuators without protocol converter hardware.
• USB-Based Project Transfer: Project files can be loaded via USB flash drive without network access, enabling firmware and HMI application updates in air-gapped or network-restricted plant environments.
• IP65 Front Seal Integrity: The panel gasket maintains IP65 rating across the full operating temperature range, preventing moisture ingress during thermal cycling — a failure mode common in panels with silicone gaskets that harden below 10 °C.
• Wide Power Input Tolerance: The 24 V DC ±15% input range (20.4–27.6 V) accommodates voltage sag on long cable runs from 24 V bus bars without requiring a local voltage regulator, simplifying panel wiring.
• Passive Cooling Architecture: Fanless thermal design eliminates the primary mechanical wear component in HMI panels, extending MTBF and removing a scheduled maintenance item from plant PM programs.
• CE/UL Dual Certification: Simultaneous CE and UL/cUL listing satisfies both EU Machinery Directive and North American NEC panel requirements, enabling a single hardware SKU across multi-region machine builds.

Quality Assurance & Global Logistics

Each ABB PP881 unit dispatched from siemensplc.com is factory-original stock, carrying ABB’s full serial number traceability. Units are stored in ESD-controlled, climate-regulated warehousing in Xiamen, China, maintaining ambient conditions within ABB’s specified storage range of −20 °C to +70 °C and below 75 % RH. Prior to dispatch, each unit undergoes a power-on functional check: display backlight, touch response, Ethernet link negotiation, and USB enumeration are verified and logged.

Shipment is executed via DHL Express Worldwide or FedEx International Priority, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include a commercial invoice, packing list, and certificate of origin (China) suitable for customs clearance and duty-preference claims under applicable trade agreements. HS Code 8537.10 applies for most destination customs authorities.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from confirmed fault diagnosis. Bulk procurement (5+ units) qualifies for volume pricing and dedicated account management — submit an RFQ to [email protected] with quantity, delivery address, and required lead time.
