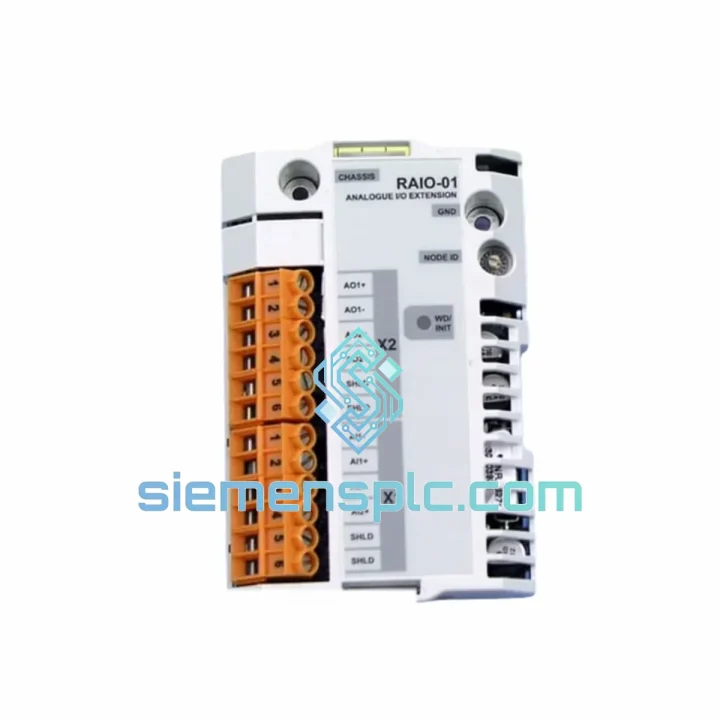

ABB RAIO-01 64379224F Analogue I/O Module – Drive I/O Series

ABB RAIO-01 64379224F — Analogue I/O Extension Module: Signal Architecture and Control Loop Role

The ABB RAIO-01 (catalog reference 64379224F) is a dedicated analogue I/O expansion module engineered for the ACS800 and DCS800 drive platform option slot architecture. Its primary function within a closed-loop control system is to decouple the analogue signal layer from the drive’s main control board, providing additional, electrically isolated analogue input and output channels without modifying the host drive’s firmware baseline or voiding its type-tested certification.

In a typical variable-speed drive installation, the main control board carries a fixed number of analogue I/O channels — commonly two inputs and one output — which is insufficient for multi-variable process control scenarios such as tension-speed cascade loops, dual-zone pressure regulation, or torque-feedforward architectures. The RAIO-01 resolves this constraint by occupying one of the drive’s dedicated option slots and communicating with the main control board via the internal DDCS-based option bus at a deterministic cycle time, ensuring that analogue setpoints and feedback values are transferred synchronously with the drive’s own control cycle.

The module supports both voltage (0–10 V) and current (0–20 mA / 4–20 mA) signal modes, selectable per channel via hardware jumper or parameter configuration depending on the host drive firmware version. Input resolution is 12-bit, providing a theoretical step resolution of approximately 2.44 mV at 10 V full scale — adequate for process control applications where sensor accuracy is the limiting factor rather than the digitization stage. Output channels are buffered and short-circuit protected, with a maximum load impedance specification that accommodates standard 4–20 mA field transmitters and positioners without external signal conditioning.

From a system architecture standpoint, the RAIO-01 is particularly valuable in retrofit and expansion scenarios where the host drive is already commissioned and parameter-locked. Because the module integrates through the option bus rather than the main I/O terminal block, field engineers can add analogue capacity during a planned maintenance window without re-wiring the existing control cabinet or re-commissioning the drive’s core parameter set. This characteristic makes it a preferred solution in paper machine, steel rolling, and water treatment installations where unplanned downtime carries significant process cost.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RAIO-01’s internal architecture separates the analogue front-end from the digital communication layer through a galvanic isolation barrier. On the field side, each analogue input channel passes through a differential amplifier stage before reaching the 12-bit successive-approximation ADC. The differential topology provides common-mode rejection of ground-loop noise — a critical requirement in drive cabinets where PWM switching transients can induce common-mode voltages of several volts on unshielded signal cables. The module’s specified common-mode rejection ratio (CMRR) ensures that a 1 V common-mode disturbance at 50 Hz produces less than 0.5 mV of differential error at the ADC input, which translates to less than 0.05 % of full-scale reading error under typical industrial noise conditions.

On the output side, the DAC stage drives a voltage-to-current converter with a feedback sense resistor in the current loop. This architecture maintains output accuracy independent of load resistance variation within the specified range, which is significant in installations where cable lengths between the drive cabinet and field actuators exceed 50 m and loop resistance is not precisely controlled.

The option bus interface implements a time-deterministic communication protocol synchronized to the drive’s main control task cycle. Analogue values are transferred as 16-bit integers scaled to the drive’s internal per-unit system, with the scaling factor configurable via drive parameters. This means the RAIO-01 does not introduce additional latency beyond one control cycle — typically 2 ms to 10 ms depending on the host drive’s configured control cycle time — which is acceptable for all process control applications and most motion control applications where the mechanical time constant of the load exceeds 50 ms.

EMC compliance is achieved through a combination of PCB-level filtering on all analogue inputs, a shielded module housing that provides continuity with the drive’s chassis ground, and ferrite bead filtering on the option bus connector. The module meets the conducted and radiated emission limits of EN 61800-3 Category C2 when installed in a correctly earthed drive enclosure, without requiring additional external EMC filters on the analogue signal cables provided that cables are shielded and the shield is terminated at the drive end only.

System Integration Benefits

• Non-invasive capacity expansion: Adds analogue I/O channels through the option slot without modifying the main control board wiring, preserving the drive’s existing parameter set and type-test certification.
• Deterministic data transfer: Option bus synchronization ensures analogue values are updated within one drive control cycle, eliminating the jitter associated with external PLC-to-drive analogue wiring.
• Reduced wiring infrastructure: Consolidating analogue I/O inside the drive enclosure shortens signal cable runs from field instruments, reducing both installation cost and susceptibility to induced noise.
• Galvanic isolation: The isolation barrier between field-side analogue channels and the drive logic bus prevents ground-loop currents from corrupting process variable readings — a common failure mode in multi-drive installations sharing a common signal reference.
• Flexible signal mode configuration: Per-channel voltage/current selection accommodates mixed sensor types (e.g., 4–20 mA pressure transmitters alongside 0–10 V speed references) within a single module, eliminating the need for external signal converters.
• Diagnostic transparency: The drive’s parameter monitoring system exposes RAIO-01 channel values as standard drive parameters, making them visible in the drive’s keypad display, PC tool (DriveWindow), and any connected fieldbus master without additional configuration.
• Firmware-independent operation: The module’s analogue front-end operates independently of drive firmware updates; only the parameter mapping requires verification after a firmware upgrade, not the hardware calibration.
• Scalable multi-module architecture: Multiple option modules can be installed simultaneously in drives with more than one option slot, allowing analogue I/O, encoder feedback, and fieldbus communication to coexist without hardware conflicts.

Quality Assurance & Global Logistics

Every ABB RAIO-01 64379224F unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Units are sourced exclusively from verified ABB authorized distribution channels and certified industrial surplus networks with full traceability documentation. Prior to packaging, each module is inspected for physical integrity, label authenticity against ABB’s published part number database, and connector condition. Anti-static packaging with humidity indicator cards is used for all shipments to protect the module’s CMOS-based analogue front-end circuitry during transit.

International express freight is dispatched via DHL Express, FedEx International Priority, and UPS Worldwide, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include full tracking, commercial invoice, and packing list documentation suitable for customs clearance. For project-quantity orders, consolidated sea freight and air freight options are available with competitive lead times. A 12-month warranty covers all units against manufacturing defects and premature failure under normal operating conditions, with advance replacement available for critical production applications subject to prior arrangement.
