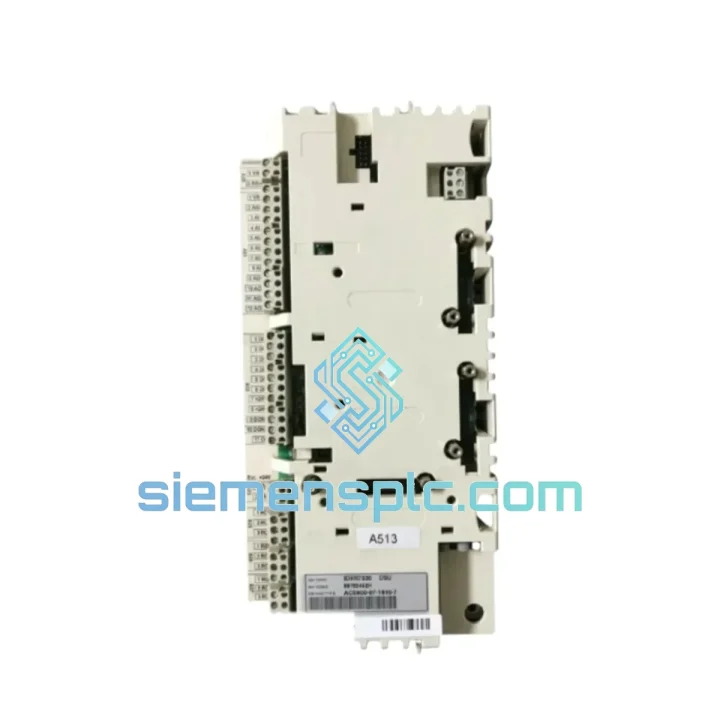

ABB RDCU-12C ASXR7360 Drive Control Unit

ABB RDCU-12C (ASXR7360): Stop the Clock on Your Downtime — Ship Today from Xiamen

Your ACS800 or ACS600 drive is down. The line is stopped. Every hour of unplanned downtime is burning through your production budget. The RDCU-12C is the central control brain of your drive system — when it fails, nothing moves. We stock verified OEM ABB RDCU-12C (ASXR7360) units in Xiamen, ready to dispatch via DHL or FedEx Express within hours of order confirmation. No waiting on factory lead times. No compromise on authenticity.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on ACS800 and ACS600 platforms, these are the failure patterns and swap pitfalls that catch engineers off guard:

Common Fault Codes Pointing to RDCU-12C Failure:

• F-0001 / F-0002 (Overcurrent / DC Overvoltage): If these faults appear immediately at power-up with no load connected, suspect the RDCU’s gate pulse generation logic rather than the IGBT stack. Swap the RDCU first before condemning the inverter board.
• F-0009 (Undervoltage): Persistent undervoltage faults with confirmed supply voltage can indicate the RDCU’s internal 24 V monitoring circuit has drifted. Measure the 24 V rail at the RDCU connector — anything below 22.5 V under load is a red flag.
• F-0022 (DDCS Communication Loss): This fault almost always traces back to the fiber-optic TX/RX ports on the RDCU-12C. Inspect the plastic ferrules for yellowing or cracking — UV degradation kills fiber signal integrity in outdoor or skylight-exposed panels.
• A-0006 (AI Supervision): Analog input supervision alarms after a board swap usually mean the AI1/AI2 jumpers (voltage vs. current mode) were not matched to the original configuration. Check parameter group 11 and the physical jumper block on the RDCU PCB.

Step-by-Step Replacement Procedure:

1. Parameter Backup First: Before pulling the old board, connect DriveWindow or the ACS800 control panel and upload a full parameter backup to PC or panel memory. The RDCU-12C stores parameters in its own Flash EEPROM — if the board is dead, you may still recover parameters via the panel’s memory card if one was used.
2. Power Down & Lockout: Isolate the drive from mains supply. Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 V. Verify with a calibrated meter — do not rely on the drive’s own voltage display if the RDCU is suspect.
3. Fiber-Optic Handling: The DDCS fiber connectors are fragile. Cap them immediately after disconnection. Never touch the fiber end-faces. A single fingerprint on the TX port will cause F-0022 on first power-up and waste 30 minutes of troubleshooting time.
4. Firmware Version Check: The replacement RDCU-12C must carry firmware compatible with your drive’s software version. Check parameter 33.01 (Software Version) on the old drive before the swap. Mismatched firmware between RDCU and AINT board causes erratic torque behavior that looks like a mechanical fault.
5. AI/DI Jumper Replication: Photograph the jumper block on the old RDCU before removal. Replicate the exact jumper positions on the new board. AI mode mismatch (voltage vs. current) will not throw a fault immediately — it will cause a slow speed reference drift that takes hours to diagnose.
6. Parameter Restore & Commissioning Check: After installation, restore the parameter backup. Run the drive at 5 Hz no-load and verify AI, DI, DO, and AO signals against the original I/O list before reconnecting the process.

Reliability in Harsh Conditions

The RDCU-12C was engineered for environments where consumer-grade electronics simply stop working. ABB’s design validation for this board includes:

• Vibration: Qualified to IEC 60068-2-6 sinusoidal vibration testing — 3.5 mm displacement at 2–9 Hz, 10 m/s² at 9–200 Hz. This covers the resonance frequencies typical of compressor skids, ship engine rooms, and rail-mounted control cabinets.
• Thermal Cycling: Rated for continuous operation at +55 °C ambient. The PCB substrate and component selection account for differential thermal expansion across the −40 °C to +70 °C storage-to-operating range — critical in outdoor substations with no climate control.
• Humidity & Condensation: Conformal coating on the PCB provides protection against humidity up to 95% RH non-condensing. In coastal or tropical installations, this coating is the difference between a 10-year service life and a corrosion failure in 18 months.
• EMI Immunity: The DDCS fiber-optic communication link eliminates ground loop interference entirely. In steel mills and arc furnace environments where copper-based communication fails within months, the RDCU-12C’s fiber architecture maintains signal integrity indefinitely.
• ESD Protection: All I/O terminals incorporate transient voltage suppression. Field wiring mistakes — accidental 24 V injection into an AI terminal, for example — are survivable events rather than board-killing failures.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for orders confirmed before 15:00 CST. Here is exactly how your shipment moves:

• Order Confirmation → Warehouse Pick: Within 2 hours of payment confirmation, the unit is pulled from stock, inspected, and packed in anti-static ESD bag with foam-lined outer carton. A humidity indicator card is included for transit monitoring.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared simultaneously. HS Code 853710 is pre-declared. For destinations requiring CITES or dual-use export screening, we flag and resolve before handover to carrier — no customs holds caused by incomplete paperwork.
• Carrier Selection: DHL Express and FedEx International Priority are our primary carriers from Xiamen Gaoqi International Airport. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days. We select the fastest available flight routing at time of booking.
• Tracking & Visibility: Tracking number is sent via email and WhatsApp within 4 hours of carrier pickup. For critical shutdowns, we provide proactive status updates at each major transit hub.
• Customs Clearance Support: We provide all documentation required for import clearance in EU, US, and GCC markets. For first-time importers, our logistics team can advise on import duty classification and broker recommendations in your country.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
