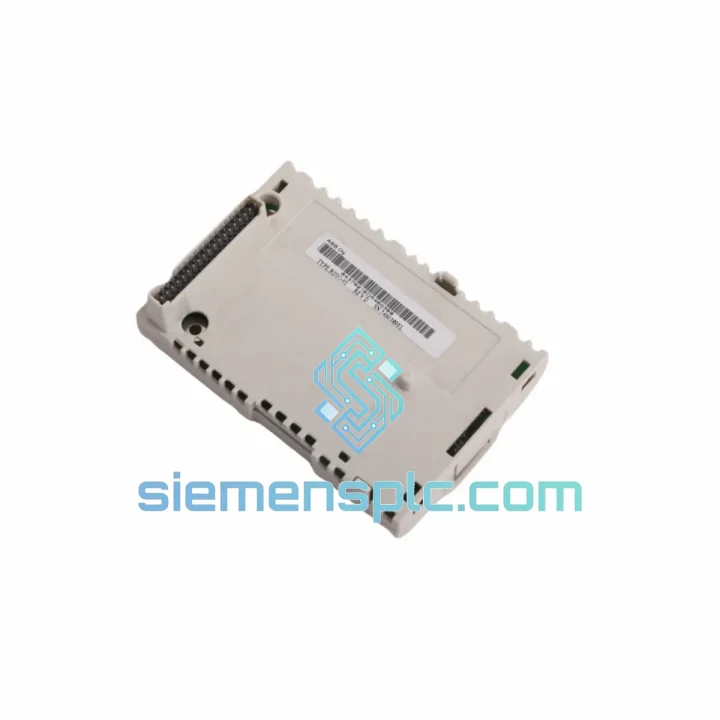

ABB RDIO-01 Drive I/O Extension Module – ACS Series

ABB RDIO-01 — Relay & Digital I/O Extension Module: Expanding Drive Control Logic at the Hardware Layer

The RDIO-01 is a factory-engineered relay and digital I/O extension module produced by ABB for direct integration into the option slot architecture of ACS-series variable frequency drives and DCS800 DC drive platforms. Its primary function is to extend the native I/O capacity of the drive control board, enabling engineers to implement multi-signal interlocking, relay-based load switching, and external feedback acquisition without routing signals through a separate PLC rack or marshalling cabinet. The module operates entirely from the drive’s internal option bus — no auxiliary 24 VDC rail is required at the terminal level for module logic power.

In a typical motor control center (MCC) or drive panel, the base drive unit provides a limited number of digital inputs and relay outputs sufficient for single-loop start/stop and fault signaling. When the application demands additional discrete feedback — such as thermal switch monitoring, external contactor confirmation, or multi-step speed reference selection — the RDIO-01 provides four additional 24 VDC digital input channels and three independent relay output channels, all mapped transparently into the drive’s parameter set. This eliminates the latency and wiring overhead associated with routing I/O signals through an external PLC before they reach the drive control unit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Option Bus Architecture and Signal Isolation: The RDIO-01 communicates with the drive control unit via ABB’s proprietary option slot bus — a synchronous serial interface embedded in the drive’s backplane connector. This bus carries both configuration data (parameter mapping) and real-time I/O state updates at the drive’s internal scan cycle rate, which on ACS880 platforms operates at sub-millisecond intervals. Because the I/O state is transferred over this internal bus rather than through an external fieldbus, the RDIO-01 achieves deterministic I/O response times that are decoupled from network load or PLC scan jitter.

Relay Output Contact Architecture: Each of the three relay outputs uses a Form C (changeover) contact configuration. This means each channel presents a common terminal (COM), a normally open contact (NO), and a normally closed contact (NC) simultaneously. In practice, this allows a single relay channel to simultaneously de-energize one circuit and energize another upon state change — a critical requirement in safety interlock designs where both the run and fault signal paths must be driven from the same logical source without additional relay logic. The relay coil drive circuitry is isolated from the digital logic supply, preventing coil switching transients from coupling into the drive’s control electronics.

EMC Design Considerations: The RDIO-01 is designed to operate within the electromagnetic environment of a variable frequency drive panel — one of the most electrically noisy environments in industrial automation. The module’s PCB layout incorporates ground plane separation between the relay contact circuits and the digital logic section. The option slot connector provides a defined ground reference shared with the drive’s control board, ensuring that common-mode noise on the relay output wiring does not propagate into the drive’s signal processing chain. For installations where relay output cables run parallel to motor power cables, ABB recommends maintaining a minimum 200 mm separation or using shielded cable with shield grounded at the panel earth bar.

PNP/NPN Input Compatibility: The four digital input channels support both sourcing (PNP) and sinking (NPN) field device outputs. This is implemented through a configurable input circuit that can accept current flow in either direction relative to the 24 VDC common. In practice, this means the RDIO-01 can interface directly with proximity sensors, limit switches, and PLC output modules from different manufacturers without requiring signal conditioning relays or polarity adapters — a significant wiring simplification in retrofit and multi-vendor panel environments.

System Integration Benefits

• Zero External Power Wiring for Module Logic: The RDIO-01 draws its operating power entirely from the drive option slot bus. No separate 24 VDC supply terminal, fuse, or cable run is required for module operation, reducing panel wiring complexity and eliminating a potential single-point-of-failure in the module power path.
• Deterministic I/O Scan Synchronization: Because the module’s I/O state is read and written within the drive’s internal control cycle, digital input changes are processed at the same rate as the drive’s speed and torque control loops — typically 250 µs to 1 ms on ACS880 platforms. This eliminates the asynchronous latency that occurs when I/O is routed through an external PLC before reaching the drive.
• Parameter-Based I/O Mapping Without Custom Code: All four digital inputs and three relay outputs are mapped to drive functions through standard parameter groups. No ladder logic, function block programming, or custom firmware is required. Engineers configure the module using the drive’s standard commissioning tool (Drive Composer or ACS control panel), reducing commissioning time and eliminating software version dependency risks.
• Expanded Relay Output Capacity for Safety Signaling: The three Form C relay outputs provide independent channels for run indication, fault signaling, and ready status — the three most common discrete outputs required by upstream SCADA systems and safety relay modules. Having all three on a single option module eliminates the need for an additional I/O relay module in the panel.
• Diagnostic Transparency via Drive Parameter Monitoring: The state of all RDIO-01 I/O channels is readable in real time through the drive’s parameter monitoring interface. Maintenance personnel can verify input signal states and relay output states from the drive’s HMI panel or via fieldbus without physical access to the terminal strip — a significant advantage in enclosed or elevated panel installations.
• Compatibility Across Multiple ACS Drive Generations: The RDIO-01 is compatible with ACS355, ACS550, ACS800, ACS880, and DCS800 platforms. This cross-generation compatibility allows plant engineers to standardize on a single I/O extension module across multiple drive types in the same facility, simplifying spare parts inventory and technician training requirements.
• Reduced Panel Footprint vs. External I/O Solutions: Mounting the RDIO-01 in the drive’s option slot eliminates the need for a separate DIN-rail mounted I/O terminal block, its associated wiring, and the panel space it would occupy. In high-density MCC designs where panel space is constrained, this integration approach can reduce the required panel width by one to two module positions.
• Firmware Auto-Detection on Power-Up: Upon drive power-up, the drive firmware automatically detects the RDIO-01 in the option slot and activates the corresponding parameter groups. There is no manual module registration or firmware upload procedure. If the module is removed or fails, the drive generates a specific fault code identifying the option slot issue — enabling rapid fault isolation without manual I/O continuity testing.

Quality Assurance & Global Logistics

Genuine ABB Origin: Every RDIO-01 unit supplied through siemensplc.com is sourced from verified ABB authorized distribution channels and authenticated OEM surplus inventory. Each unit carries ABB’s original part number labeling, holographic authenticity markings where applicable, and is cross-referenced against ABB’s published hardware documentation to confirm part revision and production batch consistency.

Pre-Shipment Inspection Protocol: Prior to dispatch, each module undergoes a structured inspection sequence: visual examination of PCB, connector pins, and relay contact surfaces for mechanical damage; label verification against ABB part number databases; and functional continuity verification of relay contact circuits using calibrated test equipment. Units that do not pass all inspection criteria are quarantined and not shipped.

ESD-Safe Packaging: All modules are packed in anti-static ESD shielding bags, placed in foam-lined cartons, and sealed with tamper-evident tape. For international shipments, outer cartons are reinforced to withstand standard air freight handling loads. Original ABB packaging is preserved where available.

Export Documentation: Every international shipment includes a commercial invoice, detailed packing list, and certificate of origin (COO) prepared in compliance with destination country customs requirements. HS code classification is provided for customs clearance. For customers requiring additional documentation (material safety data, RoHS declaration, or test reports), these are available upon request prior to shipment.

Logistics from Xiamen, China: Warehouse and dispatch operations are based in Xiamen, Fujian Province — a major international logistics hub with direct access to DHL Express, FedEx International Priority, and UCP air freight services. Standard in-stock orders are dispatched within 1–3 business days. Express delivery to most destinations in Europe, North America, Southeast Asia, and the Middle East is achievable within 3–7 business days from dispatch. Sea freight consolidation is available for bulk orders where air freight cost is a constraint.

12-Month Warranty: All units carry a 12-month replacement warranty against manufacturing defects from the date of shipment. Warranty claims are processed with a target response time of 48 hours. Replacement units are dispatched from stock where available; repair or credit note options are provided where direct replacement is not feasible within the customer’s operational timeline.
