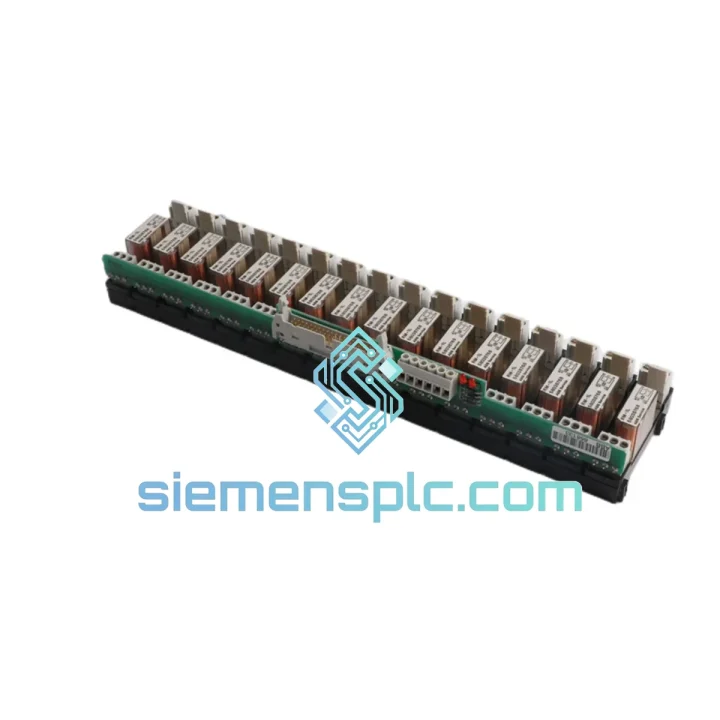

ABB RDO86-16L Relay Output Module

ABB RDO86-16L: 16 Relay Channels Down — Every Second Costs You Money

Your AC500 DCS rack just flagged a relay output fault. One bad module and you’ve lost control of 16 field devices — valves stuck, contactors frozen, alarm circuits dark. The RDO86-16L is the module that bridges your control logic to the physical world, and when it fails, that bridge collapses. We have it on the shelf in Xiamen. Same-day dispatch. That’s the conversation that matters right now.

We’ve pulled failed RDO86-16L units from water treatment plants, chemical batch lines, and power substation auxiliary panels. The failure pattern is consistent: relay coil driver burnout from sustained inductive switching, or contact welding from an upstream short that the protection didn’t catch fast enough. Either way, the fix is a direct module swap — and the clock is running.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the module, nail down the failure mode. The RDO86-16L fails in three distinct patterns — each has a different root cause and a different verification step before you power back up.

1. Relay Contact Welding — Partial or Total Output Loss
Inductive loads — motor contactors, solenoid valves — generate back-EMF spikes on de-energization. Without adequate suppression (RC snubbers or flyback diodes on the field side), these spikes exceed the relay contact arc rating and weld the contacts closed. Symptom: one or more outputs stuck ON regardless of CPU command. Verify with a continuity check across the suspect channel’s terminal block with the module powered down. If contacts are welded, the module is condemned — but also check your field wiring for missing suppression before installing the replacement, or you’ll weld the new one too.

2. Relay Coil Driver Failure — Output Stuck OFF
The coil driver circuit (typically a transistor or MOSFET stage between the I/O bus logic and the relay coil) can fail open from sustained overcurrent or thermal stress. Symptom: CPU shows output commanded ON, but relay LED indicator is dark and field device doesn’t respond. Confirm the CPU output register is actually writing a ‘1’ to that channel — use the AC500 diagnostic tool in Automation Builder to read the output image table live. If the register shows ON but the relay doesn’t pull in, the driver stage is dead. Replace the module.

3. I/O Bus Communication Fault — Module Not Recognized
The RDO86-16L auto-addresses on the AC500 S500 I/O bus — no DIP switches, no manual slot configuration. The CPU assigns the module address based on its physical slot position in the rack. If you’re seeing a configuration mismatch alarm after replacement, verify the new module is seated in the exact same slot as the failed unit. If you’ve moved it, update the hardware configuration in Automation Builder and re-download. Firmware compatibility: the RDO86-16L does not carry user-upgradeable firmware — it’s a passive relay output unit. No firmware flashing required.

Replacement Procedure — Step by Step:

• Isolate the AC500 rack from field power. The I/O bus may support hot-swap in some configurations, but with relay output modules driving live field circuits, de-energize the field side first. Verify zero voltage on all terminal block connections before touching wiring.
• Photograph the terminal block wiring before disconnection. The RDO86-16L has 16 channels — mislabeled or transposed wires after reinstallation will cause incorrect field device operation and potentially unsafe conditions.
• Remove the terminal block connector (it unplugs as a unit on most AC500 I/O modules). Slide the module out of the rack. Seat the replacement module in the same slot. Reconnect the terminal block.
• Power up the rack. The AC500 CPU will auto-detect the module in its slot. In Automation Builder, go online and verify the module appears in the hardware tree without fault indicators. Check the I/O bus diagnostic page for any slot errors.
• Force-test each output channel individually using the Automation Builder force table before handing back to operations. Confirm field device response for all 16 channels. Document the test results — your maintenance log will thank you at the next audit.

Reliability in Harsh Conditions

The RDO86-16L was engineered for process industry environments where “harsh” is the baseline, not the exception. ABB’s AC500 I/O platform carries IEC 61131-2 compliance, which sets the environmental floor for industrial control hardware — and the RDO86-16L meets it across the board.

Vibration resistance is tested per IEC 60068-2-6, covering sinusoidal vibration profiles up to 150 Hz — the frequency range generated by rotating machinery, compressor skids, and pump stations where AC500 systems are routinely installed. The module’s PCB assembly uses conformal coating on production variants, providing a barrier against condensation, salt fog, and airborne particulates including metallic dust from motor brush wear and hydraulic oil mist in steel and paper mill environments.

Thermal performance is validated across the full -25°C to +60°C operating range. In practice, control panel interiors in tropical climates without active cooling routinely hit 50–55°C ambient — the RDO86-16L operates within spec at these temperatures without derating. The relay coils and contact assemblies are rated for millions of mechanical switching cycles under nominal resistive load, with electrical life dependent on load type and current magnitude per the ABB derating curves.

Units shipped from our Xiamen warehouse are inspected for physical integrity — PCB condition, connector pin alignment, terminal block seating, and relay coil resistance spot-check on suspect units. New OEM units ship in original ABB anti-static packaging. Surplus-new units are repackaged in ESD bags with desiccant and humidity indicator cards, sealed for transit.

Global Express Logistics

Xiamen is one of China’s primary export hubs — direct DHL, FedEx, and UPS international express access, with export customs clearance handled on our end. Here’s the exact sequence from your order to your hands:

• Order Confirmation → Pick & Pack: Within 2 hours of payment. Module individually bubble-wrapped, ESD-bagged, packed in rigid outer carton with foam inserts. No movement in transit.
• Export Documentation: Commercial invoice, packing list, HS code declaration (HS 8537.10) prepared same day. We handle Xiamen export customs — no delays on our side.
• Transit Times from Xiamen: Europe 3–5 business days | North America 4–6 business days | Southeast Asia 1–3 business days | Middle East 3–5 business days | Australia 3–5 business days.
• Tracking: AWB number delivered within 4 hours of dispatch via email and WhatsApp. Real-time carrier tracking link included.
• Incoterms: DDP or DAP available depending on destination and customer preference. We can advise on import duty exposure for your country before you commit.

Emergency shipments to Germany, India, Brazil, Saudi Arabia, and Australia are routine for us. The logistics chain is optimized. Your focus should be on the installation — we handle everything up to your receiving dock.
