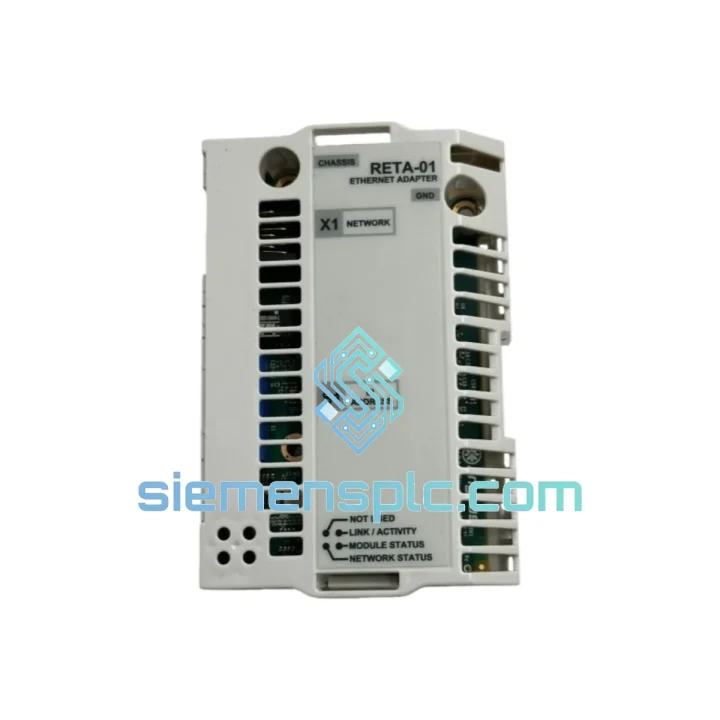

ABB RETA-01 Drive Communication Adapter – ACS800 Series

ABB RETA-01 — Ethernet Protocol Gateway Embedded in the ACS800 Option Slot Architecture

The RETA-01 is ABB’s factory-engineered Ethernet communication adapter designed exclusively for the ACS800 series of AC variable-frequency drives. Its structural role within a closed-loop control system is to act as a bidirectional protocol bridge between a plant-level IEEE 802.3 Ethernet network and the drive’s internal DDCS (Distributed Drives Communication System) fiber-optic ring — without introducing any latency coupling between the two domains. This architectural separation is not incidental; it is the defining characteristic that makes the RETA-01 suitable for process-critical applications where drive inner-loop response time must remain deterministic regardless of network traffic conditions.

In practical terms, the adapter mounts directly into the ACS800’s dedicated option slot, draws its operating power from the drive’s internal 5 VDC bus, and presents a standard RJ-45 10/100BASE-TX interface to the plant network. From the network side, the drive appears as a conventional Modbus TCP slave device or, via firmware selection, as an EtherNet/IP adapter. The RETA-01’s onboard processor handles all frame reception, register mapping, and DDCS encapsulation autonomously. The ACS800 main control board sees only clean, validated parameter read/write commands arriving over the fiber link — it has no exposure to Ethernet-layer events such as TCP retransmissions, ARP broadcasts, or VLAN tagging overhead.

For system integrators working in water treatment, oil and gas compression, pulp and paper processing, or chemical dosing applications, this isolation characteristic translates directly into measurable engineering value. A SCADA host polling the RETA-01 at 100 ms intervals for speed feedback, torque actual, DC bus voltage, output current, and fault status does not compete with the drive’s 2 ms torque control task for CPU bandwidth. The two execution domains are physically separated by the fiber interface, and the adapter’s internal scheduler manages the boundary between them.

The RETA-01 also eliminates the need for external protocol converters or gateway PLCs in multi-drive installations. When multiple ACS800 drives are chained on a DDCS fiber ring, a single RETA-01 installed in the master drive can serve as the network entry point for the entire ring, with the master forwarding parameter requests to downstream drives via the DDCS token-passing protocol. This topology reduces Ethernet switch port consumption and simplifies network segmentation in large motor control centers.

From a commissioning standpoint, the adapter supports auto-negotiation on the Ethernet port and automatic DDCS node address assignment, eliminating manual DIP switch configuration. Firmware updates are delivered over the Ethernet connection using ABB Drive Composer or DriveStudio, meaning the module does not need to be physically removed from the drive during maintenance cycles. These characteristics reduce per-drive commissioning time and lower the total cost of ownership across the service life of the installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RETA-01’s internal processing architecture assigns all Ethernet frame handling to a dedicated communication processor that operates independently of the ACS800 main control board. When a Modbus TCP master transmits a read request targeting, for example, parameter 01.02 (Motor Speed), the RETA-01 receives the TCP segment, validates the Modbus application data unit, maps the register address to the corresponding DDCS parameter index, and issues a DDCS read command over the fiber link. The drive’s main board responds with the parameter value, which the adapter encapsulates into a Modbus TCP response frame and returns to the requesting master. At no point does the ACS800’s real-time control task scheduler participate in this transaction. The drive’s 2 ms torque control interrupt runs unaffected.

The Ethernet port’s RJ-45 connector incorporates a magnetically isolated pulse transformer, providing galvanic separation between the plant network and the adapter’s internal circuitry. This isolation is rated to withstand common-mode transient voltages consistent with IEC 61000-4-5 Level 3 surge testing (±2 kV line-to-earth, 1.2/50 µs waveform). In high-power drive cabinets where IGBT switching events generate dV/dt transients of several hundred volts per microsecond on cabinet ground planes, this isolation prevents conducted interference from coupling into the Ethernet physical layer and corrupting TCP sessions.

On the drive side, the DDCS fiber-optic interface eliminates ground loop risk entirely. Plastic optical fiber carries the communication signal between the RETA-01 and the ACS800 main control board with no electrical continuity between the two nodes. This is particularly significant in installations where the drive cabinet and the control room housing the SCADA server are separated by distances that would otherwise create measurable ground potential differences — a common condition in large industrial facilities with distributed earthing systems.

When multiple ACS800 drives are connected in a DDCS ring topology, the RETA-01 in the master drive manages token-passing arbitration across all nodes. Each drive on the ring is assigned a unique DDCS node address, and the master adapter cycles through parameter requests to each node in sequence. If a downstream drive loses power or its fiber connection is interrupted, the ring’s arbitration logic detects the missing token within one polling cycle and flags the affected node as offline in the Modbus TCP fault register — without halting communication to the remaining drives. This fault isolation behavior is implemented in the adapter’s firmware and requires no configuration by the integrator.

System Integration Benefits

• Control loop isolation: The fiber-optic DDCS interface physically separates Ethernet network events from the drive’s real-time torque and speed control tasks, preserving deterministic inner-loop response at all network load conditions.
• Full parameter register access: Speed actual, torque actual, DC bus voltage, output current, power, fault codes, and all ACS800 configuration parameters are mapped to standard Modbus TCP holding registers — no proprietary software or OPC server required for SCADA integration.
• EtherNet/IP native support: Firmware-selectable EtherNet/IP adapter mode enables direct integration with Rockwell Automation ControlLogix and CompactLogix PLCs via standard Add-On Profile, eliminating external gateway hardware.
• Multi-drive ring efficiency: A single RETA-01 can serve as the Ethernet entry point for an entire DDCS fiber ring of multiple ACS800 drives, reducing managed switch port requirements and simplifying network architecture in large motor control centers.
• Zero external power wiring: The module draws operating power from the drive’s option slot bus, removing the need for a separate 24 VDC supply circuit, reducing panel wiring complexity and eliminating an additional failure point.
• In-situ firmware maintenance: Firmware updates are applied over the Ethernet connection using ABB Drive Composer without removing the module from the drive, reducing planned maintenance downtime to the duration of the firmware flash cycle.
• Fault transparency to SCADA: Drive fault and warning codes are forwarded to Modbus holding registers in real time, enabling SCADA alarm management systems to log, timestamp, and escalate drive faults without operator intervention at the local keypad.
• Rapid field commissioning: Auto-negotiation on the Ethernet port and automatic DDCS node address assignment eliminate manual switch configuration; a trained technician can complete per-drive network commissioning in under 15 minutes.
• Standard network infrastructure compatibility: The adapter operates with any IEEE 802.3-compliant managed or unmanaged switch; no proprietary network hardware is required, allowing integration into existing plant LAN segments without infrastructure changes.
• Visual diagnostic indicators: Onboard LED status indicators for Ethernet link, network activity, and DDCS fault state allow field technicians to isolate communication faults at the drive cabinet without connecting a laptop or HMI.

Quality Assurance & Global Logistics

Each RETA-01 unit dispatched from siemensplc.com is sourced through verified ABB-authorized distribution channels or authenticated OEM surplus inventory with full traceability documentation. Before packaging, every module passes a structured pre-shipment inspection: firmware version is confirmed against ABB’s published release matrix; PCB and connector condition is inspected under magnification for mechanical damage or oxidation; label authenticity and serial number format are cross-referenced against ABB’s part numbering conventions; and a functional self-test confirms Ethernet link establishment and DDCS communication handshake with a reference ACS800 drive.

Modules are packed in anti-static ESD shielding bags with desiccant sachets and humidity indicator cards, then secured in rigid foam-lined export cartons rated for IATA air freight handling standards. Complete export documentation — commercial invoice, packing list, Certificate of Origin (People’s Republic of China), and pre-shipment inspection report — is prepared for every order and provided on request for customs clearance, procurement audit, or project documentation purposes.

All shipments originate from our warehouse in Xiamen, Fujian Province, China. Standard international delivery via DHL Express or FedEx International Priority reaches destinations across Europe, North America, Southeast Asia, the Middle East, and Australia within 3–7 business days from dispatch confirmation. Orders confirmed before 14:00 CST are eligible for same-day dispatch. For project-volume procurement or recurring supply agreements, sea freight consolidation and door-to-door 3PL coordination are available upon request. A tracking number is issued at the time of dispatch and shared with the buyer via email.
