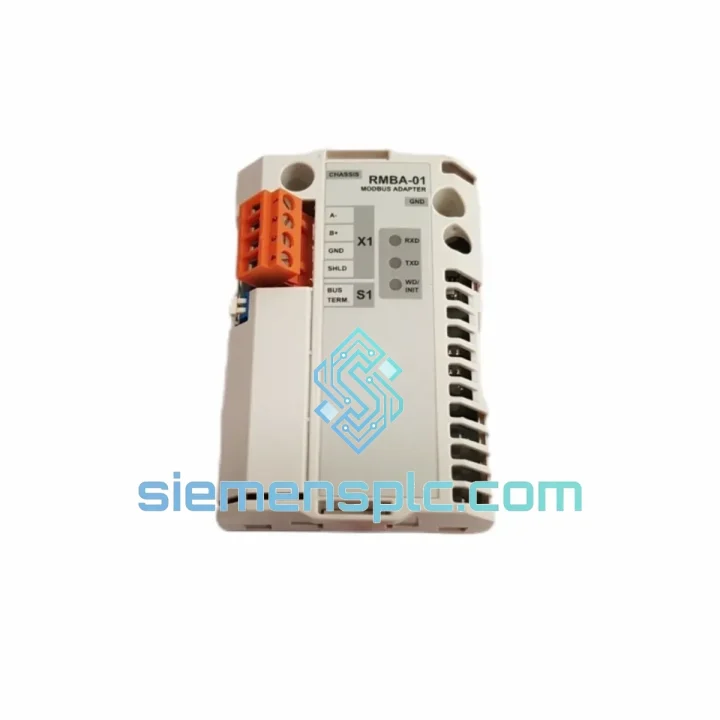

ABB RMBA-01 Fieldbus Communication Adapter – ACS Series

ABB RMBA-01: RS-485 Modbus RTU Fieldbus Adapter in ACS Drive Control Architecture

The ABB RMBA-01 is a plug-in fieldbus communication adapter engineered for ABB ACS-series variable frequency drives. Its primary function within a control loop is to translate Modbus RTU frames transmitted over an RS-485 physical layer into the drive’s internal parameter bus commands — enabling a PLC or SCADA master to exercise deterministic control over motor speed reference, torque limit, direction, and fault acknowledgment without any intermediate protocol gateway. In process-critical environments where communication latency directly affects closed-loop stability, the RMBA-01’s native integration into the drive’s option slot eliminates the jitter and handshake overhead that external converters introduce.

Unlike generic RS-485-to-drive converters, the RMBA-01 interfaces directly with ABB’s internal fieldbus channel, mapping Modbus holding registers to the drive’s control word (CW), status word (SW), and reference/actual value registers in accordance with ABB Drives Profile or the generic fieldbus profile — selectable via drive parameter group 51. This direct register mapping means the PLC write cycle to the drive control word propagates within a single Modbus RTU transaction, with no buffering layer between the adapter and the drive’s DSP control core.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Option Slot Bus Architecture
The RMBA-01 connects to the drive’s internal option slot via a proprietary 26-pin edge connector that carries both the low-voltage power rail (3.3 V logic, 5 V I/O) and the drive’s internal serial parameter bus. This bus operates independently of the main power stage, meaning the adapter remains powered and communicating even during drive fault states — a critical property for SCADA systems that must read fault registers without cycling drive power.

RS-485 Transceiver and EMC Design
The RS-485 transceiver on the RMBA-01 implements differential signaling with a common-mode voltage range of −7 V to +12 V, providing inherent rejection of ground-loop noise common in industrial cable trays. The PCB layout routes the RS-485 differential pair with controlled impedance (100 Ω differential) and places TVS diode arrays at the terminal block to clamp transient voltages from inductive switching events on adjacent cable runs. This design meets IEC 61000-4-4 (EFT/Burst) and IEC 61000-4-5 (Surge) immunity levels without requiring external surge protectors in most standard panel installations.

Protocol State Machine
The adapter’s firmware implements a Modbus RTU slave state machine with inter-frame gap detection based on the 3.5-character silence rule defined in the Modbus specification. Frame validation includes CRC-16 (polynomial 0x8005) verification before any register write is forwarded to the drive parameter bus. Invalid frames are silently discarded — no exception response is generated for CRC errors, consistent with Modbus RTU specification behavior. This prevents bus contention in noisy environments where partial frames may appear.

Register Mapping and Profile Selection
Two communication profiles are supported. The ABB Drives Profile maps the 16-bit control word to ABB-specific bit definitions (bit 0: ON/OFF1, bit 3: Enable Operation, bit 6: Reset Fault, etc.), while the Generic Profile follows a simplified subset compatible with third-party PLC libraries. Profile selection is made via drive parameter 98.07 (or equivalent in the target drive series), requiring no hardware modification to the RMBA-01 itself.

System Integration Benefits

• Zero-gateway latency: Direct option slot integration removes the protocol translation delay of external RS-485-to-Ethernet or RS-485-to-USB converters, reducing PLC-to-drive command propagation to a single Modbus RTU transaction cycle.
• Deterministic scan-cycle alignment: At 9,600 bps with a 16-register read/write transaction, the total bus time per node is under 20 ms — compatible with 50 ms PLC scan cycles on multi-node networks of up to 32 drives.
• Full parameter transparency: All drive control words, status words, speed references, actual values, and fault codes are accessible via standard Modbus holding register reads, enabling SCADA historians to log drive state without proprietary software.
• Fault register readback during drive fault: Because the option slot bus remains energized during drive fault conditions, the PLC can read fault code registers (e.g., parameter 3.03 Last Fault) without requiring a drive reset — supporting root-cause analysis workflows.
• Multi-drive topology support: RS-485 multi-drop allows a single PLC serial port to address up to 32 RMBA-01-equipped drives on one segment, reducing wiring cost and PLC I/O card count in multi-motor applications.
• No external power wiring: The adapter draws operating power from the drive option slot, eliminating the need for a separate 24 VDC supply circuit in the control panel — simplifying panel layout and reducing potential ground loop paths.
• Profile-agnostic PLC compatibility: The Generic Fieldbus Profile mode allows the RMBA-01 to be addressed by Siemens S7, Mitsubishi Q/iQ-R, Rockwell ControlLogix, and Schneider Modicon PLCs using standard Modbus function block libraries without ABB-specific add-on instructions.
• Commissioning via drive keypad: All adapter parameters (baud rate, node address, parity, profile) are set through the drive’s standard parameter interface — no laptop, USB adapter, or proprietary commissioning tool is required for initial setup.
• Scalable network expansion: Standard RS-485 repeaters extend the bus beyond the 32-node / 1,200 m base limit, allowing the same RMBA-01 hardware to serve in both small standalone installations and large distributed motor control centers.

Quality Assurance & Global Logistics

Every RMBA-01 unit dispatched from our Xiamen, China facility is sourced as genuine ABB OEM hardware through verified supply channels. Prior to shipment, each module undergoes a three-stage inspection: visual examination of PCB and connector condition, label and serial number cross-verification against ABB’s part numbering convention, and packaging integrity check to confirm original ABB anti-static bag and carton sealing. Units that do not pass all three stages are quarantined and not dispatched.

Packaging uses ABB’s original anti-static foam insert and outer carton, preserving the module’s ESD-sensitive components during transit. Each shipment includes a packing list with the unit serial number for traceability. A 12-month replacement warranty covers manufacturing defects from the date of dispatch; warranty claims are processed within 5 business days of defective unit receipt.

International logistics are handled via DHL Express, FedEx International Priority, and SF Express International, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Full commercial invoice, packing list, and HS code documentation (HS 8537.10) are prepared for every international shipment to facilitate customs clearance. For project orders requiring consolidated shipment or specific Incoterms (FOB Xiamen, CIF destination), contact the sales team directly for freight arrangement.

Bulk procurement (5+ units) and standing purchase orders are accommodated with reserved stock allocation and scheduled release scheduling. Lead time for standard stock items is 1–3 business days; for non-stock configurations, estimated availability is communicated within 24 hours of RFQ receipt.
