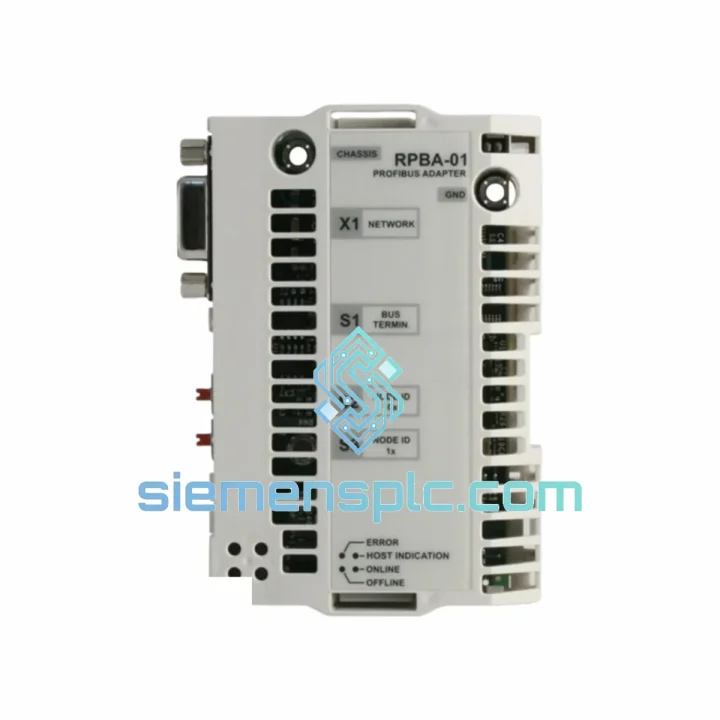

ABB RPBA-01 Fieldbus Adapter Module – ACS/ACS800 Series

ABB RPBA-01: PROFIBUS DP Fieldbus Adapter for ACS/ACS800 Variable Frequency Drives

The RPBA-01 is ABB’s factory-designated PROFIBUS DP communication adapter engineered for direct integration into the ACS and ACS800 series variable frequency drive platforms. Mounted into the drive’s dedicated option slot on the control board, the module establishes a deterministic, cyclic data link between the drive and any PROFIBUS DP Class 1 master — including Siemens S7-300/400/1500, Schneider Modicon M340/M580, Rockwell ControlLogix with PROFIBUS scanner cards, and ABB AC500 PLCs. By replacing analog reference wiring with a standardized digital fieldbus, the RPBA-01 eliminates signal degradation over long cable runs, reduces panel wiring density, and enables full parameter-level access from the master controller without additional hardware.

The module operates across the full PROFIBUS DP baud rate range — from 9.6 kbit/s to 12 Mbit/s — with automatic baud rate detection. No manual DIP switch or parameter configuration is required for speed selection; the adapter synchronizes to the network master’s broadcast rate within the standard PROFIBUS initialization sequence. This behavior is particularly valuable in retrofit projects where the existing network baud rate is fixed and cannot be changed without affecting other nodes.

Beyond cyclic DP-V0 data exchange, the RPBA-01 supports DP-V1 acyclic messaging, which allows the PROFIBUS master to read and write individual ABB drive parameters outside the cyclic data window. This capability is used for remote commissioning, condition monitoring, and fault diagnostics without requiring a separate point-to-point connection to the drive’s RS-485 service port. In process plants with dozens of drives distributed across a PROFIBUS segment, DP-V1 access significantly reduces maintenance labor by enabling parameter changes from the control room HMI or engineering workstation.

The PROFIBUS interface is galvanically isolated from the drive’s internal power circuits. This isolation barrier protects the PROFIBUS network from common-mode voltage transients generated by the drive’s PWM switching stages, which can reach several hundred volts in high-power ACS800 units. Without this isolation, ground potential differences between drive cabinets and PLC panels — common in large industrial installations — would introduce noise onto the PROFIBUS cable and cause intermittent communication faults. The RPBA-01’s isolation design conforms to the EMC requirements of EN 61800-3 Category C2/C3 environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RPBA-01’s internal architecture centers on a dedicated PROFIBUS ASIC — a purpose-built silicon layer that handles the full PROFIBUS DP protocol stack in hardware, offloading all telegram framing, CRC calculation, and timing from the drive’s main DSP. This design choice is significant: because the PROFIBUS state machine runs in dedicated silicon rather than firmware on a shared processor, the adapter’s response latency to PROFIBUS master poll cycles is deterministic and independent of drive CPU load. In high-cycle-rate applications where the PROFIBUS master polls at 1 ms intervals, this hardware-level determinism prevents missed telegram windows that would otherwise trigger watchdog faults on the master side.

The galvanic isolation stage uses a transformer-coupled data path with a rated isolation voltage sufficient to withstand the common-mode transients present in ACS800 installations up to 690 V AC input. The isolation barrier is placed between the PROFIBUS D-Sub connector and the internal ASIC, meaning the entire PROFIBUS cable side — including the termination resistors and cable shield — is floating relative to the drive’s PE reference. This architecture prevents ground loop currents from flowing through the PROFIBUS cable shield, a failure mode that is responsible for a significant proportion of PROFIBUS communication instability in multi-drive installations.

The PPO (Parameter Process data Object) engine within the RPBA-01 maps PROFIBUS data words directly to ABB drive control and status registers. The mapping is configurable via ABB drive parameter group 51, allowing the integrator to select which drive parameters appear in the cyclic data window. This flexibility means the same RPBA-01 hardware can be configured for simple speed reference / status feedback applications (PPO Type 3, 4 words) or for complex torque-control applications requiring multiple setpoints and actual values (PPO Type 1, 10 words), without any hardware modification.

System Integration Benefits

• Deterministic cycle time: Hardware PROFIBUS ASIC guarantees sub-millisecond response to master poll cycles, supporting tight motion coordination across multi-drive segments without jitter-induced speed deviations.
• Elimination of analog signal chains: Replacing 4–20 mA speed references with PROFIBUS digital setpoints removes the error sources inherent in analog circuits — offset drift, noise pickup, and A/D conversion nonlinearity — improving speed regulation accuracy at the drive output.
• Remote parameter access via DP-V1: Engineering workstations and SCADA systems can read and modify drive parameters acyclically over the existing PROFIBUS cable, eliminating the need for a technician to physically access the drive cabinet for routine parameter adjustments.
• Diagnostic transparency: Drive fault codes, warning states, and operational status words are continuously available in the PROFIBUS cyclic data, enabling the PLC program to implement structured fault handling and alarm management without polling a separate diagnostic channel.
• Scalable network topology: Up to 32 nodes per PROFIBUS segment (126 with repeaters) can include RPBA-01-equipped drives, allowing large multi-drive systems to be managed from a single PROFIBUS master without additional fieldbus infrastructure.
• Reduced commissioning time: Auto baud rate detection and GSD-file-based PLC configuration eliminate manual speed setting and reduce drive network commissioning to parameter group 51 entry — typically under 15 minutes per drive.
• Compatibility with standard PROFIBUS masters: The RPBA-01 GSD file is compatible with all major PLC engineering tools including Siemens TIA Portal / STEP 7, Schneider Unity Pro, Rockwell RSNetWorx, and ABB Automation Builder, ensuring no proprietary toolchain dependency.
• Watchdog protection: The RPBA-01 implements a configurable PROFIBUS watchdog timer. If the master fails to poll within the watchdog interval, the adapter signals the drive to execute a configurable safe-state action (coast stop, ramp stop, or hold last setpoint), preventing uncontrolled drive behavior during network interruptions.
