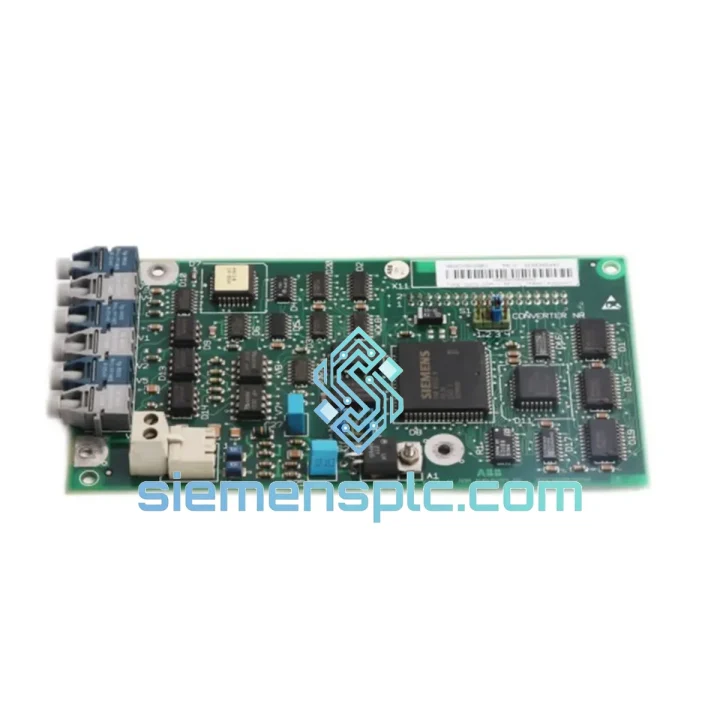

ABB SDCS-COM-1 3BSE005028R1 Drive Link Board

ABB SDCS-COM-1 3BSE005028R1: Cut the Downtime, Restore the Drive Link Now

Your DCS800 just dropped off the network. The fieldbus is dead, the control room has lost visibility, and production is bleeding money by the minute. You’ve traced the fault — it’s the SDCS-COM-1 Drive Link board. Every hour this slot sits empty costs you more than the part itself. We stock the ABB SDCS-COM-1 3BSE005028R1 precisely for this moment: verified, packed, and ready to leave Xiamen on the next available DHL or FedEx flight.

The SDCS-COM-1 is ABB’s dedicated DDCS (Drive Link) option board for the DCS800 DC drive platform. It occupies the drive’s option slot and handles all high-speed fiber-optic communication between the drive and the upstream controller — whether that’s an AC800M, AC500, or a third-party master using the DDCS protocol. When this board fails, the drive doesn’t just lose remote control; it loses torque reference, speed feedback, and fault reporting. The entire closed-loop chain breaks. Replacing it is not optional — it’s the only path back to production.

We’ve shipped this exact board to paper mills in Scandinavia, rolling mills in Southeast Asia, and marine propulsion systems in the Middle East. The pattern is always the same: the plant waited too long to stock a spare, and now they’re paying premium freight to fix a problem that a $300 spare could have solved in 20 minutes. Don’t be that plant.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Codes That Point to SDCS-COM-1 Failure:

• F-0022 / A-0022 (DDCS Link Fault): The drive has lost communication on the DDCS channel. First check fiber cables and connectors — a cracked fiber or dirty ferrule causes 40% of these faults. If cables are clean and intact, the board itself is the suspect.
• F-0023 (Dataset Timeout): The master controller stopped receiving cyclic datasets from the drive. Often triggered by a board that’s partially functional — it powers up but can’t sustain the DDCS handshake under load.
• A-0021 (DDCS Ring Fault): Indicates a break in the DDCS ring topology. Isolate the DCS800 from the ring and test point-to-point. If the fault clears, the board’s ring-pass-through function has failed.

Step-by-Step Replacement Procedure:

1. Safe isolation first. Lock out / tag out the DCS800 drive. Verify DC bus voltage is below 50 V with a calibrated meter before opening the drive door. The DC bus capacitors hold charge for several minutes after power-off — do not skip this step.
2. Document the existing configuration. Before removing the board, use DriveWindow or the drive keypad to export the current parameter set (Group 51 — DDCS Control, Group 70 — Master/Follower). Note the node address set on the board’s DIP switches (SW1). Photograph the fiber cable routing and connector labels.
3. Remove the faulty board. Disconnect fiber-optic cables from CH1 and CH2 — cap them immediately with dust plugs to protect the ferrules. Release the board’s retaining latch and slide it out of the option slot. Handle by edges only; avoid touching the PCB surface.
4. Configure the replacement board before installation. Set the DIP switch (SW1) on the new SDCS-COM-1 to match the node address documented in Step 2. The default factory setting is node address 1 — if your system uses a different address, set it now. Incorrect node addressing is the single most common cause of a failed board swap.
5. Install and reconnect. Slide the new board into the option slot until the latch clicks. Reconnect fiber cables to CH1 and CH2 in the original orientation. Verify connector seating — a half-inserted fiber connector will cause intermittent DDCS faults that are extremely difficult to diagnose.
6. Power up and verify. Restore power to the drive. Navigate to Parameter 70.01 (Master Node Address) and confirm the drive recognizes the master controller. Check that datasets are cycling correctly in Group 51. Clear any latched faults with a fault reset command from the master. Run the drive at low speed under no load before returning to full production.
7. Firmware check. If the drive firmware is below version 5.x, verify that the SDCS-COM-1 hardware revision is compatible. Revision C and later boards are compatible with all DCS800 firmware versions from 4.x onward. The hardware revision is printed on the board label.

Pro tip from the field: If the replacement board powers up but the DDCS link still won’t establish, check the fiber cable bend radius. DDCS fiber is plastic optical fiber (POF) — bend it tighter than 25 mm and the signal degrades below the receiver threshold. A cable that looks fine visually can be optically dead.

Reliability in Harsh Conditions

The DCS800 platform was designed for the worst environments in heavy industry, and the SDCS-COM-1 is built to the same standard. The PCB uses conformal coating on critical signal traces, providing resistance to condensation and airborne contaminants common in paper mills and chemical plants. The fiber-optic interface is inherently immune to electrical noise — no matter how much EMI your SCR thyristor stacks or motor cables generate, the DDCS signal arrives clean.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges typical of compressor rooms, rolling mill floors, and marine engine rooms. The board’s connector system uses positive-latch retention — it won’t work loose under the sustained vibration that kills edge-card connections on cheaper option boards.

Thermal cycling is the silent killer of drive electronics. The SDCS-COM-1’s component selection accounts for the daily temperature swings inside a drive cabinet — cold startup in a winter morning, full thermal load by midday. Components are rated for a minimum of 20,000 thermal cycles, which translates to decades of service in a properly maintained drive installation. When you see a board fail after 10–15 years, it’s usually a capacitor at end-of-life, not a design weakness — and that’s a testament to how well the original engineering was done.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental: it puts us within 24–48 hours of most major industrial centers in Asia, and within 72–96 hours of Europe and the Americas via express air freight.

Standard dispatch process:

• Orders confirmed before 14:00 CST are dispatched same business day.
• Each shipment is packed in a double-wall carton with anti-static ESD bag, foam insert, and desiccant pack. The board arrives in the same condition it left our warehouse.
• DHL Express and FedEx International Priority are our primary carriers. Both provide door-to-door tracking and customs clearance support.
• Typical transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days.
• For genuine plant emergencies, we can arrange same-day courier handoff to the airport for the earliest available flight. Contact us directly on WhatsApp for emergency logistics coordination.
• Commercial invoice, packing list, and certificate of conformity are included with every shipment. HS code documentation is provided for smooth customs clearance.

We’ve shipped to 40+ countries. We know the customs requirements, the restricted-item classifications, and the documentation that gets your package through without delays. When your line is down, the last thing you need is a shipment stuck in customs because of a paperwork error.
