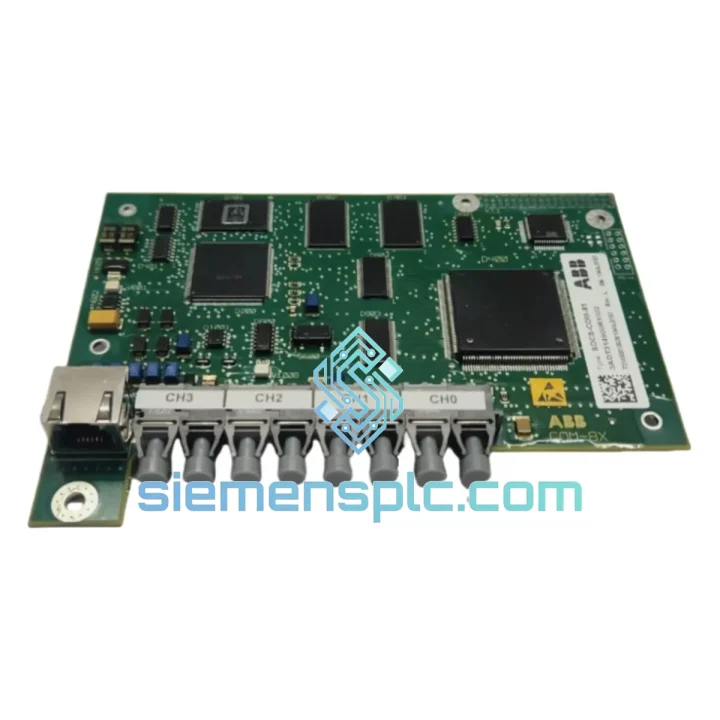

ABB SDCS-CON-81 3ADT314900R1002 Control Interface Module – DCS800 Series

ABB SDCS-CON-81 3ADT314900R1002 — Main Control Interface Board for DCS800 DC Drive Systems

The SDCS-CON-81, carrying ABB factory part number 3ADT314900R1002, is the primary control interface module of the DCS800 fully digital DC drive platform. It functions as the computational and signal-processing core of the drive: executing closed-loop armature current regulation, managing field excitation sequencing, processing encoder feedback, and maintaining the communication bridge between the drive and higher-level automation architectures. Without this board, the DCS800 drive is non-functional. Its role is not peripheral — it is the control nucleus around which every other hardware layer in the drive cabinet is organized.

The DCS800 series is ABB’s flagship DC drive line, deployed across heavy industry segments including metals processing, pulp and paper, marine deck machinery, and mining hoist systems. These are applications where torque linearity, speed regulation accuracy, and deterministic fault response are not performance targets — they are operational prerequisites. The SDCS-CON-81 is engineered to meet those prerequisites under continuous duty conditions, with no tolerance for control latency or signal ambiguity.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDCS-CON-81 implements a dual-loop control topology: an outer speed loop and an inner armature current loop. The inner current loop operates at a significantly higher sampling rate than the speed loop, which is the standard approach for DC drive control to ensure that current transients — particularly during acceleration ramps or load disturbances — are suppressed before they propagate to the mechanical system. The thyristor firing angle is computed in real time based on the current error signal, with the firing pulse synchronized to the AC supply frequency detected by the board’s zero-crossing circuitry. This synchronization is critical: any phase jitter in the firing pulse directly translates to torque ripple at the motor shaft.

The board’s EMC design addresses two distinct interference vectors. Conducted interference from the thyristor switching transients is managed through onboard filtering on the analog signal paths, preventing high-frequency noise from corrupting the current feedback signals. Radiated interference from the drive cabinet environment is mitigated by the DDCS fiber-optic communication architecture: all data exchange between the SDCS-CON-81 and external controllers travels over optical fiber, which is inherently immune to electromagnetic coupling. This eliminates the ground loop and common-mode noise problems that affect copper-based fieldbus installations in high-power drive environments.

The SDCS-CON-81 also implements a watchdog supervision circuit that monitors the microprocessor execution cycle. If the processor fails to reset the watchdog within the defined interval — indicating a software hang or hardware fault — the board asserts a hardware fault signal that forces the drive to a safe state by disabling thyristor firing. This is a hardware-level safety mechanism independent of the firmware, ensuring that a software failure cannot result in an uncontrolled motor runaway condition.

Parameter storage is handled by non-volatile EEPROM on the board. Drive configuration, tuning parameters, and fault history are retained across power cycles without battery backup. The EEPROM write cycle endurance is rated for the expected service life of the drive, accounting for normal commissioning and parameter adjustment activity.

System Integration Benefits

• Deterministic current loop execution: The inner armature current loop sampling rate is decoupled from the outer speed loop, ensuring current regulation remains stable regardless of speed reference dynamics or load step magnitude.
• Fiber-optic DDCS isolation: All inter-board and controller communication is conducted over optical fiber, eliminating ground potential differences and common-mode interference that are endemic to high-power DC drive installations.
• Modular replacement without drive decommissioning: The SDCS-CON-81 is a plug-in board within the DCS800 cabinet. Replacement does not require disconnection of power cabling or motor leads, reducing mean time to repair (MTTR) to under two hours in most installations.
• Transparent fault diagnostics: The board logs fault codes, fault timestamps, and pre-fault parameter snapshots to onboard memory. This data is accessible via DriveWindow without requiring the drive to be operational, enabling root-cause analysis after a trip event.
• Fieldbus agnosticism via adapter architecture: The SDCS-COM adapter slot allows the same SDCS-CON-81 hardware to interface with PROFIBUS DP, DeviceNet, Modbus RTU, or CANopen networks by swapping the communication adapter board, without any firmware modification to the control board itself.
• Encoder and tachometer redundancy: The board accepts both pulse encoder feedback (via SDCS-PIN-51) and analog tachometer input simultaneously, allowing the control system to be configured for redundant speed feedback with automatic switchover on feedback loss.
• Scalable I/O expansion: The SDCS-IOB-3 and SDCS-IOB-31 I/O extension boards connect directly to the SDCS-CON-81 via the internal SDCS bus, adding analog and digital I/O channels without external wiring between boards, preserving signal integrity.
• Firmware parameter migration: ABB DriveWindow supports parameter file export and import. When replacing an SDCS-CON-81, the full parameter set from the failed board can be uploaded to the replacement unit in minutes, eliminating manual re-commissioning of drive tuning parameters.
• Conformal coating for industrial environments: The PCB conformal coating provides protection against humidity, condensation, and airborne contaminants consistent with IEC 60721-3-3 Class 3C2, suitable for paper mill, chemical plant, and coastal marine environments.
• Thyristor firing synchronization accuracy: Zero-crossing detection circuitry on the board maintains firing angle synchronization to the AC supply with sub-millisecond precision, directly determining the quality of armature current waveform and motor torque smoothness.

Quality Assurance & Global Logistics

Every SDCS-CON-81 3ADT314900R1002 unit supplied by siemensplc.com is sourced through verified ABB-authorized distribution channels. Each board undergoes a structured pre-shipment inspection protocol:

• Part number and revision verification: The board label, PCB silkscreen, and EEPROM-stored firmware version are cross-referenced against ABB’s official part numbering records to confirm authenticity and hardware revision compatibility.
• Visual and mechanical inspection: PCB surface, connector pins, component seating, and conformal coating integrity are inspected under magnification. Boards with any evidence of rework, pin damage, or coating breach are rejected.
• Functional bench test: Where test fixtures are available, boards are powered and subjected to communication handshake verification and I/O signal integrity checks before packaging.
• ESD-safe packaging: All boards are packaged in anti-static bags with desiccant, placed in foam-lined cartons rated for international air freight handling. Moisture barrier packaging is applied for ocean freight shipments.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for all international shipments. HS code classification and customs value documentation are provided as standard.

Shipments originate from our warehouse in Xiamen, China. Standard international transit times are 3–5 business days via DHL Express or FedEx International Priority to most destinations in Europe, North America, Southeast Asia, and the Middle East. Economy freight options are available for non-urgent orders. All shipments are tracked end-to-end with proactive status updates provided to the buyer.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
Web: siemensplc.com
Location: Xiamen, China
