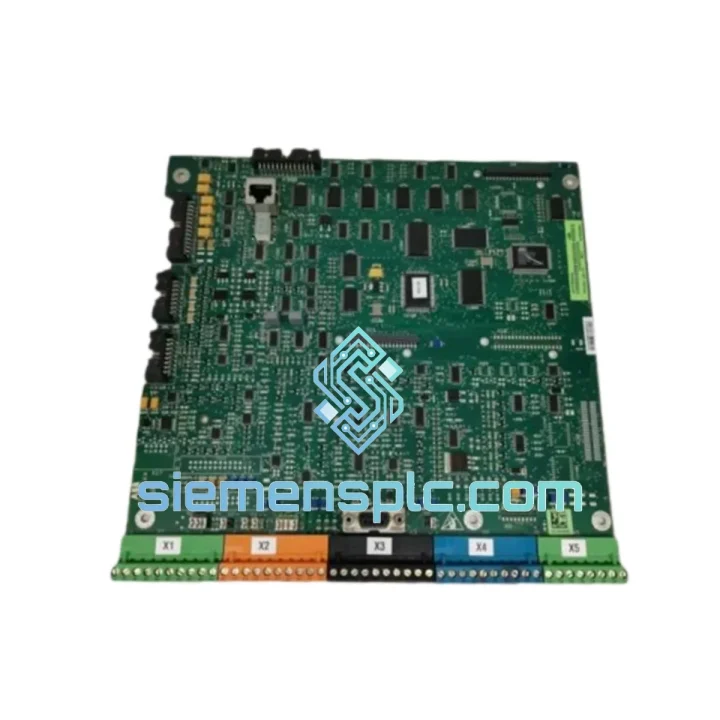

ABB SDCS-CON-F01 3ADT316500R1501 DC Drive Control Board – DCS550 Series

ABB SDCS-CON-F01 (3ADT316500R1501) — Closed-Loop Regulator Board for DCS550 DC Drive Systems

The ABB SDCS-CON-F01, catalog reference 3ADT316500R1501, is the primary digital control and regulation board for ABB’s DCS550 series four-quadrant DC drives. Positioned at the top of the drive’s internal board stack, it executes all closed-loop speed and torque algorithms, manages field excitation sequencing, arbitrates inter-board communication over the SDCS backplane, and exposes the drive’s full parameter set to external commissioning tools. Its removal or failure renders the drive inoperative; no speed or torque regulation is possible without a functioning SDCS-CON-F01 installed.

In a DCS550 control loop, the board receives analog tachometer or encoder feedback on its dedicated input channels, computes armature current demand via a cascaded PI speed regulator, and outputs firing-angle commands to the thyristor gate driver circuitry on the SDCS-POW-4 power board. Field current is regulated independently through the SDCS-FEX-2 field exciter, with the SDCS-CON-F01 issuing field weakening commands above base speed to extend the constant-power operating range. All inter-board signals travel over a 50-pin ribbon connector at 5 V CMOS logic levels, with optical isolation barriers protecting the low-voltage control domain from the high-voltage power domain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDCS-CON-F01 is built around a fixed-point DSP core clocked at sufficient speed to execute the full current-loop update cycle at 3.3 ms intervals — fast enough to maintain stable thyristor firing-angle control across the 50 Hz / 60 Hz supply frequency range without aliasing artifacts. The speed loop executes at a slower 10 ms task rate, consistent with the mechanical time constants of the connected DC motor and load.

Optical isolation architecture: All analog feedback signals entering the board cross a galvanic isolation barrier rated at ≥2.5 kV AC (1 min). The tachometer input stage uses a precision instrumentation amplifier with a common-mode rejection ratio (CMRR) exceeding 80 dB at 50 Hz, which suppresses ground-loop noise common in large motor installations where the tachometer cable runs parallel to power cables over distances of 10–50 m.

EMC design: The PCB layout follows a split-ground plane strategy — the analog signal ground and the digital logic ground are joined at a single star point near the main connector, preventing high-frequency switching transients from the DSP clock from coupling into the analog measurement paths. Ferrite beads are placed in series with all inter-board ribbon cable lines to attenuate common-mode noise above 10 MHz. The board meets EN 61800-3 Category C2 conducted and radiated emission limits when installed in a correctly earthed DCS550 enclosure.

EEPROM parameter retention: Drive parameters are stored in a non-volatile serial EEPROM with a minimum write endurance of 1,000,000 cycles. On power-up, the firmware performs a CRC-16 checksum verification of the stored parameter block; a checksum mismatch triggers a fault (F-xx) and prevents the drive from running, protecting the motor from operating under corrupted control parameters.

Watchdog and fault arbitration: A hardware watchdog timer with a 100 ms timeout monitors the DSP main task loop. If the loop fails to service the watchdog — due to firmware hang or memory corruption — the watchdog asserts a hardware reset line that simultaneously disables thyristor firing pulses via a direct hardware path, independent of software. This ensures the drive reaches a safe de-energized state within one half-cycle of the AC supply, regardless of software state.

System Integration Benefits

• Deterministic current-loop execution at 3.3 ms: The fixed-priority real-time task scheduler guarantees current-loop jitter below ±0.1 ms, which translates directly to consistent thyristor firing-angle precision and smooth torque output across the full speed range.
• Cascaded PI with anti-windup: Both the speed and current regulators implement integrator anti-windup clamping. During current limiting, the speed integrator is frozen, preventing overshoot on current limit release — critical in winding and unwinding applications where tension spikes cause web breaks.
• Field weakening automation: The board autonomously calculates the field weakening curve based on the configured base speed and maximum speed parameters (P-group 03). No external PLC logic is required to manage field current reduction above base speed, simplifying the application program.
• Transparent diagnostics via DriveWindow: All internal signal values — including firing angle α, armature current Ia, field current If, speed error, and regulator outputs — are accessible as real-time monitored signals over the DDCS link. Engineers can trend these values during commissioning without interrupting drive operation.
• Fieldbus integration without gateway hardware: With an RPBA-01 (PROFIBUS-DP) or RCAN-01 (CANopen) adapter plugged into the board’s option slot, the drive appears as a standard fieldbus node. Speed reference, torque reference, and status words map directly to the fieldbus process data object (PDO) without requiring an intermediate gateway PLC.
• Encoder and tachometer redundancy: The board supports simultaneous connection of both an analog tachometer and a digital encoder. The active feedback source is selected by parameter, and a feedback loss detection function (configurable timeout 0.1–10 s) triggers a controlled ramp-to-stop if the active feedback signal is lost.
• Like-for-like swap without re-parameterization: When replacing a failed board with the same hardware and firmware revision, the parameter set stored in the drive’s EEPROM is read by the new board on first power-up. Only an auto-tune run (armature resistance and inductance measurement) is required to restore full closed-loop performance.
• Scalable to multi-drive systems: Up to 12 DCS550 drives can be interconnected over a DDCS fiber optic ring using RDCO-04 adapters, with one drive acting as the DDCS master. The SDCS-CON-F01 supports both master and follower roles, enabling coordinated multi-motor drives (e.g., tandem rolling mill stands) without a separate motion controller.

Quality Assurance & Global Logistics

Every SDCS-CON-F01 unit dispatched from our Xiamen, China facility is a genuine ABB-manufactured board carrying intact ABB date codes, batch traceability markings, and CE/UL certification labels. Prior to shipment, each board undergoes a functional verification procedure: supply rail voltages are measured at the board connector, EEPROM integrity is confirmed via checksum read-back, and the DDCS communication port is exercised with a loopback test to verify the fiber transceiver is operational.

Boards are packed in anti-static shielding bags (ANSI/ESD S541 compliant), placed in foam-lined rigid cartons, and sealed with humidity indicator cards. For international shipments, we use DHL Express, FedEx International Priority, or UPS Worldwide Express — all with door-to-door tracking. Standard transit times from Xiamen to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for every shipment. HS Code 8537.10 applies; we can provide a formal export classification letter on request for customs pre-clearance.

All new units carry a 12-month warranty covering manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed with a 5-business-day turnaround for assessment; confirmed defective units are replaced or credited without requiring return of the failed board in most cases.
