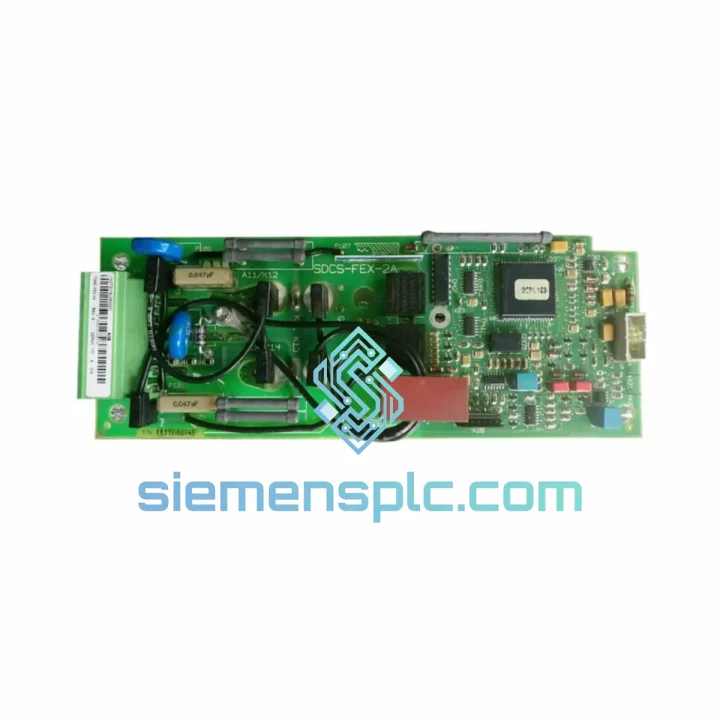

ABB SDCS-FEX-2A 3ADT311500R1 Field Excitation Board – DCS800 Series

ABB SDCS-FEX-2A 3ADT311500R1 — Field Excitation Power Board for DCS800 DC Drive Systems

The ABB SDCS-FEX-2A (order code 3ADT311500R1) is a single-phase field excitation power board engineered for integration within the ABB DCS800 series DC drive platform. Its primary function is to deliver precisely regulated DC current to the field winding of a separately excited DC motor, thereby maintaining stable magnetic flux across the full operating speed range. Without accurate field current control, armature current regulation becomes non-deterministic, leading to torque ripple, thermal stress on motor insulation, and degraded speed-loop bandwidth. The SDCS-FEX-2A eliminates these failure modes through a dedicated hardware excitation path that operates independently of the main armature converter logic.

In a DCS800 drive architecture, the field excitation board occupies a defined slot on the drive’s internal backplane. It receives its firing pulses from the drive’s SDCS-CON-4 control board via a dedicated gate signal bus, ensuring synchronization between armature and field converter firing angles. This synchronization is critical in applications requiring four-quadrant operation — such as steel rolling mill reversing drives or winder/unwinder tension control — where field weakening must be precisely coordinated with armature voltage ramp-up to achieve smooth speed transitions above base speed.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SDCS-FEX-2A implements a 2-pulse, single-phase fully controlled thyristor bridge. Two SCRs (silicon-controlled rectifiers) are arranged in an anti-parallel configuration to allow bidirectional current flow control, which is essential for field reversal in reversing drive applications. The gate pulses for each SCR are generated by a dedicated pulse transformer circuit on the board, providing galvanic isolation between the low-voltage control logic (5 V CMOS level signals from the backplane) and the high-voltage power stage. This isolation barrier is rated to withstand transient overvoltages consistent with IEC 60664-1 installation category III environments — a requirement in industrial switchgear cabinets where switching transients from contactors and circuit breakers are routine.

The closed-loop field current regulator uses a PI algorithm with anti-windup logic. The current feedback signal is derived from a precision shunt resistor in the field output circuit, with the analog signal conditioned through a differential amplifier before being digitized by the SDCS-CON-4 control board’s ADC. The PI gains are stored in the drive’s parameter set and are accessible via the DriveWindow or ACS800 toolchain. This architecture means the SDCS-FEX-2A itself contains no programmable logic — all regulation intelligence resides in the control board, making the power board a deterministic, stateless hardware element that can be replaced without re-parameterization of the field current loop.

EMC performance is addressed at the board level through a combination of gate resistor damping (to limit di/dt on SCR turn-on), snubber RC networks across each thyristor (to suppress dv/dt during commutation), and a common-mode choke on the AC input lines. These measures reduce conducted emissions on the field supply cable, which is particularly important in installations where the field supply cable runs parallel to encoder or resolver signal cables — a common layout constraint in compact motor control centers.

The board’s conformal coating provides protection against condensation, industrial dust, and mild chemical vapors, consistent with IEC 60721-3-3 class 3C2. This is relevant in paper mill and food processing environments where airborne contaminants can degrade uncoated PCB surface resistance and cause leakage currents that corrupt analog measurement signals.

System Integration Benefits

• Deterministic field current response: The closed-loop PI regulator maintains field current within ±0.5 % of setpoint under steady-state conditions, ensuring motor flux remains stable during armature current transients — a prerequisite for accurate torque control in tension-regulated winder drives.
• Seamless field weakening coordination: The SDCS-CON-4 control board adjusts the field current reference in real time as armature voltage approaches its ceiling, enabling smooth speed extension above base speed without manual intervention or external field controller hardware.
• Diagnostic transparency via drive parameters: Field current actual value, field current reference, and field excitation board status are all mapped to standard DCS800 parameters (e.g., 01.08, 01.09), readable via fieldbus (PROFIBUS, Modbus RTU, EtherNet/IP) or the drive’s local panel — no additional instrumentation required.
• Fault isolation and event logging: The drive’s fault logger records field excitation faults (overcurrent, undercurrent, board communication loss) with timestamp and operating-point data, enabling root-cause analysis without oscilloscope capture.
• Hot-swap compatible architecture: The plug-in board format allows replacement during a planned maintenance window without disturbing the drive’s main power wiring or control board parameterization, reducing mean time to repair (MTTR) in production-critical installations.
• Reduced external component count: Integrating field excitation within the drive eliminates the need for a separate field controller panel, reducing cabinet footprint, wiring complexity, and potential ground loop interference between separate enclosures.
• Compatibility with DCS800 redundancy schemes: In dual-drive redundant configurations, the field excitation board’s status is monitored by the drive’s supervisory logic, enabling automatic changeover to the standby drive if a field excitation fault is detected — without loss of motor field current during the transfer interval.
• Firmware-independent hardware interface: The SDCS-FEX-2A’s backplane interface is consistent across all DCS800 firmware versions from V5.x onward, meaning a board replacement does not require a firmware update on the control board — a significant advantage in sites with strict change-management procedures.

Quality Assurance & Global Logistics

Every SDCS-FEX-2A 3ADT311500R1 unit supplied by siemensplc.com is sourced through verified ABB authorized distribution channels or certified industrial surplus networks with full traceability documentation. Prior to dispatch, each board undergoes a functional verification procedure: AC input energization, field output voltage measurement under resistive load, gate pulse timing verification, and insulation resistance check between the power stage and the backplane connector. Units that do not meet ABB’s original factory acceptance criteria are rejected and not offered for sale.

Packaging follows ESD-safe protocols: each board is sealed in a conductive poly bag with a humidity indicator card, placed in foam-lined anti-static packaging, and enclosed in a double-wall corrugated outer carton rated for international air freight handling. Shipments originate from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. All shipments include a commercial invoice, packing list, and certificate of origin. Export classification and HS code documentation are prepared for each shipment to minimize customs clearance delays. A 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions.
