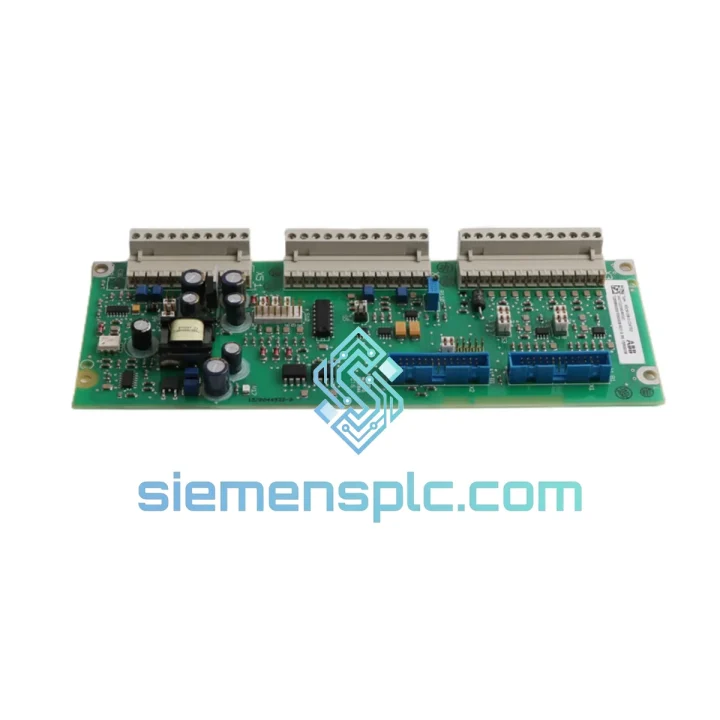

ABB SDCS-IOB-23-COAT 3ADT220090R0023 I/O Connection Board – DCS800 Series

ABB SDCS-IOB-23-COAT 3ADT220090R0023 — Conformal-Coated I/O Interface Board for DCS800 DC Drive Systems

The SDCS-IOB-23-COAT (ABB reference 3ADT220090R0023) is the dedicated I/O connection board for the ABB DCS800 series of fully digital DC drives. Its primary function within the control loop is to serve as the physical and electrical boundary between the SDCS-CON-4 main control board and all external field-level signals — including analog speed/torque references, digital command inputs, relay outputs, and encoder feedback routing. Without a correctly functioning I/O board, the DCS800 control core is electrically isolated from the process: no speed reference reaches the firing circuit, no status feedback returns to the supervisory PLC, and no protective relay can be actuated. The SDCS-IOB-23-COAT therefore occupies a structurally critical position in every DCS800 installation.

The “-COAT” designation indicates that the PCB assembly has received a full conformal coating treatment — typically an acrylic or polyurethane dielectric layer applied over all component bodies, solder joints, and trace runs. This coating raises the board’s resistance to condensation, salt-laden air, airborne particulates, and low-concentration corrosive vapors. The electrical consequence is a sustained high surface insulation resistance (SIR) under humid conditions, preventing leakage currents that would otherwise introduce offset errors into analog signal channels or cause spurious digital input transitions. In uncoated variants, a relative humidity excursion above 85% RH (non-condensing) can measurably degrade analog accuracy; the conformal coat extends reliable operation across the full DCS800 environmental envelope.

The board interfaces to the SDCS-CON-4 via a high-density board-to-board connector, carrying multiplexed analog and digital signals across the backplane without external cabling. Analog input channels are routed through precision differential receivers with common-mode rejection ratios sufficient to suppress the 50/60 Hz noise induced by adjacent power cabling in a typical drive cabinet. Digital input channels are optically isolated, with the isolation barrier placed at the board boundary — not at the control board — so that field-side ground loops and transient voltages are blocked before they can reach the microprocessor domain of the SDCS-CON-4. Relay output contacts are rated for the inductive loads typical of contactor coils and indicator lamps, with arc suppression components integrated on-board.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: Each of the eight digital input channels employs a dedicated optocoupler with a minimum isolation voltage of 500 V DC between the field side and the logic side. The isolation barrier is implemented at the board edge connector, not inside the SDCS-CON-4, which means that any ground potential difference between the drive cabinet ground and the field device ground — a common occurrence in large industrial plants where ground loops can carry tens of volts at 50 Hz — is absorbed at the SDCS-IOB-23-COAT and does not propagate to the control processor. Input filter time constants are hardware-selectable to suppress contact bounce on mechanical inputs without introducing unacceptable latency for high-speed interlock signals.

Analog Signal Chain: The four analog input channels use instrumentation amplifier front ends with a common-mode rejection ratio (CMRR) of ≥80 dB at 50 Hz. This is sufficient to reject the noise induced by a 400 V / 50 Hz power cable running parallel to a signal cable for up to 10 meters in a standard cable tray. The 12-bit analog-to-digital conversion on the SDCS-CON-4 side yields a resolution of approximately 4.9 mV per LSB on a ±10 V range — adequate for speed reference accuracy in most DC motor applications. The two analog output channels are buffered by rail-to-rail operational amplifiers capable of driving loads down to 500 Ω without gain error, covering the input impedance range of most external meters and PLC analog input cards.

EMC Design: The PCB layout routes high-frequency digital signals on inner layers with continuous ground planes above and below, minimizing radiated emissions from the board itself. Ferrite beads are placed in series with the relay coil drive lines to suppress the inductive switching transients that would otherwise couple into adjacent analog traces. The board-to-board connector to the SDCS-CON-4 uses a controlled-impedance design to maintain signal integrity at the clock frequencies used by the DCS800 internal communication bus.

Relay Output Protection: Each relay output channel includes a metal oxide varistor (MOV) across the contact terminals to clamp inductive load switching transients. The relay coil drivers on the logic side are protected by back-EMF diodes. This two-layer protection prevents the relay switching events — which occur at the millisecond timescale during drive start/stop sequences — from injecting noise into the analog measurement channels on the same board.

System Integration Benefits

• Deterministic I/O scan cycle: The SDCS-IOB-23-COAT’s digital inputs are sampled synchronously with the DCS800 control task cycle (nominally 3.3 ms for the speed controller), ensuring that interlock state changes are detected within one control cycle without polling jitter.
• Zero-parameter replacement: A like-for-like swap of the SDCS-IOB-23-COAT requires no drive parameter changes. The board carries no non-volatile configuration data; all I/O mapping is stored in the SDCS-CON-4 flash memory, so the replacement board assumes the correct I/O assignment immediately on power-up.
• Diagnostic transparency: The DCS800 firmware exposes the state of all digital inputs and relay outputs as individual drive parameters (parameter group 01), readable via the drive keypad, DriveWindow Light, or any fieldbus connected through the SDCS-COM-8x adapter. This allows maintenance personnel to verify field wiring continuity without a separate I/O tester.
• Conformal coat traceability: ABB applies conformal coating under controlled factory conditions with process documentation. Each coated board carries a batch code that links to the coating material lot, application date, and cure verification record — supporting the traceability requirements of ISO 9001-certified maintenance programs.
• Encoder feedback integrity: The TTL encoder interface on the SDCS-IOB-23-COAT includes line receiver ICs with hysteresis, which reject noise on long encoder cable runs (up to 100 m with appropriate cable) without requiring external signal conditioners. Accurate speed feedback is the foundation of tight speed regulation in winding and rolling applications.
• Fieldbus independence: Because all field signals terminate on the SDCS-IOB-23-COAT rather than on the fieldbus adapter, the drive retains full local I/O functionality even if the fieldbus communication is interrupted. This supports the fail-safe design requirement in many process industries where the drive must continue operating on hardwired commands during a network fault.
• Reduced cabinet wiring complexity: The board’s terminal block layout follows the DCS800 wiring diagram conventions, with signal groups physically separated on the PCB to match the cable entry zones of the drive cabinet. This reduces the risk of wiring errors during commissioning and simplifies the work of maintenance electricians unfamiliar with the specific installation.
• Long-term spare parts availability: The SDCS-IOB-23-COAT is a catalogued ABB spare part with a defined product lifecycle. Stocking one unit per critical drive reduces mean time to repair (MTTR) from days (waiting for shipment) to hours (board swap and recommission), directly improving plant availability metrics.

Quality Assurance & Global Logistics

Every SDCS-IOB-23-COAT 3ADT220090R0023 unit supplied by siemensplc.com is sourced as genuine ABB original product. Units are procured through verified supply channels with full documentation traceability — including ABB factory serial numbers, date codes, and where applicable, original ABB packaging with holographic authenticity labels. Before dispatch, each board undergoes a visual inspection covering conformal coat coverage uniformity, connector pin condition, component seating integrity, and PCB surface cleanliness. Boards showing any evidence of rework, pin damage, or coating discontinuity are rejected.

Packaging follows ESD-safe protocols: each board is sealed in a static-dissipative bag, placed in anti-static foam, and boxed in a double-wall corrugated carton with sufficient void fill to withstand the 1-meter drop test per ISTA 1A. For international shipments, the carton is labeled with the correct HS code (8537.10) and a commercial invoice reflecting the actual transaction value, supporting smooth customs clearance in most jurisdictions.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for urgent orders. Standard transit times to major industrial hubs: Europe 3–5 business days, North America 4–6 business days, Southeast Asia 2–3 business days. For customers requiring formal export documentation, a certificate of origin and packing list are provided with every shipment. Bulk orders and standing supply agreements are accommodated with pre-negotiated lead times and reserved stock allocation.
