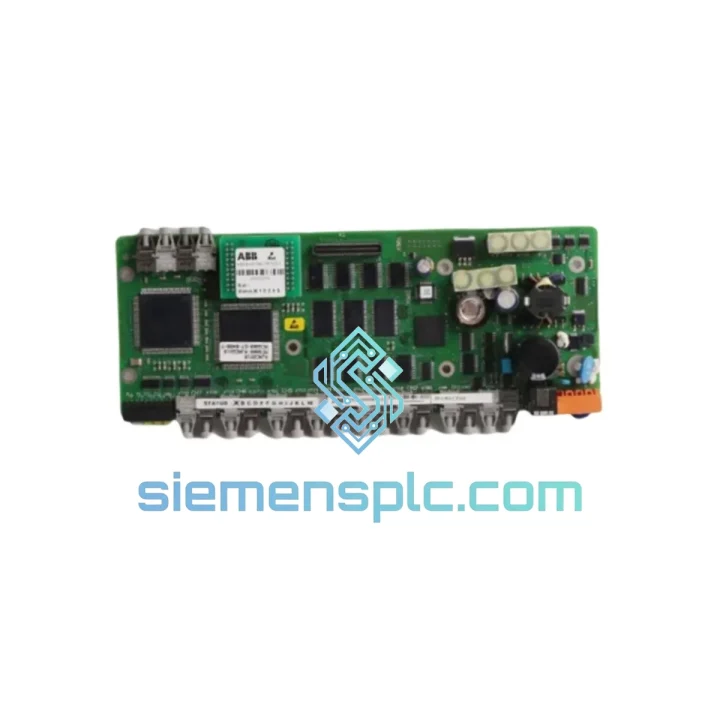

ABB SDCS-PIN-205B-COAT DC Drive Interface Board

ABB SDCS-PIN-205B-COAT: Stop the Clock on Your DC Drive Downtime

Every minute a DCS800 drive sits dead on the floor, your production line is bleeding money. A failed SDCS-PIN-205B-COAT power interface board is one of the most common reasons a DCS800 goes dark — and it’s also one of the fastest fixes when you have the right part on hand. We stock it. We ship it today. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on DCS800 drives, here’s what actually happens when a SDCS-PIN-205B-COAT fails — and what you need to watch before you swap it out.

Common failure signatures pointing to this board:

• Drive trips on fault code F507 (Current measurement fault) or F508 (Current measurement offset) — the PIN board handles current feedback conditioning; a degraded op-amp or trace corrosion on this board will throw these codes repeatedly even after reset.
• F516 (Overvoltage) appearing intermittently under light load — often caused by corrupted voltage feedback signal from the PIN board rather than an actual DC bus overvoltage event. Confirm by checking DC bus voltage directly at the capacitor bank before condemning the board.
• Drive powers up, fans spin, but the control board (SDCS-CON) shows no motor current feedback on the panel — classic PIN board signal path failure.
• Visible corrosion, delamination, or burn marks around the current transducer interface connectors X1/X2 on the board edge.
• Intermittent faults that clear on power cycle but return within minutes of load application — thermal-related solder joint failure on the PIN board, accelerated in non-coated variants operating in humid environments.

Pre-replacement checklist — do this before you touch the board:

• Isolate and lock out the drive. Verify DC bus voltage is below 50 V with a calibrated meter before opening the cabinet. DCS800 capacitors hold charge for several minutes after power-off.
• Document the existing board revision marking (e.g., Rev C, Rev D) printed on the PCB silkscreen. SDCS-PIN-205B-COAT is the current production revision; if your drive was installed pre-2010, confirm with ABB documentation that this revision is backward compatible with your SDCS-CON firmware version.
• No DIP switches or jumpers on the SDCS-PIN-205B-COAT itself — it is a passive interface board with no user-configurable addressing. However, verify that the SDCS-CON control board firmware is at a revision that supports the 205B hardware generation. Firmware mismatch between a legacy SDCS-CON and a newer PIN board revision can cause F501 (Hardware fault) on first power-up.
• Photograph all connector positions before disconnecting. The X1 (current transducer), X2 (voltage feedback), and X3 (gate pulse) connectors are keyed but a forced mis-seat is possible under field conditions.
• Use an ESD wrist strap. The gate pulse driver circuitry on this board is sensitive to electrostatic discharge — a zapped gate driver will produce the same fault codes as the original failure and you’ll be ordering a second board.

Post-installation verification:

• Power up with motor disconnected. Confirm no F5xx faults on the SDCS-CON panel.
• Run the drive’s built-in current measurement calibration routine (parameter 99.10 in DCS800 firmware) before connecting load. This re-zeros the current feedback offsets for the new board.
• Apply 10% rated load and monitor current feedback signal on the drive panel for 5 minutes. Stable reading with no F507/F508 confirms successful replacement.

Reliability in Harsh Conditions

The -COAT suffix is not a marketing label. It is a functional specification. ABB applies a polyurethane-based conformal coating across the entire PCB surface of the SDCS-PIN-205B-COAT, conforming to IPC-CC-830 Class AR (acrylic-compatible) standards. What this means in practice:

• Humidity resistance: The coating creates a hydrophobic barrier that prevents condensation from bridging high-impedance signal traces — the primary failure mechanism in non-coated PIN boards installed in coastal, tropical, or underground environments. Salt spray resistance tested to IEC 60068-2-52.
• Vibration tolerance: Conformal coating mechanically stabilizes surface-mount components against vibration-induced solder joint fatigue. DCS800 drives installed on steel mill floors or near compressor skids see continuous 5–50 Hz vibration; the coated board’s MTBF in these environments is significantly higher than the uncoated variant.
• Thermal cycling: Industrial drives experience daily thermal cycles from cold start to full operating temperature. The coating’s elastic modulus accommodates differential thermal expansion between the FR4 substrate and component bodies, preventing micro-crack propagation in solder joints over time.
• Chemical atmosphere: Paper mills, chemical plants, and wastewater facilities expose drive electronics to H₂S, SO₂, and chlorine vapors. The conformal coating provides a first line of defense against corrosive gas attack on copper traces and component leads.

If your installation environment is air-conditioned and clean, the -COAT variant still makes sense as a long-term spare — it stores better, resists shelf degradation, and gives you one less variable when troubleshooting years down the line.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs in Asia, with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority.
• Packaging: Anti-static ESD bag, foam-lined rigid carton, moisture-barrier outer wrap. The board arrives in the same condition it left our shelf.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared same day. Certificate of Conformance available on request — critical for regulated industries requiring traceability documentation.
• Transit times (typical):
  • Southeast Asia: 2–3 business days
  • Europe / Middle East: 3–5 business days
  • North America: 3–5 business days
  • South America / Africa: 5–7 business days
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.
• Customs clearance: We declare accurate commercial values and provide all supporting documentation to minimize customs hold risk. For time-critical shipments, we recommend DHL Express with formal entry — fastest clearance in most markets.
• Emergency freight: For genuine production-down situations, contact us directly on WhatsApp for next-flight-out options. We have handled emergency air freight to active plant sites across Europe, the Middle East, and Southeast Asia.
