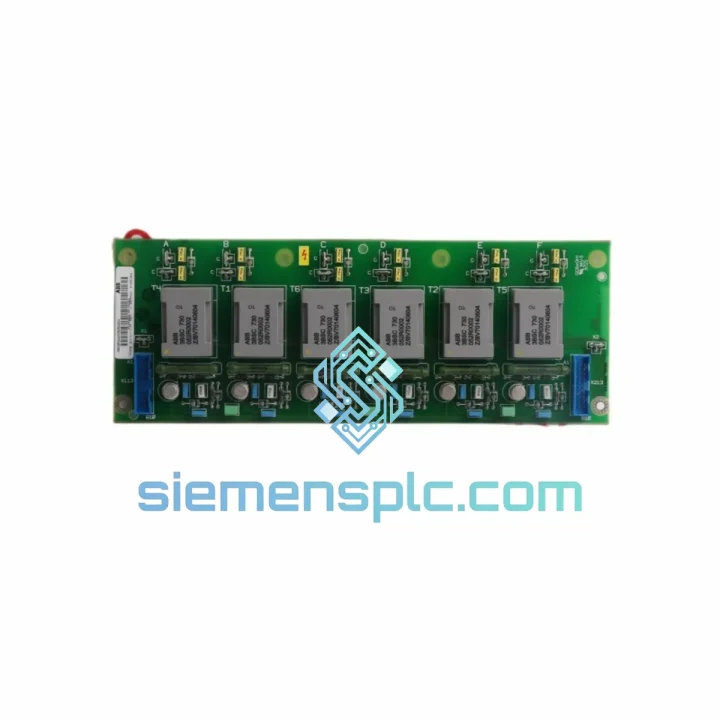

ABB SDCS-PIN-48 3BSE004939R0002 Pulse Transformer Board

ABB SDCS-PIN-48 3BSE004939R0002 — Stop the Clock on Your DC Drive Downtime

Every minute a rolling mill, winder, or crusher sits idle because of a failed gate firing board, you are bleeding money. The SDCS-PIN-48 pulse transformer board is the single component that bridges your DCS800 control processor to the thyristor bridge — when it fails, the drive is dead. We stock this board in Xiamen, tested and ready to ship today. No waiting on ABB lead times. No sourcing delays. Just a replacement board on a plane to your site.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm SDCS-PIN-48 is the failed component before you order:

On the DCS800 operator panel, fault codes F506 (thyristor 1–3 firing fault) and F507 (thyristor 4–6 firing fault) are the clearest indicators that the gate firing circuit has broken down. If you see these codes alongside an asymmetric DC bus ripple on your oscilloscope — one phase of the SCR bridge is not firing — the SDCS-PIN-48 is the prime suspect before you start chasing the thyristors themselves.

Step-by-step replacement procedure:

1. Isolate and lock out. Open the main breaker and apply LOTO. Verify DC bus capacitors have discharged below 50 V with a calibrated meter before touching any board.
2. Document the existing board position. Photograph the connector orientation and any DIP switch settings on the SDCS-CON board before removal. The SDCS-PIN-48 itself carries no user-configurable switches — it is a passive transformer array — but the adjacent boards do.
3. Remove the faulty board. Release the two PCB retaining clips, disconnect the ribbon cable from the SDCS-CON interface, and lift the board straight out. Inspect the connector pins on both sides for burn marks or corrosion — if the connector is damaged, replace it before fitting the new board.
4. Seat the replacement. Align the SDCS-PIN-48 with the guide rails and press firmly until both retaining clips engage. Reconnect the ribbon cable — a half-seated ribbon is the most common cause of a repeat F506/F507 fault after board swap.
5. Firmware check. The SDCS-PIN-48 contains no firmware. However, confirm the SDCS-CON firmware version is compatible with your drive frame size (A1–A8). Mismatched firmware on the CON board can produce firing angle errors that mimic a PIN board fault.
6. Commissioning test. Power up in open-loop mode, command a low-speed no-load run, and verify all six gate pulses are present on the oscilloscope before returning the drive to production.

Common misdiagnosis: Engineers sometimes replace the thyristors first when F506/F507 appears. If the SCRs test good with a gate tester but the fault persists, the SDCS-PIN-48 is almost always the root cause. The pulse transformer windings degrade over years of thermal cycling and eventually lose the energy needed to reliably trigger the gate.

Reliability in Harsh Conditions

The SDCS-PIN-48 was engineered for the environments where DC drives earn their keep — not climate-controlled server rooms. The PCB carries a full conformal coating that seals the transformer windings and solder joints against humidity, condensation, and airborne conductive dust from grinding, milling, and cement operations. Vibration resistance is validated to IEC 60068-2-6 profiles, covering the resonance frequencies common in motor-driven machinery frames. Operating temperature range of 0 °C to +55 °C covers everything from cold-start winter commissioning in northern facilities to the radiated heat inside a fully loaded drive cabinet in a tropical steel plant.

The passive transformer-based isolation architecture is a deliberate design choice for longevity. Unlike optocoupler-based firing boards that degrade with LED aging and CTR drift, the SDCS-PIN-48’s pulse transformers have no active semiconductor in the isolation path. Field data from DCS800 installations consistently shows this board outlasting the optocoupler boards in comparable drives — provided the drive cabinet filtration is maintained and the board is not subjected to sustained overvoltage on the gate lines.

Every unit we dispatch from Xiamen is inspected for PCB trace integrity, transformer winding continuity, connector pin condition, and conformal coating coverage before it leaves the warehouse. Boards with any sign of prior rework, pin corrosion, or coating breach are rejected.

Global Express Logistics

Our Xiamen warehouse is positioned 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub serving direct freighter routes to Europe, North America, Southeast Asia, and the Middle East. This geography is not accidental — it is why we can offer same-day dispatch on confirmed orders placed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Bangkok, Jakarta): 1–2 business days via DHL Express
• Middle East (Dubai, Riyadh, Doha): 2–3 business days via FedEx International Priority
• Europe (Frankfurt, Rotterdam, Milan): 3–4 business days via DHL Express Worldwide
• North America (Chicago, Houston, Toronto): 3–5 business days via FedEx International Priority
• Australia & New Zealand: 3–4 business days via DHL Express

Every shipment includes a commercial invoice with correct HS code classification (8537.10 for control boards), packing list, and — on request — a certificate of origin for customs clearance. For plant maintenance teams that need to justify emergency procurement, we can provide a pro-forma invoice within 30 minutes of inquiry. The board ships in a rigid anti-static box with foam insert, double-bagged in ESD poly, and outer-carton marked FRAGILE / ELECTRONIC COMPONENTS to reduce handling risk in transit.

For projects requiring multiple boards or a full SDCS control stack (CON-4, POW-4, PIN-48, FEX-2), contact us for consolidated shipment pricing — combining boards in one shipment typically cuts freight cost by 30–40% versus individual orders.
