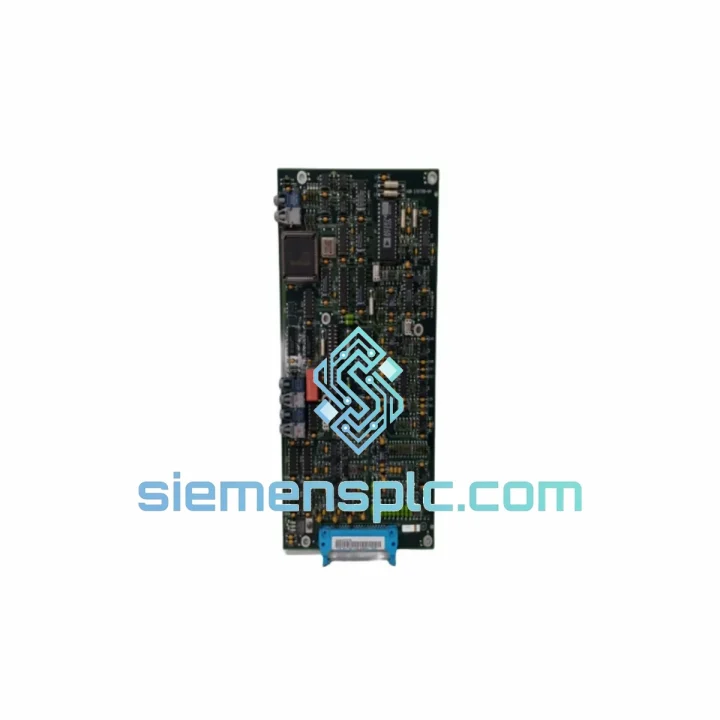

ABB SNAT609TAI 61073779 Pulse Encoder Interface Board

ABB SNAT609TAI 61073779 — Stop the Clock on Your Downtime, Ship Today

Every minute your ACS600 or ACS800 drive sits offline, the losses compound. A failed pulse encoder interface board doesn’t just trip a fault code — it kills closed-loop speed feedback, collapses torque regulation, and forces a full production halt on winding lines, crane hoists, rolling mills, and paper machines. The ABB SNAT609TAI 61073779 is the exact board you need. Not a substitute. Not a workaround. The OEM part, in stock, shipping from Xiamen within 24 hours.

We’ve seen this failure pattern dozens of times across steel plants in Southeast Asia, pulp mills in Scandinavia, and offshore crane systems in the Middle East. The SNAT609TAI goes down, the drive throws encoder feedback faults, and the maintenance team scrambles for a part that most distributors don’t stock. We do. That’s the entire point of siemensplc.com — verified industrial spares, ready when your line isn’t.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The SNAT609TAI fails in predictable ways. Here’s what you’ll see on the drive panel and how to confirm the board is the culprit before you pull it:

Common Fault Codes Pointing to SNAT609TAI Failure:

• ACS800 Fault 35 — ENCODER CABLE: Encoder signal lost or intermittent. First check cable continuity and shield grounding. If cable checks out, the SNAT609TAI input circuitry is suspect.
• ACS800 Fault 36 — ENCODER CURRENT: Encoder supply voltage from the board has collapsed. Measure the 5V/12V/24V supply at the encoder connector on the SNAT609TAI. If absent, the board’s onboard regulator has failed.
• ACS600 Fault F-21 / F-22 — Speed Feedback Error: Drive cannot establish closed-loop control. Verify encoder PPR setting in parameter 50.01 matches the physical encoder. If parameter is correct and encoder tests good, replace SNAT609TAI.
• Erratic speed oscillation at low load: Often caused by degraded differential line receiver ICs on the SNAT609TAI. The drive appears to run but hunts continuously — a classic sign of corrupted encoder signal processing.

Step-by-Step Replacement Procedure:

1. De-energize and lock out the drive. Wait a minimum of 5 minutes after power-off before opening the drive cabinet. Verify DC bus voltage is below 50V with a calibrated meter.
2. Document your encoder parameters before removal. Record parameters 50.01 (Encoder Pulses/Rev), 50.02 (Encoder Signal Selection), and any speed scaling parameters. These do not transfer automatically.
3. Note the DIP switch configuration on the existing SNAT609TAI. The board carries DIP switches that set encoder voltage level (5V / 12V / 24V) and termination resistance. Photograph the switch positions before removal — the new board ships in default position and must be reconfigured to match.
4. Handle with ESD precautions. Ground yourself with a wrist strap before touching the board. The SNAT609TAI’s input receiver ICs are sensitive to electrostatic discharge.
5. Seat the replacement board firmly. The PTAI slot connector requires positive engagement. A partially seated board will produce intermittent faults that are difficult to diagnose.
6. Restore encoder parameters and perform a speed identification run (ACS800: parameter 99.15 Motor ID Run) before returning the drive to closed-loop service. Skipping this step risks speed overshoot on first start.
7. Verify encoder feedback signal quality using the drive’s diagnostic display (ACS800: Actual Signals group 01, signal 01.02 Motor Speed). Confirm the value tracks motor shaft rotation smoothly before releasing the line.

Configuration Notes: If your ACS800 uses a dual-encoder setup (master/follower synchronization), confirm that the SNAT609TAI variant matches your channel count. The 61073779 reference number designates the standard single-channel PTAI configuration. Dual-channel applications require a different board variant — contact us to confirm before ordering.

Reliability in Harsh Conditions

The ACS600 and ACS800 drive families were engineered for continuous duty in environments that would destroy consumer-grade electronics within weeks. The SNAT609TAI is built to the same standard. The board’s PCB substrate uses FR4 glass-epoxy laminate with conformal coating on production variants, providing resistance to condensation and airborne contaminants common in paper mills and coastal industrial facilities.

Vibration tolerance is validated to IEC 60068-2-6 test profiles — the board withstands sinusoidal vibration up to 3.5 mm displacement at frequencies from 2 to 9 Hz, and 10 m/s² acceleration from 9 to 200 Hz. In crane and hoist applications where mechanical shock is a daily reality, this matters. Boards that fail prematurely in these environments are almost always non-OEM substitutes with inferior PCB construction.

Thermal cycling is the other major stress factor. Drive cabinets in steel plants routinely see ambient temperatures swing from 10°C at startup to 50°C+ during peak production. The SNAT609TAI’s onboard components are rated for this range. Electrolytic capacitors on the board use 105°C-rated parts — a detail that separates genuine ABB boards from counterfeit copies that use 85°C-rated capacitors and fail within 18 months of installation.

Every unit we ship from Xiamen is inspected for physical integrity: connector pins checked for straightness and corrosion, solder joints examined under magnification, and component markings verified against OEM documentation. We do not ship boards with bent pins, cracked substrates, or missing components — regardless of how urgently a customer needs the part.

Global Express Logistics

Our Xiamen warehouse operates Monday through Saturday with same-day dispatch cutoff at 16:00 CST for orders confirmed before that time. Here’s how your shipment moves from our shelf to your plant floor:

• Order Confirmation → Warehouse Pick: Within 2 hours of payment confirmation, the SNAT609TAI 61073779 is pulled, inspected, and staged for packing.
• ESD-Safe Packaging: The board is sealed in an anti-static bag, placed in foam-lined inner packaging, and boxed with humidity indicator cards for moisture-sensitive destinations. Outer carton is double-walled for air freight.
• Export Documentation: Commercial invoice, packing list, and country of origin certificate prepared same day. For customers requiring CITES, CE declarations, or customs pre-clearance documents, allow one additional business day.
• DHL Express / FedEx International Priority: Standard routing from Xiamen Gaoqi International Airport. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, South America 5–7 days.
• Tracking: AWB number provided within 4 hours of dispatch. We monitor shipments proactively — if a customs hold or routing delay occurs, we notify you before you have to ask.
• Emergency Freight: For critical plant-down situations, we can arrange next-flight-out courier booking. Contact us via WhatsApp for real-time coordination: +86 18359268345.

We’ve shipped industrial control boards to 60+ countries. We understand export compliance for electronic components, including dual-use classification checks and destination control requirements. Your shipment will not be held at origin due to documentation errors.
