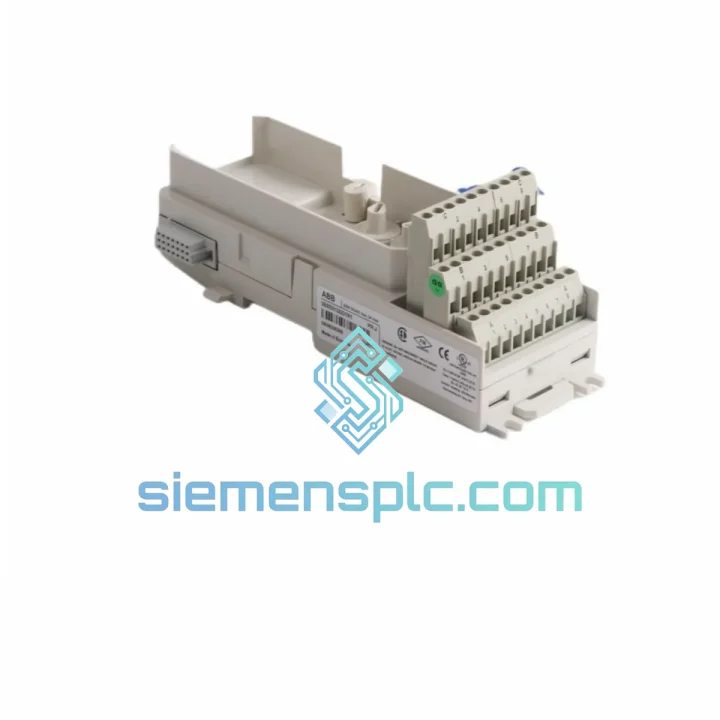

ABB TU811V1 3BSE013231R1 Termination Unit

ABB TU811V1 3BSE013231R1 S800 I/O Termination Unit: Stop the Clock on Your Downtime

Every minute your line is down, you’re bleeding money. The ABB TU811V1 (catalog ref: 3BSE013231R1) is the field-proven termination unit that sits between your S800 I/O modules and your field wiring — and when it fails, nothing talks to nothing. We stock this unit in Xiamen, China, ready to ship same day via DHL or FedEx International Priority. No waiting on factory lead times. No broker runaround. Just the part, on a plane, to your door.

Whether you’re running an AC800M-based DCS in a refinery, a batch reactor in a chemical plant, or a power generation control room, a failed TU811V1 is a P1 incident. We’ve seen it. We’ve fixed it. We keep stock precisely because you can’t afford to wait.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The TU811V1 is a passive termination unit — it carries no firmware and requires no configuration itself. But replacing it in a live AC800M system still demands discipline. Here’s what field experience teaches you:

Step 1 – Isolate before you touch anything. The S800 I/O bus is hot-swap capable in theory, but in practice, yanking a TU811V1 under load while field wiring is live is asking for a ground fault or a spurious output. De-energize field circuits first. Confirm with your safety officer.

Step 2 – Document your wiring before disconnection. The TU811V1 uses a plug-in terminal block design on some variants. Photograph every terminal row. Label each conductor with a wire marker before you pull anything. You will thank yourself at 2 AM.

Step 3 – Check the I/O module address DIP switches. The S800 I/O modules that plug into the TU811V1 use hardware address switches (SW1 on the module face) to set their ModuleBus node address. If you’re swapping in a replacement module alongside the new TU811V1, verify the DIP switch positions match your system configuration exactly. A mismatched address means the AC800M controller will not recognize the module — you’ll see a hardware fault in Control Builder and the channel will stay offline.

Step 4 – Inspect the ModuleBus connector pins. The TU811V1 mates with the I/O module via a 40-pin backplane connector. Bent or corroded pins are a common failure mode in humid environments. Use a magnifier and a fine pick to straighten any bent pins before seating the new unit. A partial connection here causes intermittent channel faults that are notoriously difficult to diagnose remotely.

Step 5 – Verify firmware compatibility of the I/O module. The TU811V1 itself is firmware-agnostic, but the I/O module plugged into it may require a specific firmware revision to work with your AC800M controller version. Check ABB’s compatibility matrix in the S800 I/O Hardware Manual (document 3BSE020924R4 or later). Mismatched firmware between the controller and I/O module can cause the module to appear in hardware inventory but fail to execute I/O scans.

Common fault codes to watch for after replacement:

• HW_FAULT on the I/O module object in Control Builder — usually a DIP switch mismatch or a seating issue on the backplane connector.
• COMM_FAULT on the ModuleBus segment — check that the TU811V1 bus termination jumper (if present on your variant) is set correctly. End-of-bus units require the termination resistor to be enabled.
• Channel FORCED status persisting after replacement — forced values in the AC800M application survive a hardware swap. Clear all forced I/O in Control Builder after confirming the new unit is online.
• Unexpected output pulses on DO channels during power-up — this is a known behavior during the AC800M boot sequence. Ensure field devices are in a safe state before restoring power.

Reliability in Harsh Conditions

The TU811V1 was designed for the realities of industrial process environments — not a climate-controlled server room. ABB engineered the S800 I/O platform to operate continuously in conditions that would kill consumer-grade electronics.

The screw-clamp terminal blocks are rated for vibration resistance per IEC 60068-2-6, handling sinusoidal vibration up to 1g across the 10–150 Hz range. This matters in compressor houses, pump skids, and anywhere rotating machinery shares a cabinet with control hardware. The housing is constructed from flame-retardant thermoplastic rated UL 94 V-0, providing passive fire resistance without adding bulk.

Thermal performance is equally robust. The unit is rated for continuous operation at ambient temperatures up to 55 °C — and in practice, inside a sealed cabinet with poor airflow, that rating gets tested every summer. The design uses no active cooling components, eliminating fan failure as a failure mode entirely.

Corrosion resistance is addressed through conformal coating options on the PCB (where applicable) and gold-plated contact surfaces on the backplane connector. In coastal or offshore installations where salt-laden air accelerates oxidation, this matters. Units that have been in service for 10+ years in such environments typically show connector degradation before any other failure mode — which is exactly why having a verified replacement unit on hand is non-negotiable for any serious maintenance program.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes. When you confirm your order, here’s exactly what happens:

• Day 0 (Order Confirmed): Payment received, unit pulled from bonded stock, export documentation prepared — commercial invoice, packing list, HS code 8537.10 declaration.
• Day 1 (Dispatch): Unit handed to DHL Express or FedEx International Priority at Xiamen pickup. Tracking number issued to you within 2 hours of handover.
• Day 2–4 (Transit): DHL Express from Xiamen typically delivers to Southeast Asia in 2 days, Middle East and Europe in 3–4 days, and the Americas in 4–5 days. FedEx International Priority follows comparable schedules.
• Customs Clearance: We pre-declare all shipments with accurate HS codes and commercial values. Our documentation package is designed to clear customs without delays. For countries requiring import licenses for industrial automation equipment, we advise buyers in advance.
• Bulk Orders: For orders of 5+ units or multi-line BOM requirements, we can consolidate into a single shipment and negotiate freight rates. Contact us for a consolidated quote.

We do not use postal services or economy freight for industrial components. Your downtime is too expensive for a slow boat.
