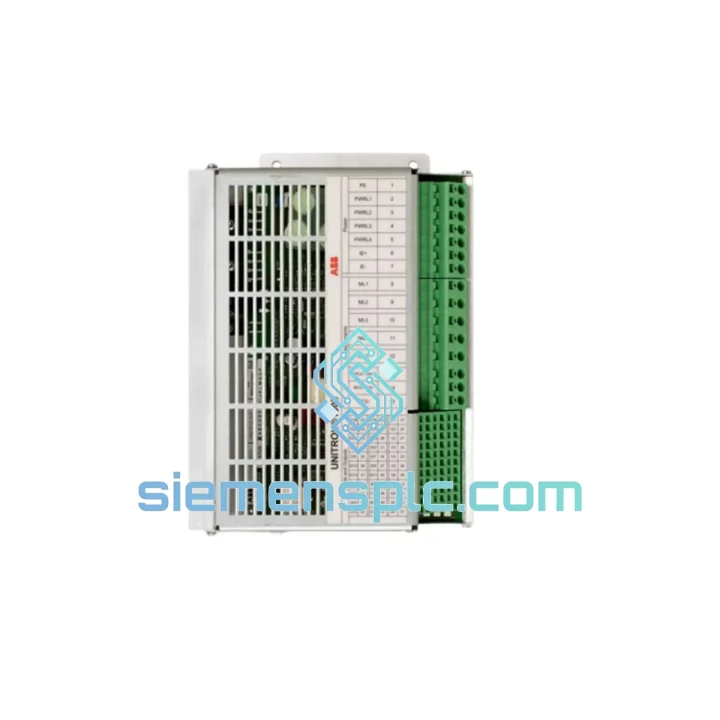

ABB UNITROL 1005-0011 ECO 3BHE043576R0011 Automatic Voltage Regulator – UNITROL 1000 Series

ABB UNITROL 1005-0011 ECO 3BHE043576R0011 — Precision Excitation Control for Synchronous Generators

The ABB UNITROL 1005-0011 ECO (ABB part number 3BHE043576R0011) is a compact, panel-mount automatic voltage regulator (AVR) belonging to the UNITROL 1000 product family. It governs the field excitation current of synchronous generators to maintain terminal voltage within defined tolerance bands under varying load conditions. The ECO designation identifies an energy-optimized excitation topology that reduces continuous field losses compared to standard UNITROL 1005 variants, making it the preferred selection for prime-power and continuous-duty generator sets where thermal management and operating efficiency are primary engineering constraints.

In a generator excitation control loop, the AVR occupies the position of the primary closed-loop controller. It samples three-phase terminal voltage via a potential transformer (PT), computes the error between the measured RMS voltage and the operator-defined setpoint, and adjusts the DC field current output accordingly through a phase-controlled thyristor bridge or IGBT-based power stage. The UNITROL 1005-0011 ECO executes this regulation cycle with a response bandwidth sufficient to suppress voltage deviations caused by sudden load steps — a critical performance criterion in applications such as hospital standby power, data center UPS bypass, and industrial motor-start events where voltage dip duration directly affects process continuity.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The UNITROL 1005-0011 ECO implements a fully digital control architecture built around a fixed-point DSP core. Unlike analog AVR designs that rely on discrete RC networks for PID compensation, the digital implementation allows parameter storage in non-volatile memory and deterministic execution of the control loop at a fixed sampling rate — typically in the range of 1–4 kHz for voltage regulation loops of this class. This eliminates the parameter drift associated with aging passive components and enables field re-tuning via the Modbus interface without hardware modification.

ECO Power Stage Topology: The ECO variant employs an energy-optimized power conversion stage that reduces no-load field losses. In conventional thyristor-bridge AVRs, continuous gate firing at partial load results in reactive current circulation and elevated heat dissipation. The ECO topology addresses this through optimized firing angle management and, where applicable, a reduced-loss semiconductor selection, resulting in measurable efficiency gains in continuous-duty prime-power applications operating at partial excitation for extended periods.

EMC Design: The UNITROL 1005-0011 ECO is designed to IEC 61000-4 immunity levels applicable to industrial power environments. The PCB layout incorporates ground plane partitioning to isolate the high-frequency digital control section from the power output stage. Opto-coupler isolation is used at the boundary between the low-voltage control logic and the field output circuit, providing galvanic separation that prevents ground loop interference from corrupting the voltage sensing measurement — a common failure mode in generator AVR installations where the generator frame ground and the control panel ground carry different potential references under fault conditions.

Limiter Architecture: The over-excitation limiter (OEL) and under-excitation limiter (UEL) operate as independent software modules that override the main PID output when field current or reactive power exceeds defined thresholds. The V/Hz limiter monitors the ratio of terminal voltage to frequency and reduces excitation when this ratio exceeds the generator’s magnetic saturation limit — a protection mechanism that prevents transformer and generator core overflux during frequency transients such as load rejection events. These limiters are parameterized independently of the main voltage regulator, allowing the protection envelope to be configured to match the specific generator’s capability curve without affecting normal regulation performance.

Multi-Mode Regulation: The FCR (Field Current Regulation) mode provides an inner current control loop that can be used during commissioning to verify field circuit continuity and measure open-circuit voltage build-up characteristics. The VAr/PF control mode closes an outer reactive power loop around the AVR, enabling the generator to track a reactive power setpoint dispatched from a SCADA or energy management system — a requirement in grid-connected co-generation plants operating under power purchase agreements that specify reactive power delivery obligations.

System Integration Benefits

• Deterministic Voltage Recovery: The digital PID controller with configurable derivative filtering achieves voltage recovery to within ±3% of nominal within the response time specified by IEC 60034-16-1, supporting process continuity in facilities with sensitive electronic loads.
• Modbus RTU Integration: Native RS-485 Modbus RTU support allows the AVR to be integrated into existing SCADA, DCS, or PLC supervisory architectures without additional protocol converters, reducing panel wiring complexity and communication latency.
• Setpoint Remote Adjustment: Voltage setpoint, reactive power setpoint, and regulation mode can be changed via Modbus register writes, enabling remote dispatch from a control room without local panel access — a requirement in unmanned or remotely monitored generator installations.
• Diagnostic Transparency: The UNITROL 1005-0011 ECO exposes real-time measured values (terminal voltage, field current, reactive power) and internal status flags via Modbus read registers, providing the supervisory system with continuous visibility into excitation system health without additional instrumentation.
• Retrofit Compatibility: The UNITROL 1005 form factor and terminal assignment are designed for backward compatibility within the UNITROL 1000 platform, reducing rewiring effort when replacing legacy ABB AVR modules in existing generator panels.
• Parallel Generator Support: When equipped with the optional ABB parallel operation board accessory, the UNITROL 1005-0011 ECO supports reactive load sharing between multiple generators operating on a common bus, with cross-current compensation to prevent reactive power circulation between units.
• Configurable Protection Thresholds: OEL, UEL, and V/Hz limiter thresholds are independently parameterizable to match the specific generator’s capability curve and transformer magnetization characteristics, avoiding nuisance trips while maintaining equipment protection margins.
• Firmware Updateability: The digital architecture supports firmware updates through the communication interface, allowing ABB to issue control algorithm improvements or protection enhancements without hardware replacement — extending the effective service life of the installed unit.

Quality Assurance & Global Logistics

Every ABB UNITROL 1005-0011 ECO unit (3BHE043576R0011) supplied through siemensplc.com is sourced as genuine ABB original equipment. Units are procured through verified industrial supply channels with original ABB labeling, serial number traceability, and factory packaging preserved intact. Prior to dispatch from our Xiamen, China facility, each unit undergoes visual inspection and part number verification against the ABB order code 3BHE043576R0011 to confirm authenticity and physical condition.

Shipment documentation includes a commercial invoice, packing list, and certificate of conformity upon request. Our logistics team handles full export documentation preparation — including HS code classification and customs declaration — for international shipments to Europe, Southeast Asia, the Middle East, and the Americas. Standard dispatch lead time from confirmed order is 3–7 business days for in-stock units, with expedited processing available for critical plant maintenance requirements. All international shipments are handled via DHL Express, FedEx International Priority, or equivalent tracked air freight services, with real-time tracking provided upon dispatch.

The 12-month warranty covers manufacturing defects under normal operating conditions as defined by ABB’s published environmental and electrical specifications for the UNITROL 1000 series. Warranty claims are processed with direct technical support from our engineering team, who can assist with fault diagnosis prior to return authorization to minimize plant downtime.
