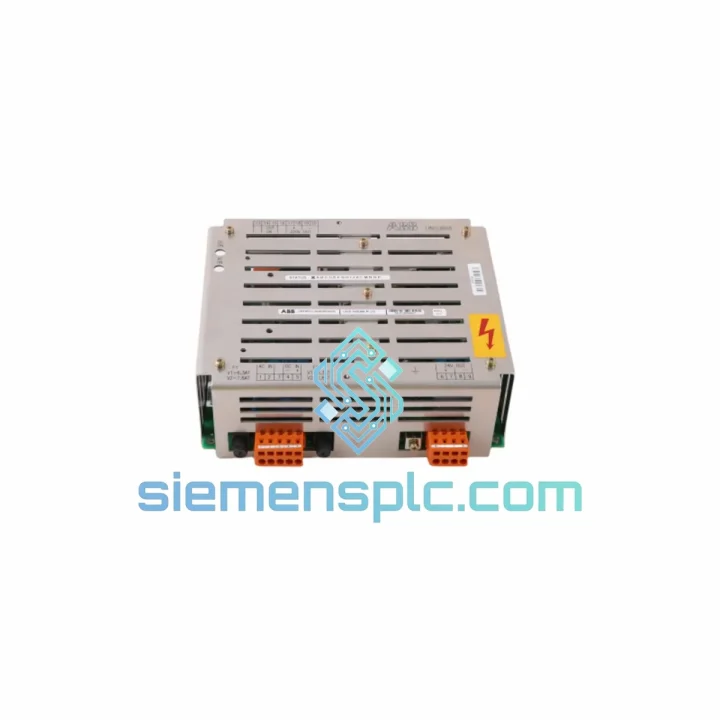

ABB UNS0868B-P V2 3BHE013940R0002 Excitation Power Supply

ABB UNS0868B-P V2 (3BHE013940R0002) — Stop the Bleed: Every Hour of Excitation Downtime Costs You Real Money

Generator tripped. AVR cabinet dark. Your UNITROL 6000 or 6800 excitation system is offline and the clock is running. The ABB UNS0868B-P V2 (part number 3BHE013940R0002) is the internal power supply board that feeds every logic rail, I/O circuit, and gate-drive stage inside that cabinet. When it fails, nothing else works — not the AVR, not the field current regulator, not the protection relays downstream. We stock this board in Xiamen and we ship the same day. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirmed failure signatures for UNS0868B-P V2:

• Fault code F1301 / F1302 (Internal PSU undervoltage): The UNITROL 6000 firmware logs this when any monitored DC rail drops below threshold. Nine times out of ten, the root cause is a failed electrolytic capacitor on the 15 V or 24 V output stage of this board — not the upstream transformer. Swap the board before chasing the transformer.
• Fault code F2201 (Gate-drive supply loss): The IGBT gate-drive circuits draw from a dedicated isolated rail on this PSU. If you see F2201 with no upstream AC fault, the UNS0868B-P V2 is the prime suspect.
• Intermittent AVR dropouts at high ambient temperature: V1 boards had a known thermal derating issue on the main switching FETs. V2 added a heatsink clip and revised gate resistors. If you’re running a V1 and seeing thermal-related dropouts above 45 °C ambient, upgrading to V2 is the fix, not a workaround.

Step-by-step replacement procedure (field-verified):

• Step 1 — De-energize and lock out: Open the excitation cabinet main breaker and apply LOTO. Verify zero voltage on the DC bus with a calibrated meter. Do not rely on indicator lamps — they run from the same PSU you’re replacing.
• Step 2 — Record the existing configuration: Before touching anything, photograph the DIP switch bank on the UNS0868B-P V2. The switches set the auxiliary voltage selection and watchdog timeout. The new board ships in factory default — you must replicate the original switch positions exactly.
• Step 3 — Note the firmware version: Check the UNITROL HMI or the cabinet door label for the active firmware build. UNS0868B-P V2 is compatible with all UNITROL 6000/6800 firmware from build 3.x onward. If your system is running a pre-3.x build, contact us before ordering — a firmware update may be required alongside the board swap.
• Step 4 — Disconnect in sequence: Unplug the main DC input connector first, then the output rail connectors, then the signal/feedback harness. Label each connector with tape before removal. The connectors are keyed but the harness routing can cause confusion on reassembly.
• Step 5 — Install the new board: Seat the board in the chassis guides and torque the M4 mounting screws to 1.2 Nm. Over-torquing cracks the PCB standoffs — a common field mistake. Reconnect in reverse order: signal harness first, output rails, then DC input.
• Step 6 — Set DIP switches: Replicate the switch positions from your photograph. Double-check before powering up. A wrong switch position will not damage the board but will cause immediate fault codes that look like a second failure.
• Step 7 — Power up and verify: Apply auxiliary power only first. Confirm all DC rail LEDs illuminate on the board. Then close the main breaker and observe the UNITROL HMI for a clean startup sequence. Clear any latched faults with a manual reset before returning the generator to service.

Self-addressing note: The UNS0868B-P V2 does not require software-based slot addressing. The board is recognized by the UNITROL controller via hardware ID pins on the backplane connector. No parameter download is needed after replacement — the controller reads the board type automatically on the next power cycle.

Reliability in Harsh Conditions

ABB designed the UNITROL excitation platform for continuous duty in environments that would destroy consumer-grade electronics. The UNS0868B-P V2 reflects that design philosophy at the component level. The switching topology uses a resonant LLC converter architecture that maintains regulation efficiency above 88% across the full input voltage range, reducing internal heat generation compared to hard-switched alternatives. The V2 revision added a dedicated aluminum heatsink clip over the main switching FETs, addressing the thermal derating issue documented in ABB Service Bulletin SB-UNITROL-2014-003.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal, 5–150 Hz, 1 g) and IEC 60068-2-64 (random vibration), covering the mechanical stress profiles found in shipboard propulsion drives and turbine hall installations where structural vibration is continuous. The PCB uses conformal coating on all signal-layer traces, providing protection against condensation and airborne contaminants — a critical feature in coastal power plants and offshore platforms where salt-laden air accelerates corrosion on uncoated boards.

Operating temperature range is –10 °C to +55 °C with derating above 45 °C ambient, and storage is rated to –40 °C to +70 °C. Units shipped from our Xiamen warehouse are packed with silica gel desiccant and humidity indicator cards inside anti-static shielding bags, then double-boxed with foam inserts. The board arrives at your site in the same condition it left our shelf.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily consolidated freight departures to DHL and FedEx international gateways. For urgent orders placed before 15:00 CST, same-day dispatch is standard. Here is what the transit timeline looks like in practice:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL Express — 1 to 2 business days door-to-door.
• Middle East (UAE, Saudi Arabia, Qatar): FedEx International Priority — 2 to 3 business days. We handle all export documentation including commercial invoice, packing list, and certificate of origin.
• Europe (Germany, UK, Netherlands, Spain): DHL Express — 3 to 4 business days. For EU imports, we provide HS code 8537.10 classification and EUR.1 movement certificates on request.
• North America (USA, Canada, Mexico): FedEx International Priority — 3 to 5 business days. We pre-clear customs documentation to avoid broker delays at major entry ports.
• South America and Africa: DHL or FedEx depending on destination — 4 to 7 business days. We advise on import duty implications for each country before shipment.

Every shipment includes a tracking number sent to your email within 2 hours of dispatch. For critical plant shutdowns, we can arrange Saturday pickup with DHL on request. If your site requires a specific carrier due to plant procurement policy, contact us before ordering and we will accommodate.

Export compliance: All shipments are processed under standard commercial export regulations. No export license is required for this product to most destinations. We will advise if your destination country has specific import restrictions before confirming the order.
