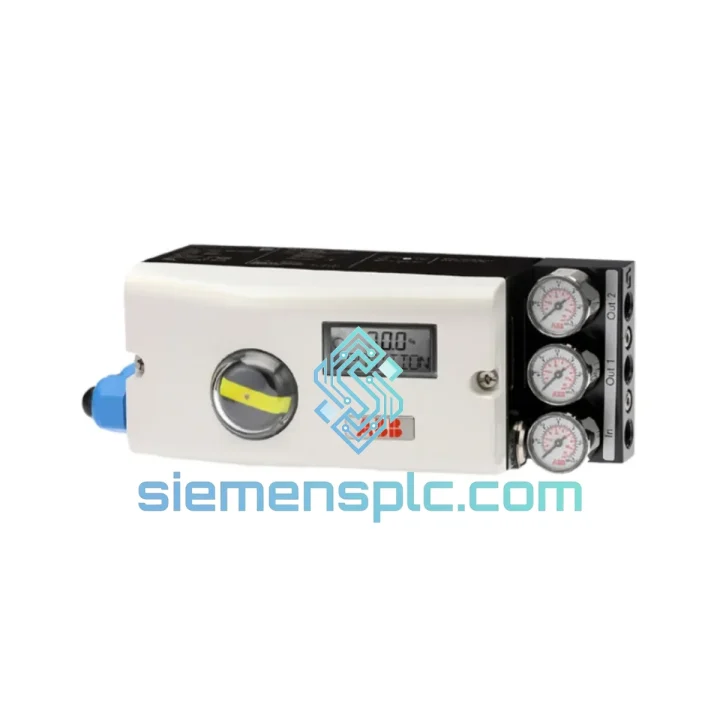

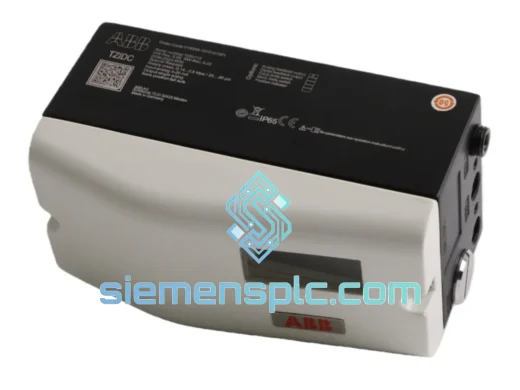

ABB V18345-1010121001 Valve Positioner – TZIDC Series

ABB V18345-1010121001 TZIDC Pneumatic Valve Positioner — Precision Positioning in Closed-Loop Process Control

The ABB V18345-1010121001 is a microprocessor-controlled electropneumatic valve positioner belonging to the TZIDC product family. Its primary function within a control loop is to enforce a deterministic relationship between the 4–20 mA command signal issued by the DCS or PLC and the mechanical stroke position of the pneumatic actuator. Without a positioner, friction, hysteresis, and supply pressure fluctuations introduce steady-state error into the valve position; the V18345-1010121001 eliminates these deviations through a continuous closed-loop comparison between the commanded setpoint and the contactless position feedback signal, issuing corrective pneumatic output until the error integral reaches zero.

The unit integrates a HART 5/7 communication stack, enabling bidirectional digital communication superimposed on the 4–20 mA analog loop. This allows asset management systems to read live diagnostic variables — valve signature data, partial stroke test results, friction coefficients, and actuator travel statistics — without interrupting the process. The auto-calibration routine (initiated via HART command or local pushbutton) automatically determines stroke limits, sets zero and span, and characterizes the installed actuator’s dynamic response, reducing commissioning time from hours to under ten minutes on a standard linear globe valve installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The V18345-1010121001 is built around a 16-bit microcontroller that executes the position control algorithm at a sampling rate sufficient to maintain closed-loop stability across actuator sizes from 50 cm² to 1000 cm² effective area. The control output drives a piezoelectric I/P converter — not a conventional coil-and-nozzle flapper — which provides several measurable advantages: the piezo element draws no steady-state current, eliminating the thermal drift associated with resistive coil heating; its response bandwidth exceeds 200 Hz, allowing the controller to suppress high-frequency disturbances before they propagate to the actuator; and the absence of moving mechanical parts in the I/P stage extends mean time between failures (MTBF) compared to traditional electropneumatic transducers.

The position feedback path uses a contactless Hall-effect sensor coupled to a permanent magnet mounted on the positioner’s feedback shaft. This arrangement eliminates the potentiometric wiper wear that limits the service life of older analog positioners. The sensor output is linearized in firmware, and the calibration coefficients are stored in non-volatile EEPROM, ensuring that the zero and span settings survive power cycling without drift.

EMC immunity is achieved through a multi-layer approach: the electronics board is housed inside a die-cast aluminum enclosure that provides Faraday shielding against radiated fields; all signal lines entering the enclosure pass through RC filter networks that attenuate conducted interference above 10 kHz; and the HART modem circuit uses transformer isolation to prevent ground loop currents from corrupting the digital communication channel. The unit meets IEC 61000-4-2 (ESD), IEC 61000-4-3 (radiated immunity), and IEC 61000-4-6 (conducted immunity) at severity level 3, making it suitable for installation in switchgear rooms and motor control centers where high-frequency switching transients are present.

The pneumatic output stage uses a 3/3-way spool valve with a spring-centered neutral position. In the event of instrument air supply failure, the spool returns to center, trapping air in the actuator chamber and holding the valve at its last position — a fail-freeze behavior that prevents process upsets caused by sudden valve movement during utility outages. This behavior is distinct from fail-open or fail-close spring-return actuators and must be accounted for in the safety instrumented system (SIS) design.

System Integration Benefits

• Deterministic closed-loop response: The PID control algorithm with configurable gain, integral time, and derivative filter ensures that valve position tracks the setpoint within ±0.5% of span under steady-state conditions, reducing process variability and improving product quality consistency in continuous manufacturing.
• HART asset management integration: All 35 HART universal and common-practice commands are implemented, enabling full integration with ABB Asset Vision, Emerson AMS, Honeywell FDM, and any FDT/DTM-compliant asset management platform without additional gateways.
• Partial stroke testing without process interruption: The integrated PST function strokes the valve to a configurable percentage of travel (typically 10–15%) and measures the actuator’s force-balance response, verifying mechanical integrity of the valve-actuator assembly without taking the control loop offline — a critical requirement for SIL 2 safety loop proof testing.
• Valve signature diagnostics: The positioner can record and transmit a full valve signature (position vs. applied pressure) during a controlled stroke, allowing maintenance engineers to detect seat wear, packing friction increases, and actuator spring degradation before they cause control loop degradation.
• Universal actuator compatibility: The NAMUR/VDI-VDE 3845 mounting interface and the configurable stroke range (10–130 mm linear, 30°–100° rotary) allow a single positioner model to be applied across globe valves, butterfly valves, and ball valves without model-specific variants, simplifying spare parts inventory.
• Intrinsically safe and explosion-proof certification: ATEX II 2G Ex d IIC T6 Gb and IECEx certification allow installation in Zone 1 hazardous areas without additional barriers or enclosures, reducing installation material cost and cable routing complexity in petrochemical and offshore applications.
• Low air consumption: At less than 0.5 Nm³/h steady-state consumption, a plant with 200 positioners consumes less than 100 Nm³/h of instrument air from this source alone — a measurable reduction in compressor load and associated energy cost compared to older pneumatic relay designs consuming 1.5–3.0 Nm³/h per unit.
• Non-volatile parameter storage: All calibration data, control parameters, and diagnostic counters are stored in EEPROM with a write endurance of 100,000 cycles. Configuration can be cloned from one unit to another via HART handheld or asset management software, enabling rapid replacement without re-commissioning.

Quality Assurance & Global Logistics

Every ABB V18345-1010121001 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and carries the original ABB factory label, serial number, and CE/ATEX marking. Pre-shipment inspection includes visual examination of the housing, label integrity verification, model and serial number cross-check against the packing list, and confirmation of original manufacturer packaging with intact tamper-evident seals.

Units are shipped from our warehouse in Xiamen, China. Xiamen is served by Xiamen Gaoqi International Airport (XMN) and the Port of Xiamen, providing access to daily air freight services to major industrial hubs including Frankfurt, Dubai, Singapore, Houston, and Rotterdam. Standard air freight transit times are 3–5 business days to Europe and the Middle East, 5–7 business days to North America, and 2–3 business days to Southeast Asia. Sea freight options are available for bulk orders where lead time permits.

Export documentation includes commercial invoice, packing list, certificate of origin, and — upon request — a manufacturer’s certificate of conformity. Dangerous goods classification: the V18345-1010121001 is not classified as dangerous goods under IATA or IMDG regulations and ships without restriction on passenger or cargo aircraft.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed through direct coordination with our technical team; defective units are replaced or credited after inspection. Traceability documentation including batch records and test reports is available for OEM and EPC procurement teams upon written request.
