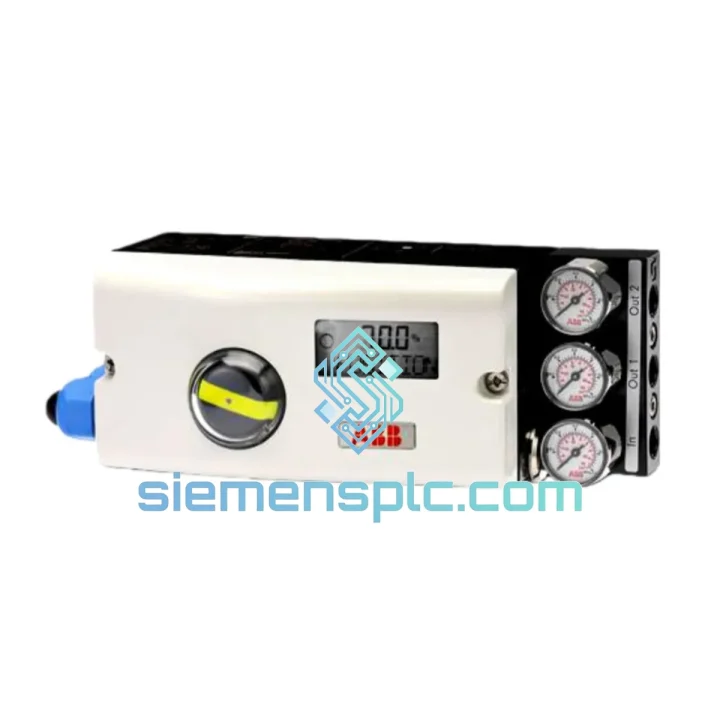

ABB V18347-2041150001 Electro-Pneumatic Positioner – TZIDC Series

ABB V18347-2041150001 TZIDC Digital Positioner — Precision Valve Positioning in Closed-Loop Process Control

The ABB V18347-2041150001 is a microprocessor-based electro-pneumatic positioner belonging to the TZIDC (Intelligent Digital Positioner) product family. It converts a 4–20 mA analog command signal — or a HART digital setpoint — into a calibrated pneumatic output pressure that drives linear or rotary pneumatic actuators to a defined stem position. The device operates as the final control element interface in a PID loop, translating the controller output into mechanical valve travel with a positioning repeatability of ±0.1% of span. This level of accuracy is not incidental; it is the product of a closed-loop internal feedback architecture where a non-contact Hall-effect position sensor continuously compares actual stem travel against the commanded setpoint and corrects via a proportional-integral algorithm executed at the embedded controller level.

In process industries where valve positioning error directly translates to product quality deviation, energy waste, or safety risk, the V18347-2041150001 provides the deterministic response characteristics required by modern control philosophy. Its EXPERT+ auto-calibration routine characterizes the full actuator travel range, friction profile, and spring rate at commissioning, storing these parameters in non-volatile memory. Subsequent control cycles reference this baseline to compensate for mechanical drift without operator intervention.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Internal Feedback Architecture: The V18347-2041150001 implements a two-stage control loop. The outer loop is the process PID controller residing in the DCS or PLC. The inner loop — entirely within the positioner — is a high-speed position servo that closes at the actuator stem. The inner loop sampling rate is significantly faster than the outer loop update cycle, which prevents actuator hunting and ensures that any mechanical disturbance (supply pressure fluctuation, friction spike, or load change) is corrected before it propagates upstream as a process variable deviation. This cascade architecture is fundamental to achieving the sub-0.1% hysteresis specification under dynamic process conditions.

Non-Contact Position Sensing: The Hall-effect sensor assembly eliminates the mechanical wear associated with potentiometer-based feedback found in older positioner generations. There are no wiper contacts to oxidize or abrade. The sensor output is a continuous analog voltage proportional to magnet angular displacement, digitized by the embedded ADC at 12-bit resolution. This translates to a theoretical position resolution of 0.024% of span for a 100 mm linear stroke — well below the 0.1% control dead band. The sensor is hermetically sealed within the housing, unaffected by condensation, dust ingress, or vibration up to 4g (10–200 Hz per IEC 60068-2-6).

EMC Design and Shielding: The electronics module is housed in a die-cast polyamide enclosure with internal EMC shielding. The 4–20 mA input circuit incorporates transient voltage suppression (TVS) diodes rated for ±1 kV surge per IEC 61000-4-5, protecting the microcontroller from field-induced transients common in high-voltage switchgear environments. The HART modem circuit uses a bandpass filter centered at 1200/2200 Hz to reject power-line harmonics and maintain FSK signal integrity at cable lengths up to 3000 m (with appropriate loop resistance).

Pneumatic Stage Design: The I/P (current-to-pressure) converter uses a force-balance nozzle-flapper mechanism driven by a miniature torque motor. The nozzle back-pressure is amplified by a relay stage with a volume booster ratio sufficient to drive actuators with effective volumes up to 1.5 liters without external volume boosters in most standard applications. The relay incorporates a bleed orifice sized to maintain stable output pressure under zero-flow steady-state conditions, minimizing instrument air consumption to below 0.05 Nm³/h — a relevant parameter in facilities with compressed air cost accounting.

EXPERT+ Auto-Calibration Logic: During the initialization sequence, the positioner drives the actuator through full travel in both directions at a controlled ramp rate, recording stem position versus output pressure at 256 sample points. The resulting characterization curve is stored in EEPROM and used to generate a linearization table that compensates for actuator non-linearity, spring hysteresis, and packing friction. This stored profile also serves as the baseline for the continuous diagnostic comparison — any deviation exceeding a configurable threshold triggers a diagnostic flag visible via HART or the local LCD.

System Integration Benefits

• Deterministic Inner-Loop Response: The embedded position servo corrects actuator deviations within milliseconds, decoupling the process controller from mechanical disturbances and enabling tighter outer-loop PID tuning without instability risk.
• HART 7 Bidirectional Communication: Full parameter read/write, device description (DD), and FDT/DTM support allow integration with ABB System 800xA, Siemens PCS 7, Honeywell Experion, and Yokogawa CENTUM VP without gateway hardware.
• Partial Stroke Testing (PST) Without Process Interruption: The built-in PST function strokes the valve to a user-defined partial position (typically 10–30%) and returns to setpoint, verifying mechanical operability of ESD valves in SIL loops without requiring a process shutdown — directly reducing proof-test interval costs.
• Continuous Valve Signature Monitoring: The positioner logs stem position versus applied pressure at configurable intervals, building a valve signature database. Deviations from the baseline signature indicate developing faults — seat erosion, packing wear, actuator spring fatigue — enabling condition-based maintenance scheduling rather than time-based replacement.
• Split-Range Configuration: Two positioners can be configured for split-range operation (e.g., 4–12 mA / 12–20 mA) on a single 4–20 mA loop, controlling two valves in sequence without additional signal conditioning hardware.
• Fail-Safe Position Configurability: The fail position (fail-open, fail-closed, or fail-in-place) is software-configurable via HART, eliminating the need for mechanical spring selection changes when process safety requirements are revised during plant lifecycle.
• Local Operation and Commissioning: The 4-button LCD interface allows full parameter configuration, manual positioning, and diagnostic readout without a HART communicator — reducing commissioning tool dependency in remote field locations.
• Wide Ambient Temperature Range (–40 °C to +85 °C): Qualified for arctic pipeline installations and high-ambient refinery environments within a single hardware variant, eliminating the need for separate cold-weather or high-temperature model selection.
• ATEX/IECEx Zone 1 Certification: Intrinsically safe (Ex ia) and flameproof (Ex d) certifications allow installation in Zone 1 hazardous areas without additional barriers in the Ex d configuration, simplifying installation design.
• Low Air Consumption: Steady-state air consumption below 0.05 Nm³/h reduces instrument air system load, relevant in facilities where compressed air generation capacity is a constraint or where air quality (dew point, particulate) is marginal.

Quality Assurance & Global Logistics

Every ABB V18347-2041150001 unit dispatched from our Xiamen, China facility is sourced through verified ABB-authorized distribution channels. Each unit is inspected against the following protocol before shipment:

• Visual inspection: housing integrity, label legibility, connector condition, and original factory seal verification
• Serial number cross-reference against ABB factory production records
• Functional bench verification: 4–20 mA input response, output pressure linearity check at 0%, 50%, and 100% setpoint
• Original ABB packaging confirmed intact with factory calibration certificate enclosed
• Certificate of Conformance (CoC) available on request for project documentation

We supply only genuine, new-in-box ABB product. No refurbished, reconditioned, or grey-market units are handled. The 12-month warranty covers manufacturing defects under normal operating conditions per ABB standard warranty terms.

Logistics from Xiamen, China: Standard export documentation (commercial invoice, packing list, HS code 8481.20) is prepared for all international shipments. DHL Express, FedEx International Priority, and sea freight consolidation are available depending on order volume and urgency. Typical DHL transit times: Southeast Asia 2–3 days, Europe 4–6 days, North America 5–7 days. Export compliance documentation for ATEX-certified equipment is prepared per destination country import requirements.
