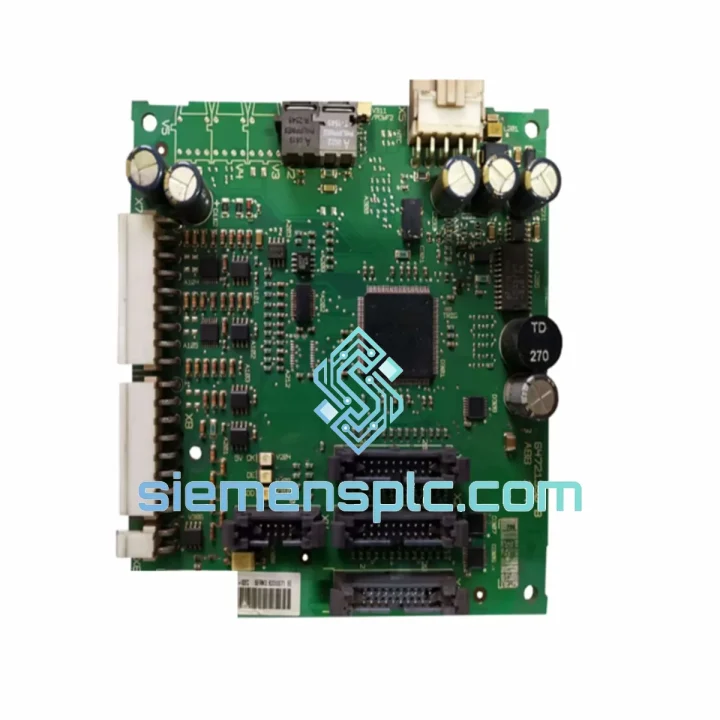

ABB ZINP-571 Main Circuit Interface Board

ABB ZINP-571 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your line is down. Every hour costs real money — production losses, penalty clauses, idle labor. The ABB ZINP-571 Main Circuit Interface Board is the exact component standing between you and full restart. We stock it. We ship it. DHL Express from Xiamen, door-to-door in 3–5 business days to most industrial hubs worldwide. No waiting on ABB lead times. No chasing distributors. One call, one part, one solution.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work on ABB drives, these are the failure patterns and swap pitfalls that catch engineers off guard on the ZINP-571:

Common Fault Signatures Pointing to ZINP-571 Failure:

• Fault F-0001 / F-0002 (DC Bus Measurement Error): The ZINP-571 carries DC bus voltage sensing circuits. If the drive trips on DC bus faults immediately at power-up with no load connected, suspect the interface board before the capacitor bank.
• Fault F-0022 (Output Phase Loss): The board handles current measurement signal routing. Intermittent F-0022 with no actual phase loss on the output terminals — check the ZINP-571 ribbon connectors for micro-fractures caused by vibration fatigue.
• Drive powers up but IGBT gate signals absent: The ZINP-571 is in the gate drive signal path. If you have control power, panel communication, and no output — this board is the prime suspect before the IGBT module itself.
• Random resets under load with no clear fault code: Thermal cycling causes solder joint fatigue on the ZINP-571’s SMD components. Reflow or replace — do not waste time re-parameterizing the drive.

Replacement Procedure — Field Checklist:

• ✅ Isolate and lock out: Full LOTO on the drive cabinet. Verify DC bus discharge below 50 VDC with a calibrated meter — ACS800 bus capacitors hold charge for up to 5 minutes after power-off.
• ✅ Document fiber positions: The DDCS fiber-optic cables on the ZINP-571 are color-coded but photograph them before removal. Swapped TX/RX fibers will cause immediate DDCS communication fault on restart.
• ✅ No DIP switches on ZINP-571: Unlike some ABB option boards, the ZINP-571 does not carry user-configurable DIP switches. Node addressing is handled by the drive’s main control board (RMIO/RDCU). No hardware configuration required on the replacement board.
• ✅ Firmware compatibility: The ZINP-571 is a passive interface board — it carries no onboard firmware. Firmware version on the RMIO/RDCU control board does not affect ZINP-571 compatibility. Any hardware revision of ZINP-571 is a direct drop-in.
• ✅ Connector torque: The main ribbon connector uses a ZIF (zero insertion force) locking tab. Do not force it. Lift the tab fully before insertion, then press down to lock. A partially seated connector causes intermittent faults that are extremely difficult to diagnose remotely.
• ✅ Post-installation check: Power up with no motor connected. Confirm DC bus measurement parameters (Group 01 on ACS800) read correctly before connecting load. If DC bus voltage reads zero or erratic, re-seat the board before suspecting other components.

Reliability in Harsh Conditions

The ZINP-571 is built to ABB’s industrial-grade PCB specification — not commercial grade. That distinction matters in the environments where these drives actually operate.

The board’s PCB substrate is FR4 with conformal coating on production variants, providing resistance to condensation and airborne contaminants common in paper mills, cement plants, and coastal installations. Solder joints are manufactured to IPC Class 2 standards with lead-free alloy, maintaining integrity through thermal cycles from cold startup to full-load operating temperature.

Vibration resistance is validated against EN 60068-2-6 test profiles — sinusoidal vibration across 10–150 Hz at 1g, covering the resonance bands typical of pump and compressor installations. The board’s mounting points distribute mechanical stress away from the DDCS fiber connectors, which are the most vibration-sensitive interface on the assembly.

For high-humidity environments (tropical installations, outdoor enclosures with inadequate IP rating), inspect the conformal coating condition before assuming board failure. Coating delamination from thermal cycling can allow surface leakage currents that mimic board failure. A visual inspection under UV light will reveal coating integrity before you commit to a replacement.

All units we ship have been stored in climate-controlled conditions with desiccant packaging. Boards are inspected for corrosion, connector damage, and component integrity before dispatch. We do not ship boards that show evidence of prior field use without explicit disclosure.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international gateways.

• Order cutoff: 14:00 CST — orders confirmed with payment before cutoff ship same business day.
• DHL Express Worldwide: 3–5 business days to Europe, Middle East, Southeast Asia, and Australia. 4–6 business days to North and South America.
• FedEx International Priority: Available on request — typically 2–4 business days to major hubs.
• Documentation: Commercial invoice, packing list, and certificate of origin provided with every shipment. HS Code 8538.90 declared for customs clearance. We can provide a detailed product description letter for customs if your country requires additional documentation for electronic components.
• Packaging: Anti-static bag, foam-lined rigid box, humidity indicator card. The ZINP-571 arrives ready to install — not just ready to unbox.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.

For urgent plant shutdowns requiring weekend dispatch or charter courier, contact us directly on WhatsApp. We handle emergency logistics cases individually.
