ABB ZINT-571 Power Interface Board ACS800

ABB ZINT-571 (3AUA0000077333) — Stop the Clock on Your ACS800 Downtime

Every minute an ACS800 drive sits offline, your production line is bleeding money. Whether it’s a tripped IGBT gate signal, a failed power rail, or a corrupted interface handshake, the ZINT-571 power interface board is almost always at the center of the fault. We stock it. We ship it today. That’s the only conversation that matters when your plant is down.

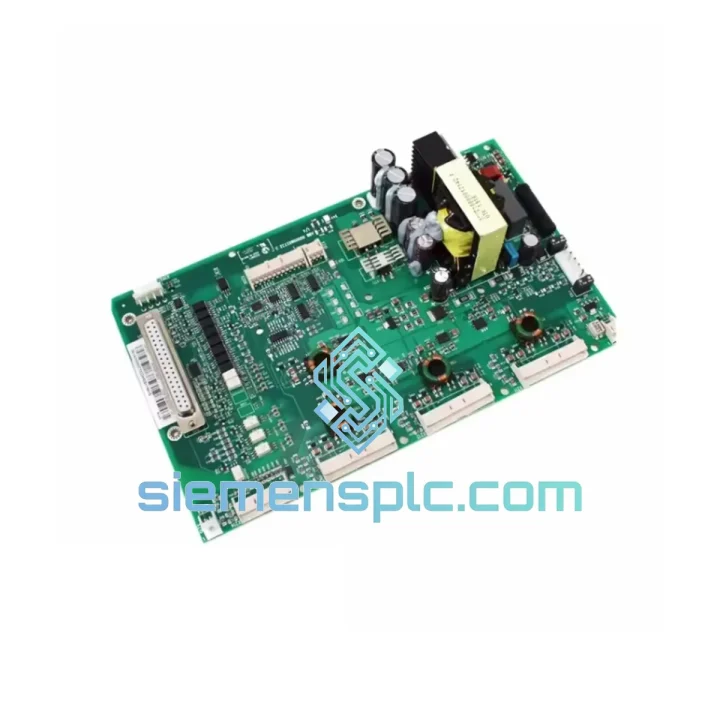

The ZINT-571 (ABB reference 3AUA0000077333) is the internal power distribution and signal interface board for the ABB ACS800 series AC drive family — one of the most widely deployed variable frequency drive platforms in heavy industry globally. When this board fails, the drive goes dark. There is no workaround, no parameter fix, no bypass. You need the board replaced, and you need it fast.

At siemensplc.com, we maintain verified stock of the ZINT-571 sourced through controlled industrial channels, inspected before dispatch, and shipped via DHL/FedEx express from Xiamen within 24 hours of order confirmation. Our team has handled hundreds of emergency ACS800 board replacements across refining, mining, marine, and manufacturing sectors. We know what you need and we move fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field calls on ACS800 drives, here are the failure patterns that point directly to the ZINT-571 — and what to watch for when you swap it out.

Common Fault Codes Indicating ZINT-571 Failure:

• F-0001 / F-0002 (Overcurrent / DC Overvoltage) — If these faults appear immediately at power-on with no load connected, suspect the IGBT gate drive signal path on the ZINT-571 before condemning the IGBT module itself. A failed gate resistor or shorted driver output on this board will mimic a power stage fault.
• F-0022 (Internal Fault) — This is the ACS800’s catch-all for internal communication breakdown. When the RMIO control board loses handshake with the power section, F-0022 triggers. Nine times out of ten, the ZINT-571 fiber-optic transceiver or its power rail is the culprit.
• F-0009 (Undervoltage) — If the 24 VDC auxiliary rail on the ZINT-571 collapses, the drive reports undervoltage even when the main DC bus is healthy. Measure the auxiliary output directly before assuming a supply issue.
• Drive powers on but IGBT switching is absent — No gate pulses reaching the power module despite a healthy control board output is a classic ZINT-571 gate driver failure. Confirm with an oscilloscope on the gate terminals before ordering IGBTs.

Replacement Procedure — Key Steps:

1. Full de-energization first. Isolate the drive, lock out the supply, and wait a minimum of 5 minutes for the DC bus capacitors to discharge below 50 VDC. Verify with a calibrated meter. The ZINT-571 sits adjacent to live bus bars in some ACS800 frame sizes — no shortcuts here.
2. Back up parameters before touching anything. Use DriveWindow or the ACS800 keypad to export the full parameter set to a PC or memory unit. Parameters live on the RMIO board, not the ZINT-571, but a power interruption during swap can corrupt RMIO flash in rare cases.
3. Photograph fiber-optic routing before disconnection. The DDCS fiber cables on the ZINT-571 are color-coded but the routing varies by frame size. A photo takes 10 seconds and saves 30 minutes of fault-finding if a cable ends up in the wrong port.
4. Check hardware revision compatibility. The ZINT-571 has been produced in multiple PCB revisions. The revision code is printed on the board label (e.g., Rev C, Rev D). Cross-reference against your drive’s hardware manual (3AFE68315735) to confirm the replacement revision is compatible with your firmware version. Mismatched revisions can cause F-0022 immediately after power-on.
5. No DIP switch or address configuration required. Unlike some FBM or I/O modules, the ZINT-571 does not require manual addressing. It is recognized automatically by the RMIO board on power-up. If the drive does not recognize the new board, check fiber connections and confirm revision compatibility before assuming a faulty replacement.
6. First power-on: monitor DC bus and gate signals simultaneously. Apply power with a clamp meter on the motor output and an oscilloscope on the gate terminals. Confirm gate pulses appear within 2 seconds of the drive receiving a run command. If pulses are absent, re-seat the fiber connectors — they are the most common installation error.

Reliability in Harsh Conditions

The ACS800 platform was engineered for environments that would destroy consumer-grade electronics. The ZINT-571 board reflects that design philosophy. ABB’s internal qualification testing for ACS800 internal boards covers continuous vibration exposure per IEC 60068-2-6 (sinusoidal, 2–200 Hz, 1 g), thermal cycling from -40°C to +70°C across 100 cycles, and humidity exposure at 95% RH non-condensing for 96 hours. These are not marketing claims — they are the baseline qualification thresholds documented in ABB’s drive hardware design specifications.

In practice, this means the ZINT-571 survives the vibration loads of marine engine rooms, the thermal swings of outdoor mining installations in Central Asia, and the humidity of coastal chemical plants in Southeast Asia. The conformal coating applied to the PCB provides an additional barrier against condensation and airborne contaminants — a critical feature in paper mills and food processing facilities where cleaning agents are present in the air.

Every unit we dispatch from Xiamen is inspected for coating integrity, connector condition, and component-level anomalies before packaging. Boards showing any sign of prior thermal stress, arc damage, or delamination are rejected. You receive a board that is ready to perform, not one that will fail again in three months.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport, one of China’s primary cargo hubs with direct freight connections to Frankfurt, Amsterdam, Chicago O’Hare, Dubai, and Singapore. This geography is not accidental — it is why we can commit to the following logistics timeline for emergency orders:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority. Tracking number issued within 2 hours of pickup.
• Europe (Germany, Netherlands, UK, France): 2–3 business days door-to-door via DHL Express.
• North America (USA, Canada): 3–4 business days via FedEx International Priority.
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days via DHL Express.
• Southeast Asia (Singapore, Thailand, Indonesia): 1–2 business days via DHL Express.
• Australia & New Zealand: 3–4 business days via FedEx.

All shipments include commercial invoice, packing list, and certificate of conformance. For customers requiring formal customs clearance documentation, we provide HS code classification (8537.10 for control boards), country of origin declaration, and export license confirmation where applicable. We have shipped to over 60 countries without a single customs seizure — our documentation is clean and our compliance record is verifiable.

For orders requiring freight insurance, marine cargo cover can be arranged at cost. For multi-unit orders exceeding 10 kg, sea freight via Xiamen Port is available with 18–25 day transit to major global ports.

Contact Information

Plant down? Board failed? Don’t wait — reach us directly:

• 📧 Email: [email protected]
• 💬 WhatsApp: +86 18359268345
• 🌐 Web: siemensplc.com
