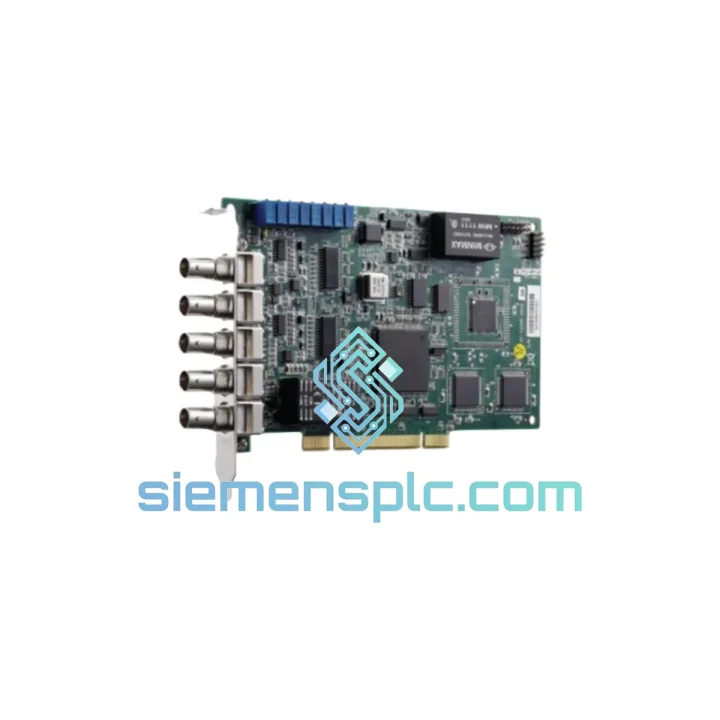

ADLINK PCI-9810 Data Acquisition Card

ADLINK PCI-9810 Multifunction DAQ Card — Stop the Bleed, Restore Your Signal Chain Now

Every minute your analog input chain is down, your process is running blind. No feedback from pressure transducers. No thermocouple data from your furnace zone. No vibration signature from your spindle bearing. The ADLINK PCI-9810 is the 32-bit PCI multifunction data acquisition card that sits at the center of your measurement infrastructure — and when it fails, the entire SCADA loop collapses with it. We stock the PCI-9810 in Xiamen and ship globally via DHL and FedEx Express. If you are reading this during a shutdown, contact us now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The PCI-9810 fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Symptom 1 — Card not enumerated in Device Manager (Windows): The PCI-9810 relies on the host BIOS correctly assigning IRQ and I/O base address resources. If the card is not visible after seating, first check BIOS PCI slot configuration — some industrial PCs lock PCI resource allocation after initial setup. Clear CMOS or manually assign a free IRQ. If the card still does not enumerate, the PCI bridge chip on the card may have failed — this is the most common hardware fault on aged units operating in high-vibration environments.

Symptom 2 — All analog input channels read rail voltage (±10V) or zero: This typically indicates a failed multiplexer (MUX) IC on the analog front end, not the ADC itself. Before condemning the card, verify that the 68-pin SCSI connector is fully seated and that the ACL-10168 terminal board is not introducing a short. Disconnect the terminal board and measure channel 0 directly at the connector with a known reference voltage. If the ADC still reads incorrectly, the MUX or instrumentation amplifier stage has failed.

Symptom 3 — Intermittent data dropouts at high sampling rates: The PCI-9810’s 1K FIFO provides approximately 9 ms of buffer at 110 kS/s. If your host CPU is running a real-time task at high priority and starving the PCI DMA controller, FIFO overflow errors will appear in the DAQPilot error log (error code -9801 or equivalent). Reduce sampling rate to 50 kS/s, or move the acquisition task to a dedicated thread with elevated priority. If dropouts persist, the PCI bus arbiter on the motherboard may be the bottleneck — test the card in a different PCI slot.

Replacement configuration checklist:

• The PCI-9810 does not use hardware DIP switches or jumpers for address assignment — all configuration is software-defined via DAQPilot. No physical reconfiguration is required on card swap.
• Verify DAQPilot driver version matches the OS. Driver package v3.6.8 or later is required for Windows 10 64-bit. Earlier versions will install but produce incorrect ADC scaling on channels 8–15.
• After seating the replacement card, run the DAQPilot self-calibration routine before connecting field wiring. This writes fresh calibration coefficients to the card’s on-board EEPROM and compensates for any offset drift from storage.
• If replacing a card in a LabVIEW application, confirm the DAQ channel name mapping in NI MAX — the PCI-9810 enumerates as a generic NI-DAQmx compatible device only if the ADLINK NI-DAQmx wrapper driver is installed. Without it, LabVIEW will not detect the card.
• For Linux deployments, the ADLINK ECAT-SS driver package must match the kernel version. Mismatched kernel headers will cause the module to fail to compile. Confirm kernel version with uname -r before downloading the driver.

Reliability in Harsh Conditions

The PCI-9810 is built to the environmental tolerances that industrial PCs demand — not the benign conditions of a laboratory rack. The card’s PCB uses a conformal coating process on the analog front-end section, providing resistance to condensation and airborne particulates common in factory environments. The half-size form factor reduces mechanical leverage on the PCI edge connector, which directly lowers the risk of connector fatigue cracking under continuous vibration loads — a failure mode that affects full-length cards disproportionately.

The analog input stage uses an instrumentation amplifier topology with a common-mode rejection ratio (CMRR) exceeding 70 dB at 60 Hz. In environments with heavy motor drive switching noise on the ground plane, this CMRR specification is the difference between a clean 12-bit reading and a noise floor that renders the ADC useless below 8 effective bits. The on-board voltage reference is a precision buried-Zener type, maintaining ±0.01% stability across the 0°C to 60°C operating range — critical for applications where ambient temperature swings significantly between day and night shifts.

The 16-bit DIO section uses TTL-compatible buffers with 8 mA sink/source capability per channel, sufficient to drive optocoupler inputs directly without external current-limiting resistors in most standard configurations. The DIO lines are protected against ESD transients to IEC 61000-4-2 Level 2, providing a degree of protection against the electrostatic discharge events that are routine in dry manufacturing environments.

Global Express Logistics

Our dispatch process is built around one objective: getting the replacement card into your hands before your next production shift starts.

Orders confirmed before 14:00 CST (UTC+8) are packed and handed to the carrier the same business day from our Xiamen warehouse. We ship exclusively via DHL Express Worldwide and FedEx International Priority for time-critical orders — both services provide door-to-door transit times of 2–4 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East.

Every shipment includes a commercial invoice with accurate HS code classification (8471.80 for DAQ cards), a packing list, and a certificate of origin. For destinations requiring import permits or end-user declarations, our logistics team prepares the documentation in parallel with packing — no delays waiting for paperwork. Tracking numbers are sent via email within 2 hours of carrier pickup. For WhatsApp-based order tracking, send your order reference to +86 18359268345 and our team will respond with live tracking status.

We have shipped to over 50 countries. Customs clearance issues are rare with our documentation package, but if your shipment is held, our team provides direct support to your customs broker with supplementary technical documentation on request.
