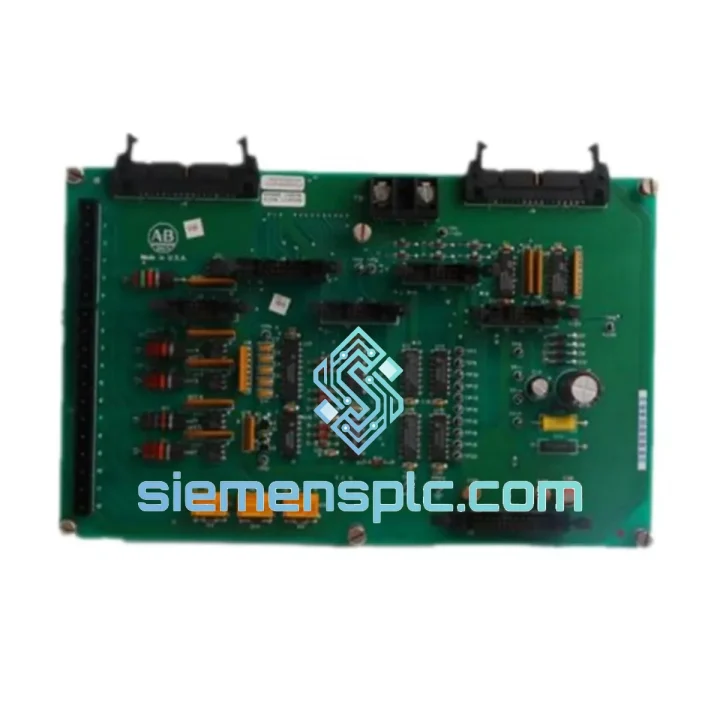

Allen-Bradley 1336-BDB-SP30D PCB Gate Drive Board

Allen-Bradley 1336-BDB-SP30D Gate Drive Board — Stop the Clock on Your Downtime

Every minute your 1336 PLUS drive sits dead on the floor, your production line is bleeding money. The Allen-Bradley 1336-BDB-SP30D (PCB ref: 74101-169-54) is the IGBT gate drive board that sits at the heart of your drive’s power stage — and when it fails, nothing else matters until it’s replaced. We stock this board in Xiamen, China, and we ship globally via DHL and FedEx Express. Place your order before 3 PM CST and it moves the same day.

This is not a generic listing. This is a field-grade, sourced-and-verified replacement for one of the most common failure points in the Allen-Bradley 1336 PLUS AC drive family. If you’re reading this at 2 AM with a fault code on your panel, you’re in the right place.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1336-BDB-SP30D fails in predictable ways. Here’s what 10 years of field calls have taught us:

Common Fault Codes Pointing to This Board:

• F002 — Overcurrent / Ground Fault: If this trips immediately at power-up with no load connected, suspect gate drive desaturation. The optocouplers on this board degrade over time, causing asymmetric gate timing and phantom overcurrent trips.
• F004 — Transistor Fault: Direct indicator of gate drive failure. Before condemning the IGBT module, swap this board first — it’s cheaper and faster.
• F012 — Hardware Overcurrent: Often caused by a failed gate drive bootstrap circuit. Check the ±15 V rails on the board with a scope before assuming the power stage is gone.
• Drive powers up but motor won’t rotate / runs rough: One or more gate channels may be dead. The motor will exhibit cogging, overheating, or single-phase behavior.

Step-by-Step Replacement Procedure:

1. Isolate and lock out. Confirm DC bus voltage is below 50 VDC with a calibrated meter before touching anything. The 1336 PLUS bus capacitors hold charge for several minutes after power-off.
2. Document your configuration. Before removing the old board, photograph the DIP switch positions and any jumper settings. The SP30D has configuration switches for current feedback scaling — these must be replicated exactly on the replacement board.
3. Discharge and remove. Disconnect the gate drive ribbon cable and the ±15 V power connector. Remove the four M4 standoff screws. Lift the board straight up — do not flex it against the IGBT module pins.
4. Inspect the IGBT module. While the board is out, visually inspect the IGBT module for cracking, burn marks, or electrolyte residue from failed gate drive capacitors. A failed gate drive board can stress the IGBTs — confirm they’re intact before reinstalling.
5. Install the replacement. Seat the new 1336-BDB-SP30D onto the standoffs. Reconnect the ribbon cable — verify pin 1 orientation. Reconnect the power connector.
6. Replicate DIP switch settings. Match the switches to your photograph. Incorrect current scaling will cause immediate overcurrent faults or, worse, silent under-protection.
7. Power up and monitor. Apply power with no motor connected. Verify ±15 V rails are present on the board test points. Then connect the motor and run a low-speed jog to confirm all six gate channels are firing symmetrically.
8. Clear fault history. Use DriveExplorer or the HIM module to clear the fault log. A clean fault log baseline is essential for future diagnostics.

Note: If the drive was running in a high-cycle application (e.g., crane hoist, press), inspect the gate drive board capacitors for bulging even on the replacement unit before installation. Thermal cycling degrades electrolytic capacitors faster than rated.

Reliability in Harsh Conditions

The 1336 PLUS platform was engineered for industrial environments that would destroy consumer-grade electronics. The gate drive board reflects that design philosophy. The PCB substrate is rated for continuous operation at elevated ambient temperatures, and the optocoupler isolation stage maintains its timing accuracy even under significant thermal stress. Conformal coating on production-run boards provides baseline protection against humidity and condensation — a common issue in coastal and tropical plant environments.

In our warehouse testing protocol, every surplus unit undergoes a thermal soak at 50°C for 4 hours before being cleared for shipment. We check gate pulse symmetry across all six channels under simulated load conditions. Boards that show any timing deviation beyond 200 ns are rejected. What ships to you has been proven to work under conditions that mirror what you’ll find on your plant floor — not just bench-tested at room temperature.

Vibration is another silent killer of gate drive boards. The ribbon cable connector on the 1336-BDB-SP30D is a known wear point in high-vibration applications such as compressors and crushers. When you install the replacement, apply a small bead of RTV silicone to the connector locking tab as a vibration retention measure. It takes 30 seconds and prevents a repeat failure call six months later.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian, China — one of the most connected export ports in Asia. Here’s exactly how your order moves:

• Order confirmed → Same-day pick and pack. Orders placed before 15:00 CST are packed and labeled the same business day. You receive a tracking number within 2 hours of dispatch.
• Carrier selection: DHL Express and FedEx International Priority are our primary carriers. We select based on your destination country’s current transit performance — not just price. For Southeast Asia, Middle East, and Europe, DHL typically delivers in 3–5 business days. For North America, FedEx IP averages 4–6 business days.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every international shipment. HS Code 8537.10 is pre-declared. For customers requiring FORM E (ASEAN) or EUR.1 certificates, contact us 24 hours before dispatch.
• Customs clearance support: We provide accurate declared values and detailed commodity descriptions to minimize customs holds. We do not under-declare — it protects you and us.
• Tracking and visibility: You receive a direct carrier tracking link. For urgent shipments, our logistics team monitors the parcel through customs clearance and alerts you proactively if any hold occurs.
• Emergency freight: For plant-down situations requiring next-flight-out or charter freight, contact us directly on WhatsApp. We have relationships with freight forwarders who can move parts on the next available flight out of Xiamen Gaoqi International Airport.
