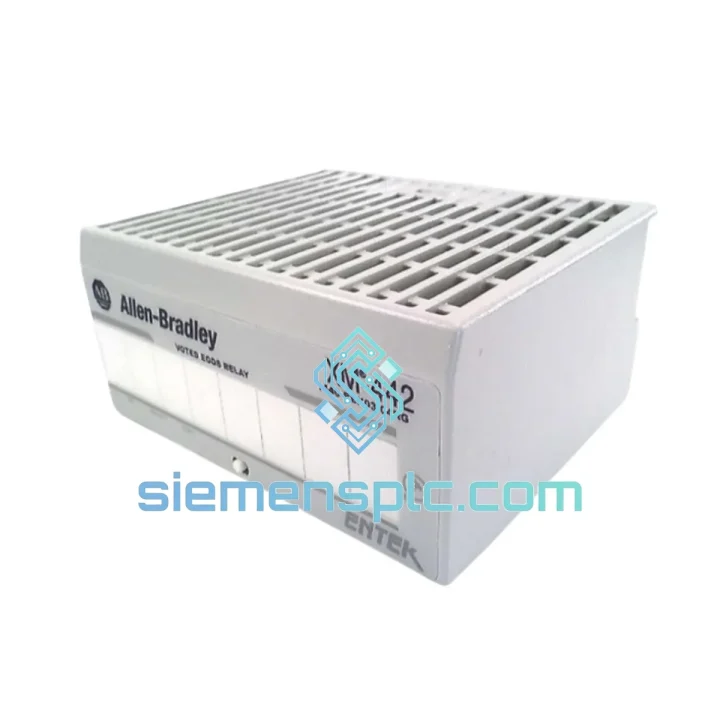

Allen-Bradley 1440-REX03-04RG Overspeed Relay Module – Dynamix Series

Allen-Bradley 1440-REX03-04RG: Hardwired Overspeed Trip Logic for Critical Rotating Machinery

The 1440-REX03-04RG is a dedicated overspeed protection relay module within Rockwell Automation’s Dynamix condition monitoring platform. Its primary function in a control loop is unambiguous: receive speed pulse signals from up to three independent sensors, execute a 2-out-of-3 (2oo3) majority-vote algorithm in hardware, and actuate up to four relay outputs within a deterministic sub-20 ms window when a speed threshold is exceeded. This is not a software-polled function block running inside a PLC scan cycle — it is a standalone, hardware-arbitrated safety layer that operates independently of the main control system’s availability.

In turbomachinery protection architecture, the distinction matters. A steam turbine rotor accelerating beyond its mechanical trip speed can reach destructive overspeed within 200–400 ms of governor failure. A relay module with a hardware response time under 20 ms provides the margin required to actuate a trip valve before blade-tip stress exceeds material yield limits. The 1440-REX03-04RG is designed to occupy exactly this position in the protection hierarchy — between the speed sensors and the final trip element — with no dependency on PLC scan time, Ethernet latency, or application program execution.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1440-REX03-04RG implements its protection logic at the hardware level rather than relying on a shared processor executing a scan-based program. Each of the three speed input channels feeds an independent pulse-counting circuit. These circuits generate real-time frequency values that are continuously compared against a pre-configured trip setpoint stored in non-volatile memory. The 2oo3 arbitration logic is implemented in dedicated combinational hardware: a trip output is asserted only when at least two of the three channel comparators simultaneously indicate an overspeed condition. This architecture eliminates the single-point failure mode inherent in single-channel speed switches and prevents nuisance trips caused by a single sensor fault or cable break.

From an EMC standpoint, the module’s input stage incorporates differential signal conditioning with common-mode rejection, which attenuates the high-frequency electrical noise generated by variable-frequency drives, motor contactors, and high-current bus bars common in turbomachinery control rooms. The relay output contacts are rated for inductive loads, with arc suppression circuitry to extend contact life when switching solenoid valve coils or contactor coils — the typical final elements in a turbine trip circuit.

The EtherNet/IP port does not participate in the trip decision path. It serves exclusively as a diagnostic and configuration channel, allowing operators to read real-time speed values, trip setpoints, and relay status from a ControlLogix or CompactLogix controller via standard CIP messaging. This architectural separation ensures that a network fault, switch failure, or PLC fault cannot compromise the module’s ability to execute a hardware trip — a fundamental requirement under IEC 61511 for safety instrumented functions.

The non-volatile setpoint storage means the module retains its trip configuration through power cycling without requiring a controller download, which is critical for applications where the protection system must be operational before the main control system completes its startup sequence.

System Integration Benefits

• Independent protection layer: Operates as a standalone trip device with no runtime dependency on PLC availability, network health, or application program state — satisfying the independence requirement for SIL 2 safety instrumented functions per IEC 61511.
• Deterministic trip timing: Hardware relay actuation at <20 ms provides a fixed, verifiable response time that can be documented in the safety lifecycle record and used in LOPA calculations without statistical uncertainty.
• 2oo3 voting reduces spurious trip rate: Majority-vote architecture statistically reduces the probability of spurious trips compared to 1oo1 or 1oo2 configurations, improving process availability while maintaining the required probability of failure on demand (PFD).
• Native EtherNet/IP diagnostics: Real-time speed values and relay status are accessible to ControlLogix and CompactLogix systems via standard CIP reads, enabling operators to monitor protection system health from FactoryTalk View SE without additional protocol converters or OPC servers.
• Multi-sensor input compatibility: Accepts passive magnetic pickups, active proximity probes, and TTL pulse sources on the same module, preserving existing sensor infrastructure during control system upgrades and reducing retrofit capital cost.
• Four configurable relay outputs: A single module can simultaneously drive a primary trip relay, an alarm relay, and two auxiliary outputs (e.g., speed indication, pre-trip warning), eliminating the need for separate relay expansion modules in most applications.
• DIN rail form factor: Compact panel-mount design integrates into standard MCC or marshalling cabinet enclosures without requiring a dedicated Dynamix rack, reducing enclosure space requirements and installation cost for retrofit projects.
• Non-volatile setpoint retention: Trip setpoints survive power loss without controller intervention, ensuring the protection function is active from the moment supply voltage is restored — before the main PLC completes its startup diagnostics.

Quality Assurance & Global Logistics

Every 1440-REX03-04RG unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers housing integrity, connector pin condition, label legibility, and date-code consistency against Rockwell Automation production records. Units exhibiting any indicator of remanufacture, relabeling, or counterfeit origin are quarantined and excluded from inventory.

Functional verification includes a power-on continuity check and relay output actuation test where test equipment permits. Units are packed in anti-static bags with desiccant and humidity indicator cards, placed in foam-lined cartons rated for international air freight handling. Commercial documentation — including commercial invoice, packing list, and certificate of origin — is prepared to the import requirements of the destination country, with HS code 8537.10 applied for customs classification.

Standard dispatch from Xiamen is 1–3 business days for in-stock units. International air freight to major industrial hubs — Rotterdam, Houston, Singapore, Dubai — typically transits in 3–5 business days via DHL Express or FedEx International Priority. Sea freight consolidation is available for bulk orders. Export compliance documentation is provided as standard; ECCN classification and end-user statements are available upon request for regulated destinations.

A 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize downtime on critical protection systems.
