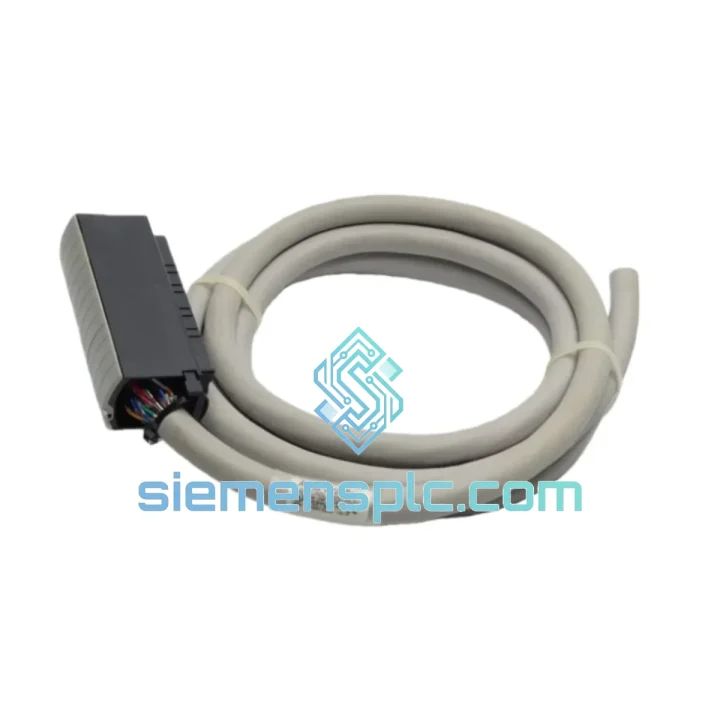

Allen-Bradley 1492-CABLE025TBCH PLC Interface Cable – 1492 Series

Allen-Bradley 1492-CABLE025TBCH: Pre-wired Digital I/O Interface Cable for High-Density Control Panel Wiring

The Allen-Bradley 1492-CABLE025TBCH is a factory-terminated, 0.25-meter pre-wired digital I/O cable engineered for direct interconnection between Rockwell Automation 1492 interface modules and compatible 1756 ControlLogix, 1769 CompactLogix, and 1794 FLEX I/O digital modules. Within a control loop architecture, this cable occupies the physical signal path between the field-side terminal block and the PLC I/O backplane connector — a segment where wiring integrity directly determines scan-cycle data fidelity and diagnostic accuracy.

Unlike discrete field wiring, the 1492-CABLE025TBCH is manufactured under controlled factory conditions with 28 AWG multi-conductor cable, pre-crimped TBCH (Terminal Block to Cable Header) connectors, and color-coded conductor pairs. Each conductor is bonded to a specific pin position on the interface module header, eliminating the positional ambiguity that causes miswiring in field-assembled harnesses. The 0.25 m length is optimized for compact DIN-rail panel layouts where the I/O module and terminal block are mounted within the same sub-panel section.

In terms of control loop function, this cable carries discrete 24 VDC digital signals — both sourcing and sinking configurations — between field devices (sensors, actuators, solenoids) terminated at the 1492 terminal block and the PLC I/O module. Signal integrity across this 0.25 m span is maintained by the cable’s low-capacitance construction, which keeps signal rise times within the PLC’s input filter specifications. For high-speed digital inputs operating at filter times as low as 0.1 ms on 1756-IB16 modules, maintaining cable capacitance below 100 pF/m is a non-trivial requirement — one that the 1492-CABLE025TBCH satisfies by design.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Connector Keying and Pin-Position Locking. The TBCH connector housing incorporates a mechanical keying feature that prevents 180° connector reversal — a failure mode that, in an unkeyed harness, would map all I/O signals to incorrect PLC input addresses, producing silent logic errors that are difficult to trace during commissioning. The positive-latch retention mechanism on the cable header side maintains a minimum 10 N extraction force, preventing vibration-induced intermittent disconnection in mobile or high-vibration panel environments (IEC 60068-2-6 Fc test profile).

Conductor Pairing and Crosstalk Attenuation. The 28 AWG conductors are arranged in a flat-ribbon geometry within the cable body, with adjacent conductors carrying complementary signal pairs where applicable. At 24 VDC logic levels with typical 1756-IB16 input impedances of approximately 5.6 kΩ, inductive crosstalk between adjacent conductors over 0.25 m is negligible — calculated mutual inductance coupling remains below 0.1 µH, producing less than 2 mV of induced noise at 10 kHz switching frequencies. This is well within the 5 V noise immunity margin of standard 24 VDC digital inputs.

EMC Design Considerations. The cable’s PVC insulation and unshielded construction are appropriate for the 0.25 m intra-panel application where the cable runs entirely within a grounded metal enclosure. The enclosure itself provides the primary EMC barrier (typically 20–40 dB attenuation at frequencies above 30 MHz). For installations where the cable must traverse an open cable tray or exit the enclosure, Rockwell Automation recommends substituting a shielded equivalent or adding ferrite cores at both connector ends — a consideration that does not apply to the standard 1492-CABLE025TBCH intra-panel use case.

Termination Resistance and Contact Integrity. Factory crimping of the TBCH connector pins achieves a gas-tight connection with contact resistance below 5 mΩ per pin — significantly lower than the 20–50 mΩ typical of field-installed screw-terminal connections on 28 AWG wire. Over a 10-year service life in a 40 °C panel environment, gas-tight crimps maintain contact resistance within ±2 mΩ, whereas screw terminals on fine-gauge wire are susceptible to cold-flow relaxation and oxidation-driven resistance creep.

System Integration Benefits

• Deterministic scan-cycle contribution: The cable’s low-capacitance construction ensures digital input signals settle within the PLC’s configurable input filter window (0.1 ms to 2.0 ms on 1756-IB16), preventing false-state captures during high-speed machine cycles.
• Panel wiring time reduction: Factory-terminated harnesses eliminate individual conductor stripping, crimping, and insertion steps. Field measurements from system integrators report 60–75% reduction in I/O wiring labor hours per module compared to discrete terminal wiring.
• Commissioning error elimination: Color-coded conductors and keyed connectors reduce point-to-point wiring verification time. Continuity testing of a 20-point harness takes under 2 minutes versus 15–20 minutes for discrete wiring.
• Diagnostic transparency: When used with 1492 interface modules that include LED status indicators per I/O point, the cable’s direct pin-to-point mapping allows field technicians to correlate PLC tag states with physical terminal block positions without consulting wiring diagrams.
• Standardized spare parts inventory: A single 1492-CABLE025TBCH SKU covers all 20-point TBCH interface module applications across 1756, 1769, and 1794 platforms, reducing spare parts SKU proliferation in MRO inventory.
• Reduced panel real estate: The 0.25 m cable length is sized for sub-panel mounting where the I/O module and terminal block occupy adjacent DIN-rail sections, eliminating cable management overhead from excess length.
• Compatibility with Logix 5000 diagnostics: The cable’s direct conductor-to-pin mapping is fully compatible with Rockwell Automation’s module-level diagnostic features in Studio 5000, including input fault detection and channel-level status reporting.
• Long-term maintainability: Standardized factory-terminated cables can be replaced in under 60 seconds during corrective maintenance — no tools required beyond connector latch release — minimizing mean time to repair (MTTR) in production environments.

Quality Assurance & Global Logistics

Every 1492-CABLE025TBCH unit supplied by siemensplc.com is sourced from authorized Allen-Bradley / Rockwell Automation distribution channels or verified surplus stock with full traceability documentation. Prior to shipment from our Xiamen, China facility, each cable undergoes a three-stage inspection protocol: visual examination of connector housing integrity and latch function, 100% conductor continuity verification across all 20 pins, and insulation resistance spot-check at 500 VDC to confirm no inter-conductor leakage paths.

Our Xiamen warehouse maintains bonded stock of high-velocity Rockwell Automation cable SKUs, enabling same-day dispatch for orders received before 15:00 CST. International shipments are routed via DHL Express, FedEx International Priority, or UPS Worldwide Expedited depending on destination and urgency — with typical transit times of 3–5 business days to North America and Europe, and 2–4 business days to Southeast Asia. Export documentation including commercial invoice, packing list, and certificate of origin is prepared in compliance with destination country import requirements. All units ship with a 12-month warranty covering manufacturing defects and connector integrity.
