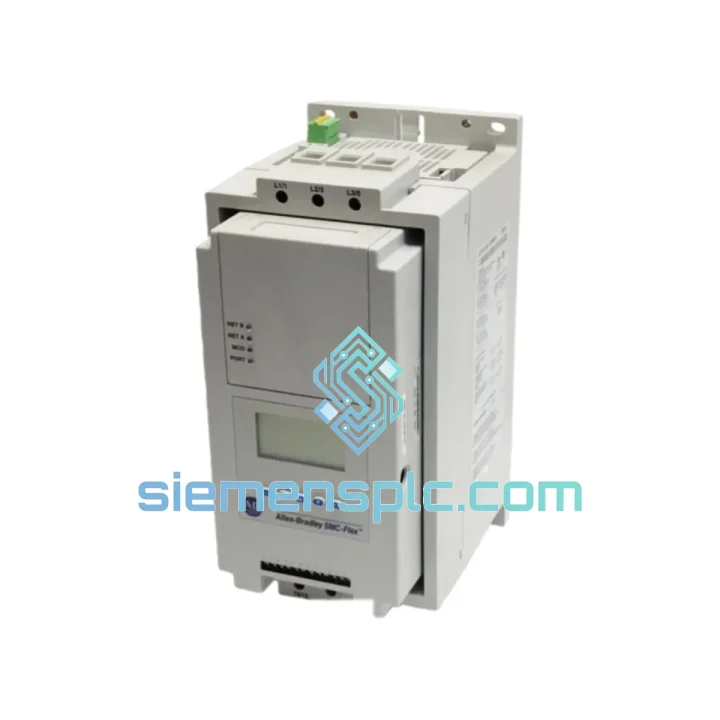

Allen-Bradley 150-F43NBDD Smart Motor Controller – SMC Flex Series

Allen-Bradley 150-F43NBDD: 43A SMC Flex Smart Motor Controller in Industrial Soft-Start Architecture

The Allen-Bradley 150-F43NBDD is a 43A-rated, three-phase Smart Motor Controller from Rockwell Automation’s SMC Flex series, engineered for applications where controlled motor acceleration and deceleration are operationally critical. Unlike conventional across-the-line starters, the 150-F43NBDD employs a six-SCR (silicon-controlled rectifier) power bridge topology that modulates the RMS voltage applied to the motor terminals during the start and stop ramp. This architecture eliminates the inrush current spike — typically 6–8× full-load amperage in direct-on-line configurations — reducing mechanical shock on couplings, gearboxes, and driven loads while simultaneously protecting the upstream distribution system from voltage sag events.

Operating across a supply voltage range of 200–480V AC (three-phase, 50/60 Hz), the 150-F43NBDD is compatible with the majority of global industrial power distribution standards without transformer intervention. The integrated electronic overload protection monitors motor current on a continuous basis, executing a trip within the thermal model defined by IEC 60947-4-2, and eliminates the need for a separate bimetallic overload relay in the motor branch circuit. The DeviceNet communication port (ODVA-compliant) allows the controller to be addressed as a node on an Allen-Bradley ControlLogix or CompactLogix network, enabling real-time parameter read/write, fault diagnostics, and event logging through RSLogix 5000 or Studio 5000 Logix Designer without additional gateway hardware.

The 150-F43NBDD supports multiple start modes — including current limit start, voltage ramp, and tachometer feedback (with optional tach card) — giving commissioning engineers the flexibility to match the acceleration profile to the load’s torque-speed curve. Soft-stop with adjustable deceleration ramp is standard, which is particularly valuable in pump applications where abrupt valve closure causes water hammer pressure transients that can exceed 2× the system’s static pressure rating.

Fault detection coverage includes phase loss, phase reversal, ground fault (with optional ground fault module), motor stall, jam (overcurrent during run), and underload (broken belt or coupling detection). Each fault condition is logged with a timestamp accessible via DeviceNet, providing the maintenance team with a structured fault history that supports root-cause analysis without requiring a dedicated data logger. The unit’s open-type (IP00) enclosure is designed for installation inside a NEMA 1 or NEMA 12 motor control center (MCC) bucket or a custom panel, where the enclosure itself provides the environmental protection rating.

Physically, the 150-F43NBDD weighs 5.7 kg and is designed for DIN rail or panel-mount installation. The control terminal block accepts 24V DC or 100–240V AC control signals, accommodating both PLC-sourced 24V DC discrete outputs and traditional relay-logic control schemes within the same hardware platform. The bypass contactor output (3-wire control) allows the SCR bridge to be bypassed after the motor reaches full speed, eliminating continuous SCR conduction losses during steady-state operation — a design consideration that directly reduces panel thermal load in high-duty-cycle applications.

All units available through siemensplc.com are sourced as genuine Allen-Bradley components with full lot traceability. A 12-month warranty against manufacturing defects is included with every shipment. Stock is held in Xiamen, China, with DHL Express and FedEx International Priority options available for time-critical procurement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 150-F43NBDD’s power stage is built around a three-phase, anti-parallel SCR pair arrangement — two SCRs per phase, conducting on opposing half-cycles — which provides symmetrical voltage control across all three motor phases simultaneously. Gate firing angle (α) is modulated by the internal microprocessor in real time, with the firing angle computed from the closed-loop current feedback signal sampled at a rate sufficient to track the 50/60 Hz fundamental without aliasing. This closed-loop architecture distinguishes the SMC Flex from open-loop voltage ramp controllers, which apply a fixed ramp profile regardless of actual motor current draw.

EMC performance is addressed at the hardware level through the use of snubber RC networks across each SCR pair, which suppress the dV/dt transients generated at SCR commutation. These transients, if unattenuated, can couple into adjacent signal wiring and cause false triggering in proximity sensors or encoder inputs sharing the same cable tray. The snubber network limits the dV/dt rate to within the immunity thresholds defined by IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge immunity), making the 150-F43NBDD suitable for installation in panels where low-level analog and digital signal wiring is present.

The bypass contactor output logic is implemented in hardware interlock, not software, ensuring that the bypass contactor cannot close while the SCR bridge is conducting — a condition that would create a low-impedance path across the SCRs and result in immediate device failure. This hardwired interlock is independent of the DeviceNet communication state, meaning a network fault or PLC program error cannot inadvertently command a simultaneous bypass-and-SCR-on condition.

The thermal model for electronic overload protection uses a dual-element algorithm: a fast-acting element that responds to instantaneous overcurrent (jam/stall detection) and a slow-acting thermal accumulator that models the motor’s I²t heating curve. The thermal accumulator retains its state across power cycles via non-volatile memory, preventing the common failure mode where a motor is restarted immediately after a thermal trip — before the motor windings have cooled — because the controller’s memory was cleared by the power cycle.

System Integration Benefits

• Deterministic network response via DeviceNet: The 150-F43NBDD operates as a Group 2 Only slave on the DeviceNet network, with a configurable Expected Packet Rate (EPR) as low as 10 ms, enabling the ControlLogix scanner to detect a motor fault and initiate a controlled shutdown sequence within one PLC scan cycle.
• Elimination of auxiliary overload relay: The integrated electronic overload removes one discrete component from the motor branch circuit, reducing panel wiring complexity, eliminating a potential single-point failure, and removing the need for manual overload reset access on the panel door.
• Structured fault diagnostics: Each fault type is reported as a distinct DeviceNet fault code, allowing the SCADA or HMI system to display a specific fault description — rather than a generic motor fault alarm — reducing mean time to diagnose (MTTD) for maintenance personnel.
• Adjustable current limit start: The current limit start mode caps motor inrush to a user-defined percentage of full-load amperage (typically 300–400%), which directly reduces the voltage sag on the supply bus during starting — critical in facilities where multiple large motors share a common MCC bus and simultaneous starts are possible.
• Soft-stop water hammer prevention: The programmable deceleration ramp allows pump discharge pressure to decay gradually, keeping the pressure transient at valve closure below the system’s pressure rating and extending valve and pipe joint service life.
• Underload detection for mechanical fault identification: The underload protection function monitors motor current during run and trips if current falls below a set threshold, detecting broken belts, failed couplings, or cavitating pumps before the condition escalates to equipment damage.
• Wide control voltage compatibility: Acceptance of both 24V DC and 100–240V AC control signals allows the 150-F43NBDD to be integrated into both modern PLC-controlled panels and legacy relay-logic control systems without control transformer modifications.
• Bypass contactor output for thermal efficiency: After the motor reaches full speed, the bypass contactor shorts the SCR bridge, eliminating the approximately 1.5V forward voltage drop across the conducting SCRs and the associated I²R heat dissipation — reducing panel cooling load in high-duty-cycle installations.

Quality Assurance & Global Logistics

Every Allen-Bradley 150-F43NBDD unit dispatched from siemensplc.com is a genuine Rockwell Automation product. Authenticity is verified through lot traceability documentation maintained at the component level. Physical inspection on receipt covers label integrity, date code consistency, housing condition, and terminal block completeness. Units that do not pass inspection are quarantined and not offered for sale.

Inventory is stocked at our Xiamen, China facility, positioned for efficient access to major international freight hubs including Xiamen Gaoqi International Airport (XMN) and Xiamen Port. Standard dispatch is within 1–2 business days of order confirmation for in-stock units. Shipping options include DHL Express (3–5 business days to most destinations), FedEx International Priority (2–4 business days), and sea freight consolidation for large-volume orders. Commercial invoice, packing list, and certificate of origin are included with every shipment. Import customs documentation support is available for B2B buyers in the EU, US, Southeast Asia, and the Middle East. A 12-month warranty against manufacturing defects is provided on all units, with RMA processing handled directly by our technical team.
