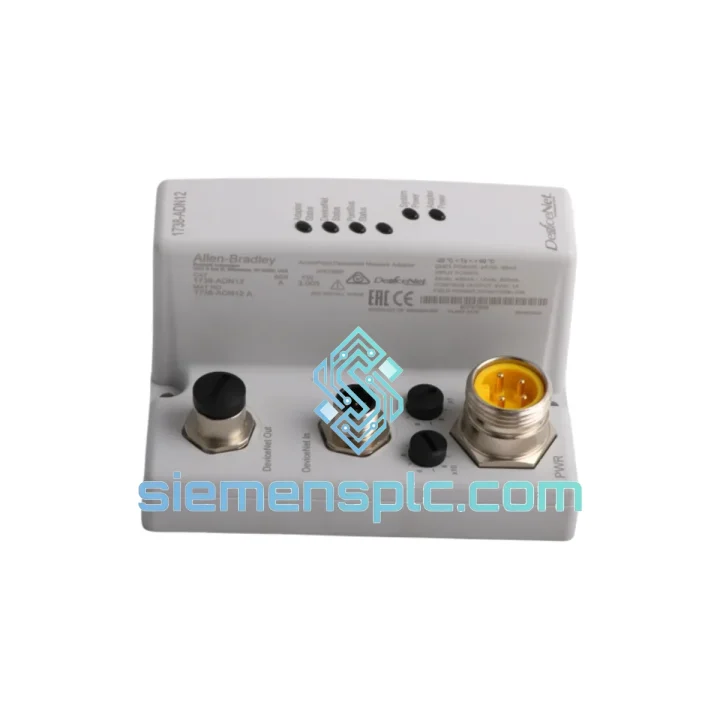

Allen-Bradley 1738-ADN12 DeviceNet Adapter – ArmorPoint 1738 Series

Allen-Bradley 1738-ADN12: Fieldbus-to-Backplane Protocol Bridge in Machine-Mounted Distributed I/O Architectures

The 1738-ADN12 is a DeviceNet Communication Adapter belonging to Rockwell Automation’s ArmorPoint 1738 Series — a platform engineered specifically for machine-frame installation in environments where centralized control cabinets are impractical or cost-prohibitive. Unlike rack-mounted I/O adapters that reside inside a NEMA-rated enclosure, the 1738-ADN12 is rated IP67 per IEC 60529, meaning it operates directly on conveyor structures, machine bases, and wash-down zones without secondary enclosure protection.

Within a DeviceNet control topology, the 1738-ADN12 occupies the gateway position at the left end of an ArmorPoint node assembly. Its primary function is bidirectional protocol translation: it receives I/O assembly objects from the DeviceNet scanner — typically a 1756-DNB ControlLogix bridge module or a 1769-SDN CompactLogix scanner — and distributes the corresponding output data across the internal ArmorPoint backplane to up to eight downstream 1738-series I/O modules. Simultaneously, it aggregates input data from those modules into a DeviceNet I/O assembly and transmits it upstream on the next scheduled network scan. This architecture decouples the PLC scan cycle from the DeviceNet network scan rate, preserving deterministic program execution regardless of network load conditions.

The adapter supports both polled I/O and change-of-state (COS) connection types. In polled mode, the scanner queries the node at every network scan interval. In COS mode, the 1738-ADN12 transmits an I/O message only when an input state transition is detected, reducing bus utilization by 40–60% in applications where field inputs are predominantly static — such as limit switches on a press, proximity sensors on a palletizer, or position feedback on a gate assembly. This bandwidth reduction directly increases the practical node count on a single DeviceNet segment before the 500 kbps ceiling is reached.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1738-ADN12 implements a two-domain galvanic isolation boundary between the DeviceNet physical layer and the ArmorPoint backplane logic domain. The CAN transceiver is separated from the module’s internal microcontroller via a DC-DC isolated power stage and an optocoupler signal barrier rated at a minimum 500V isolation voltage. This barrier eliminates ground loop currents that develop in large factory installations where multiple earthing reference points exist across a cable run — a failure mode that corrupts the differential CAN_H/CAN_L signal pair and produces intermittent node dropouts that are difficult to diagnose without a dedicated CAN bus analyzer.

MAC ID and baud rate configuration is implemented entirely in hardware via dual rotary switches accessible on the module face without removing the unit from the node assembly or connecting any configuration software. This design decision is deliberate: in food processing, automotive body shop, and outdoor conveyor environments, software-based commissioning tools are either impractical or restricted by plant-floor IT security policies. Hardware-switch configuration eliminates the dependency on RSNetWorx for DeviceNet during initial node installation and reduces per-node commissioning time in multi-node deployments.

The internal ArmorPoint backplane operates on a fixed-period master-slave polling cycle. The 1738-ADN12 assigns each downstream I/O module a slot address at initialization and polls each slot sequentially within a configurable scan window. Because slot polling is time-bounded, the worst-case latency from a field input state change to the corresponding bit update in the DeviceNet I/O assembly is deterministic and calculable at design time — a property that is mandatory for I/O nodes operating adjacent to motion control or safety-rated control loops where input response time is a hard design constraint.

The IP67 enclosure uses double O-ring compression sealing at each M12 connector port, rated for more than 500 mating cycles without seal degradation. The glass-fiber reinforced polyamide housing resists common industrial cleaning agents including isopropyl alcohol, dilute sodium hydroxide, and mineral oil mist — relevant for wash-down zones in food and beverage processing lines where periodic high-pressure cleaning is standard procedure.

System Integration Benefits

• Deterministic input response time: The fixed-period backplane polling architecture ensures that the interval from field input state change to DeviceNet packet transmission is calculable at design time, allowing engineers to verify node compliance with the host PLC’s input response time budget without empirical testing on the installed system.
• Hardware-only node commissioning: MAC ID and baud rate are set via rotary switches, removing the dependency on RSNetWorx for DeviceNet or a laptop during initial installation — a measurable labor reduction per node in large multi-node deployments.
• Bus bandwidth conservation via COS messaging: Change-of-state connection mode reduces DeviceNet bus utilization in low-event-frequency applications, allowing a higher node count on a single segment without approaching the 500 kbps bandwidth ceiling.
• Controller-level diagnostic transparency: Node health status, network fault flags, and I/O connection state are mapped into DeviceNet explicit message response objects, readable directly from Studio 5000 Logix Designer or RSNetWorx without additional diagnostic hardware or field visits.
• Consolidated MAC ID usage: A single 1738-ADN12 node address covers up to 8 downstream I/O modules, reducing total DeviceNet node count on a segment and preserving MAC IDs for additional field devices — a practical constraint in installations approaching the 63-node architectural limit.
• Native EDS integration in Studio 5000: The module’s EDS file is natively recognized in RSNetWorx for DeviceNet v24 and later. I/O tags are auto-generated in the Logix controller’s I/O tree with correct data types, eliminating manual tag mapping and the configuration errors associated with it.
• Panel-free machine-level installation: IP67 certification permits direct mounting on machine frames, conveyor structures, and wash-down zones without a secondary NEMA 4X or IP65 enclosure, reducing panel engineering cost, cabinet footprint, and thermal management requirements.
• Non-disruptive I/O module replacement: Individual 1738-series I/O modules within the node assembly can be replaced under power in non-safety configurations. The 1738-ADN12 re-initializes the affected backplane slot and restores the DeviceNet I/O connection within the scanner’s expected packet rate (EPR) timeout window, avoiding a full node restart and minimizing process interruption time.
• Scalable node expansion without network reconfiguration: Additional 1738-series modules added to the node assembly are detected by the adapter at the next power cycle, and the I/O assembly size is updated automatically — no changes to the DeviceNet network configuration or scanner I/O mapping are required for standard capacity expansion.
• Chemical and mechanical environmental resistance: The UL 94 V-0 rated housing and stainless steel M12 inserts maintain structural and sealing integrity in environments with vibration loads up to 5 g (5–500 Hz) and shock events up to 30 g — conditions typical of stamping presses, packaging machinery, and mobile equipment installations.

Quality Assurance & Global Logistics

Each Allen-Bradley 1738-ADN12 unit dispatched from siemensplc.com is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol. Inspection covers label authenticity, manufacturer date code consistency, M12 connector pin geometry and seating depth, housing surface condition, rotary switch operation across all positions, and seal integrity at each connector port. Where test infrastructure is available, power-on functional verification is performed prior to packaging. Units ship in original manufacturer packaging with accompanying documentation.

All orders are fulfilled from our warehouse in Xiamen, Fujian Province, China — a primary export hub with direct carrier access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. In-stock orders are dispatched within 1–3 business days. Orders confirmed before 14:00 CST qualify for same-day dispatch processing. For volume procurement of 5 or more units, sea freight consolidation via Xiamen Port is available with full export documentation: commercial invoice, packing list, certificate of origin, and HS Code 8537.10 classification support for customs clearance in the EU, Southeast Asia, the Middle East, and North America.

A 12-month warranty applies from the date of shipment. Units exhibiting functional failure under normal operating conditions within the warranty period are eligible for replacement or credit. Import declaration support documentation is available upon request for all destination markets.
