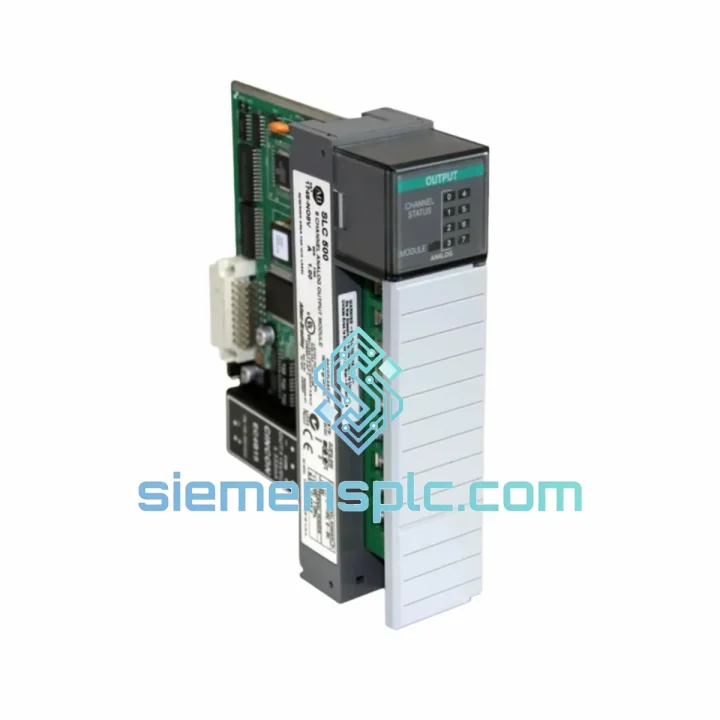

Allen-Bradley 1746-FIO4I Analog I/O Module

Allen-Bradley 1746-FIO4I | SLC 500 Analog Combo I/O Module – Ready to Ship: Stop the Clock on Your Downtime

Every hour an SLC 500 rack sits idle costs real money — lost throughput, idle labor, and contractual penalties that compound fast. The 1746-FIO4I is the single-slot analog combination module that keeps your process loop alive: four 4–20 mA inputs reading your sensors, four 4–20 mA outputs driving your actuators, all through one compact card. When this module fails, there is no workaround — the loop goes open and the line stops. We stock it. We ship it today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1746-FIO4I fails in predictable ways. Here is what field experience tells you to check before you even pull the card:

Fault Code 0x0010 / Channel Fault LED solid red: This is the most common call-out. It almost always means an open-circuit on an input channel — a broken field wire, a failed transmitter, or a corroded terminal block. Before condemning the module, measure loop current at the terminal. If you read 0 mA with the transmitter powered, the fault is upstream. If you read 4–20 mA at the terminal but the module still faults, the input circuit is gone — replace the card.

Output channel stuck at 0 mA or 20 mA: Check the RSLogix 500 output image table (O:e.0 through O:e.3). If the PLC is writing the correct value but the field device sees a rail condition, the DAC on that channel has failed — typically caused by a reverse-polarity wiring event or a load impedance spike. No field repair is possible; swap the module.

Module not recognized after chassis power-up (ERR LED flashing): The 1746-FIO4I does not use DIP switches or jumpers for slot addressing — the SLC 500 backplane assigns the slot address automatically based on physical position. If the module is not recognized, reseat it firmly (the card-edge connector oxidizes in humid environments), then cycle chassis power. If the ERR LED continues to flash after reseating, check the I/O configuration in RSLogix 500: the slot must be configured as a 1746-FIO4I, not a generic analog module. A mismatch here will generate a major fault code 0x0020.

Replacement procedure — step by step:

1. Place the SLC 500 processor in Program mode via the keyswitch or RSLogix 500 before removing power. This prevents a major fault from propagating to other I/O.
2. De-energize the chassis power supply. Verify with a meter — do not rely on indicator LEDs alone.
3. Disconnect field wiring from the 1746-FIO4I terminal block. Label each wire before removal; the module uses a removable terminal block (RTB), so you can pre-wire the replacement before installation.
4. Slide the faulty module out. Inspect the backplane connector for bent pins or debris.
5. Insert the replacement 1746-FIO4I. No firmware flashing is required — the module is self-configuring from the RSLogix 500 project file.
6. Reconnect the RTB. Restore chassis power. Confirm the module LED shows solid green within 5 seconds of power-up.
7. Switch the processor to Run mode. Monitor the input image table (I:e.0 through I:e.3) to verify live readings match field transmitter values.

Firmware note: The 1746-FIO4I does not carry user-upgradeable firmware. If you are replacing a Series A unit with a Series B or later, verify your RSLogix 500 project was saved with the correct series revision. A series mismatch will not prevent operation but may generate a configuration warning on first scan.

Reliability in Harsh Conditions

The 1746-FIO4I was designed for the factory floor, not a climate-controlled server room. Rockwell Automation subjects the SLC 500 I/O family to IEC 60068-series environmental testing before release:

• Vibration: Tested to IEC 60068-2-6 — sinusoidal vibration at 5–500 Hz, 1g acceleration. The card-edge connector and through-hole component mounting survive the resonance frequencies common in pump skids and compressor packages.
• Shock: IEC 60068-2-27 half-sine shock profile. The module withstands the mechanical transients generated by nearby contactors and solenoid valves switching under load.
• Temperature cycling: Validated across the full 0–60 °C operating range with thermal cycling tests that stress solder joints and connector contacts — the two most common failure points in analog modules exposed to daily heat-up/cool-down cycles.
• Humidity: Tested to IEC 60068-2-78 at 95% relative humidity, non-condensing. The conformal coating on the PCB provides a barrier against condensation in unheated enclosures during cold startups.
• EMC immunity: CE marking requires compliance with IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/burst), and IEC 61000-4-5 (surge). The isolated channel design provides common-mode rejection that keeps your 4–20 mA readings stable even when VFDs and welding equipment share the same panel.

Units supplied by siemensplc.com are stored in climate-controlled conditions and shipped in anti-static bags with desiccant packs and foam-lined cartons. Every module is inspected for physical integrity before dispatch.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen. This geography is not accidental: it means your emergency order moves from our shelf to an international carrier within hours, not days.

Standard express workflow:

1. Order confirmation by 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority. Tracking number issued within 2 hours of pickup.
2. Customs clearance: All shipments are declared through Xiamen Customs with accurate HS code 8537.10 classification and a compliant commercial invoice. We do not under-declare values — this protects you from customs holds at destination.
3. Transit times (express): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 3–4 days | Australia 3–4 days.
4. Documentation package: Commercial invoice, packing list, certificate of conformance, and airway bill provided with every shipment. DDP (Delivered Duty Paid) terms available on request for select destinations.
5. Bulk orders: For quantities exceeding 10 units or mixed-SKU procurement, we coordinate consolidated air freight to reduce per-unit shipping cost without sacrificing lead time.

If your plant is facing an active shutdown and you need the module on-site within 48 hours, contact us directly via WhatsApp. We will confirm stock, generate a proforma invoice, and initiate dispatch within the same business day.
