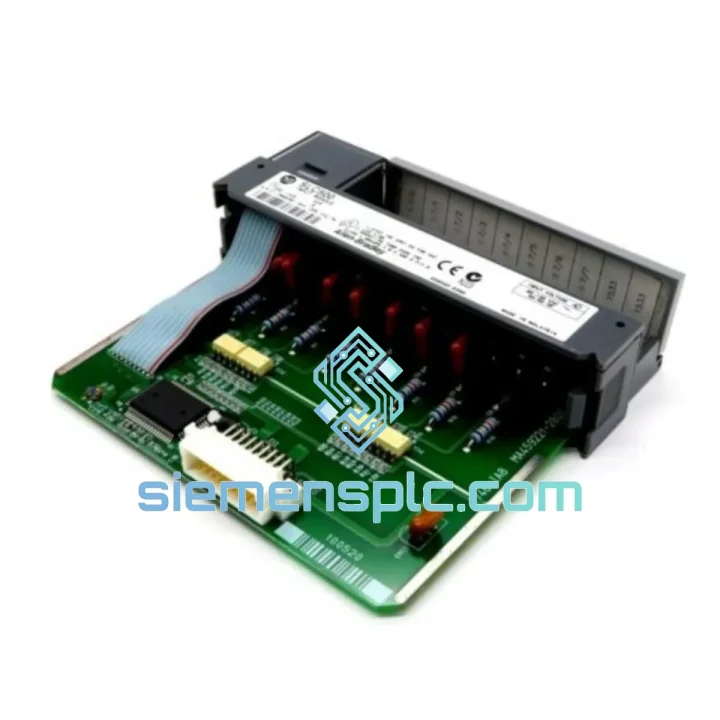

Allen-Bradley 1746-IA8 PLC Input Module

Allen-Bradley 1746-IA8 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your SLC 500 rack just dropped an input module. The line is cold. Every minute costs real money — scrap, overtime, missed shipments, customer penalties. The 1746-IA8 is not a shelf item you can wait three weeks for. We stock it. We ship it. DHL Express from Xiamen, door-to-door, tracked to your receiving dock. That is the only conversation that matters right now.

URGENT REQUIREMENT?
📧 [email protected] | 📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 1746-IA8:

• Fault Code 0020h / I/O Module Fault: The processor has lost communication with the module on the backplane. First suspect: backplane connector pins bent or oxidized from vibration. Pull the module, inspect the 42-pin edge connector under magnification, clean with IPA, reseat firmly. If fault persists after reseat, the module’s backplane ASIC has failed — replace the unit.
• Input point stuck ON with field device de-energized: Capacitive leakage on long cable runs (>100m) can hold the optocoupler above the ON threshold. Measure leakage current at the terminal. If it exceeds 2.5 mA, add a bleed resistor (15 kΩ, 5W) across the input terminal to neutral. If the point is stuck ON with the field wire disconnected, the optocoupler LED has shorted internally — module replacement required.
• Input point stuck OFF with field device energized: Verify 120V AC is actually present at the terminal with a meter — do not trust the field device. If voltage is confirmed at the terminal and the LED indicator is dark, the optocoupler has open-circuited. This is the most common age-related failure mode. Replace the module.
• Intermittent faults correlating with vibration or thermal cycling: Solder joint fatigue on the PCB. Tap the module housing lightly while monitoring the I/O image table in RSLogix 500. If the bit state changes, the PCB has a cracked joint. Do not attempt reflow in the field — replace the module and send the failed unit for depot repair if budget allows.

Hot-swap / replacement procedure (SLC 500 is NOT hot-swappable by design):

1. Place the SLC 500 processor in PROGRAM mode via the keyswitch or RSLogix 500 before pulling the module. This prevents the processor from faulting on I/O loss mid-scan.
2. Disconnect the Removable Terminal Block (RTB) first — loosen the two captive screws and pull the RTB straight out. The field wiring stays on the RTB; you do not need to rewire.
3. Press the module release tab and slide the module out of the slot. Note the slot number — the replacement must go back into the exact same slot position, or you must update the I/O configuration in the processor program.
4. Insert the replacement 1746-IA8. Verify the catalog number and series letter match. Series A through D are functionally interchangeable for this module; no firmware update is required.
5. Reconnect the RTB. Verify terminal screw torque: 0.9 N·m (8 lb·in) per Rockwell specification.
6. Return the processor to RUN mode. Monitor the I/O fault table in RSLogix 500 for 30 seconds. All 8 input bits should reflect actual field device states within one scan cycle.
7. Perform a point-by-point functional check: actuate each field device and confirm the corresponding bit in the input image table toggles correctly. Document the test results.

Configuration notes: The 1746-IA8 requires no DIP switch settings, no address configuration, and no firmware download. Slot addressing is automatic — the SLC 500 backplane assigns the I/O address based on physical slot position. If you are replacing a failed module in an existing program, no RSLogix 500 changes are needed provided the replacement occupies the same slot. If the slot position changes for any reason, update the I/O configuration tree in RSLogix 500 and re-download the program.

Reliability in Harsh Conditions

The 1746-IA8 was engineered for the environments where PLCs actually live — not climate-controlled server rooms, but pump houses, press floors, and outdoor switchgear enclosures. The 1500V AC optical isolation barrier between the field terminals and the backplane logic bus is not a marketing figure; it is the primary reason this module survives in high-noise environments like motor control centers and substation auxiliary panels where common-mode transients routinely exceed 600V peak.

The conformal-coated PCB assembly resists the condensation cycles that occur in unheated enclosures during seasonal temperature swings. In petrochemical applications where H₂S and SO₂ are present in the atmosphere, the coating provides a meaningful barrier against copper trace corrosion — the failure mode that silently degrades uncoated boards over 18–24 months of exposure.

Vibration tolerance of 2g across 10–500 Hz covers the resonance bands of most industrial machinery — reciprocating compressors, centrifugal pumps, and conveyor drive systems. The module’s mechanical keying system prevents incorrect insertion even when a technician is working under time pressure in poor lighting. The screw-type RTB maintains contact integrity through thousands of thermal expansion cycles that would cause IDC connectors to loosen over time.

In automotive stamping plants where ambient temperatures inside enclosures regularly reach 55°C during summer production runs, the 1746-IA8 operates within its rated 60°C ceiling with margin to spare. The 3.5W power dissipation figure is low enough that thermal management inside a standard NEMA 12 enclosure requires no forced-air cooling for a fully populated chassis.

Global Express Logistics

Stock is held at our Xiamen warehouse, positioned for rapid export to Asia-Pacific, Middle East, Europe, and the Americas. When you confirm an order, the process is straightforward:

• Same-day dispatch for orders confirmed before 15:00 CST. Cut-off is firm — we do not hold shipments for next-day processing.
• DHL Express Worldwide is the default carrier for urgent orders. Transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days. FedEx International Priority is available as an alternative on request.
• Export documentation is prepared in parallel with packing: commercial invoice, packing list, country of origin declaration, and HS code classification (8537.10 for PLC modules). For customers in countries requiring a Certificate of Conformance or third-party inspection report, advise us at time of order — we can accommodate most requirements without delaying dispatch.
• Tracking is provided via email and WhatsApp within 2 hours of handover to the carrier. We monitor shipments actively and flag any customs holds or delivery exceptions before you need to ask.
• Customs clearance support: We provide accurate declared values and HS codes. For customers in the EU, we can provide EORI-compatible documentation. For customers in India, we support IGST documentation requirements. Contact us if your country has specific import requirements — we have shipped to 60+ countries and have handled most scenarios.

If your plant is down and you need the fastest possible delivery, tell us when you contact us. We will quote DHL Express Time Definite options with guaranteed delivery windows so you can give your operations team a firm restart time.
