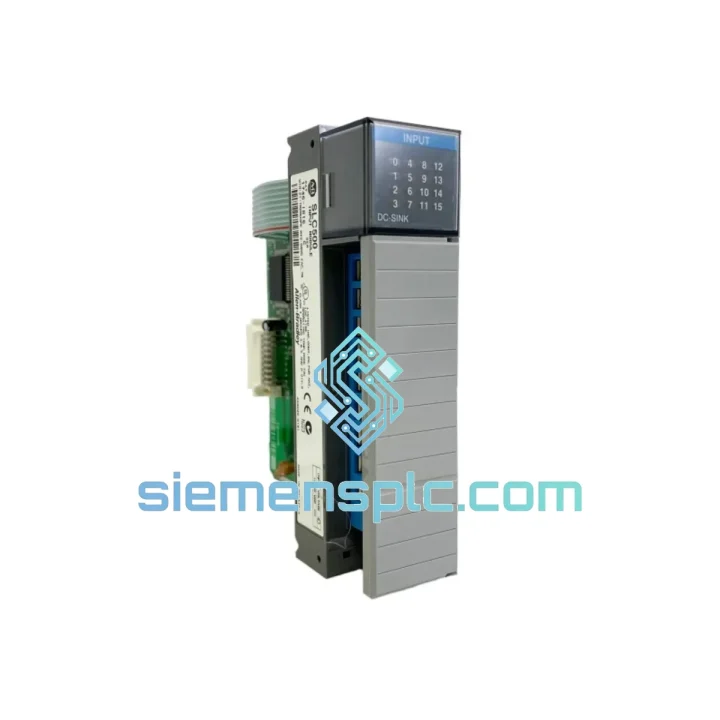

Allen-Bradley 1746-IB16/C PLC Input Module

1746-IB16/C Down? Every Minute Costs You — Get It Back Online Today

Line stopped. Maintenance team standing by. Your SLC 500 chassis is throwing a fault and the 1746-IB16/C is the culprit. You’ve been here before — the scramble to source a verified replacement before the shift supervisor starts asking questions. We stock this module in Xiamen, tested and ready to pull from the shelf. DHL Express to most destinations in 24–72 hours. No broker delays, no counterfeit risk.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 1746-IB16/C:

• All 16 LEDs dark, no input response: Backplane power loss or blown fuse on the chassis power supply. Before condemning the module, verify 5VDC backplane rail with a meter at the chassis connector. If backplane is healthy and the module still shows no life, the internal DC/DC converter on the module has likely failed — replace the module.
• Single channel stuck ON or OFF: Most common cause is a shorted field device or wiring fault on that channel. Disconnect the RTB and check if the LED clears. If it does, the fault is in the field wiring. If the LED stays ON with the RTB disconnected, the input ASIC on that channel has failed — module replacement required.
• Intermittent false inputs / chattering: Usually induced noise from adjacent VFD or contactor wiring. Check cable routing separation. If the module is in a slot adjacent to an output module driving inductive loads, relocate it. Also verify the field device commons are properly grounded — floating commons are the #1 cause of ghost inputs on NPN sinking modules.
• SLC processor faults with I/O error code 71 or 72: Module not recognized on backplane. Reseat the module firmly — the 1746 edge connector is susceptible to oxidation in humid environments. Clean the gold fingers with isopropyl alcohol if the module has been in service for several years.

Replacement procedure — field-tested steps:

1. Document the current slot address in RSLogix 500 (e.g., I:3.0 for slot 3). The 1746-IB16/C uses automatic slot addressing — no DIP switches, no jumpers. The SLC processor assigns the I/O address based on physical slot position. Confirm the replacement goes into the exact same slot.
2. Power down the chassis or use the SLC’s I/O inhibit function if hot-swap is required. The 1746 chassis does not support live insertion — do not attempt it.
3. Remove the RTB (terminal block) from the failed module. The RTB is keyed and will transfer directly to the replacement without rewiring.
4. Seat the new 1746-IB16/C firmly until the locking tab clicks. Reattach the RTB.
5. Power up. The SLC processor will auto-configure the module. No firmware download required — the module carries no user-configurable firmware. Verify all 16 LEDs respond correctly to field device states before returning to production.
6. If the processor throws a configuration mismatch fault after replacement, go online in RSLogix 500, navigate to I/O Configuration, and verify the module type matches. A /C replacing a /A or /B is fully compatible — no logic changes needed.

Revision compatibility note: The /C revision is backward-compatible with /A and /B in all SLC 500 chassis. No ladder logic modifications are required. The input image word address remains identical.

Reliability in Harsh Conditions

The 1746-IB16/C was designed for the factory floor, not a climate-controlled server room. The optical isolation barrier at 1500 VAC between field wiring and the backplane is the first line of defense — it blocks ground loops, transient spikes from inductive switching, and common-mode noise that would otherwise corrupt input data or damage the backplane bus. In foundry and heavy press environments where 24VDC supply rails sag under load, the wide 10–30 VDC input window keeps the module reading correctly even when the field supply drops to 10V under peak demand.

The /C revision introduced tightened input threshold tolerances compared to earlier revisions, reducing the risk of indeterminate states when field devices are operating at the edge of their output voltage specifications — a real-world problem with aging proximity sensors that haven’t been replaced on schedule. The module’s operating temperature ceiling of +60 °C covers the majority of industrial panel environments, including non-air-conditioned enclosures in tropical climates. For applications pushing beyond that, ensure adequate panel ventilation and consider chassis fan units.

Vibration performance meets IEC 68-2-6 standards, making the module suitable for mobile equipment, compressor skids, and other mechanically dynamic installations where cheaper I/O hardware fails prematurely due to connector fretting. The removable terminal block design also eliminates the mechanical stress concentration that occurs with hardwired modules during thermal cycling — a subtle but significant reliability advantage in applications with wide ambient temperature swings.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. When you place an order before 15:00 CST, the module ships the same business day. Here’s what the logistics chain looks like in practice:

• Day 0 (Order Confirmed): Module pulled from shelf, inspected, packed in anti-static foam with original-style packaging. Commercial invoice, packing list, and certificate of origin prepared. Shipment booked with DHL Express or FedEx International Priority based on destination.
• Day 1: Parcel collected by carrier from Xiamen facility. Tracking number issued and sent to buyer within 2 hours of pickup.
• Day 2–3: Arrival at destination country for most Southeast Asia, East Asia, and Middle East destinations. Europe and North America typically Day 3–5 depending on customs clearance speed.
• Customs Documentation: All export paperwork is prepared to minimize customs hold risk. HS code declared correctly. For destinations requiring import permits for industrial electronics, contact us in advance — we have experience navigating import requirements for industrial automation components across 40+ countries.
• Urgent Freight: For genuine production emergencies, contact us directly via WhatsApp. We can arrange same-day courier pickup and priority routing for time-critical shipments.

We do not use consolidators or freight forwarders that add 2–3 days of handling time. Every shipment goes direct from our facility to the international carrier hub. That’s the difference between a module arriving Wednesday versus Friday — and in a production stoppage, that difference is measured in dollars per minute.
