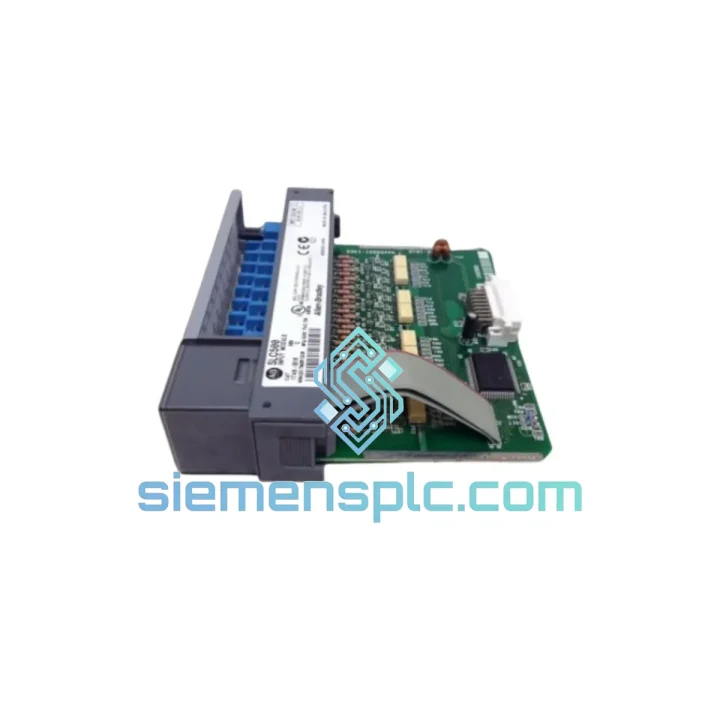

Allen-Bradley 1746-IB16 PLC Input Module

1746-IB16 Down? Every Minute Costs Money — We Ship Same Day from Xiamen

Your SLC 500 rack just threw a fault. The 1746-IB16 is dead. Sixteen input points gone dark — proximity sensors, limit switches, pushbuttons: all blind to the processor. The line is stopped. Maintenance is on the phone. Management is asking for an ETA you don’t have yet.

This is the exact scenario the 1746-IB16 creates when it fails without a spare on the shelf. A single 16-point DC input module — one of the most common cards in North American discrete manufacturing — and the entire SLC 500 system grinds to a halt. We stock it. We ship it today. DHL Express from Xiamen to your dock in 3–5 business days, tracked end-to-end.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of pulling cards in the field, here is what actually goes wrong with the 1746-IB16 and what to watch when you swap it out.

Common Failure Modes

• Stuck-ON inputs (phantom signals): The most frequent failure. Internal optocoupler degradation causes one or more input bits to read TRUE regardless of field device state. Confirm by disconnecting field wiring at the terminal block — if the bit stays ON in RSLogix, the card is the culprit, not the sensor.
• Intermittent input dropout under vibration: Hairline cracks in the PCB solder joints, typically near the edge connector. Symptoms appear as random I/O faults (Error Code 71h or 72h in the SLC fault table) that clear on power cycle. Wiggling the card in the slot while monitoring the data file confirms this.
• All 16 points dead simultaneously: Usually a blown internal fuse or failed 5V backplane regulator. Check backplane voltage at the chassis power supply first (1746-P1/P2/P4). If backplane voltage is nominal and the card still shows no activity, the module is unrecoverable — replace it.
• Erratic inputs on points 8–15 only: Points 0–7 and 8–15 share separate common terminals (I/O-COM and I/O-COM). A wiring fault or floating common on the second group causes exactly this symptom. Verify both COM terminals are properly landed before condemning the card.

Replacement Procedure — Step by Step

1. Document the slot address. Note the physical slot number in the 1746 chassis. The SLC 500 processor auto-assigns I/O addresses based on slot position — the replacement card inherits the same address automatically. No DIP switches, no jumpers, no firmware configuration required on the 1746-IB16 itself.
2. Power down or use hot-swap procedure. For a controlled replacement, de-energize the chassis. If production constraints require hot-swap, follow Rockwell Publication 1746-UM001 Section 4 precisely — improper hot-swap can corrupt the processor’s I/O table.
3. Photograph the terminal block wiring before removal. The 1746-IB16 uses a removable 20-pin terminal block (1746-RT25). The wiring block lifts off the card — you can transfer it directly to the replacement module without re-terminating a single wire. This alone cuts swap time from 45 minutes to under 10.
4. Seat the replacement card firmly. The edge connector requires deliberate pressure. A partially seated card will generate a continuous I/O fault (Fault Code 0002h) and the processor will not go to RUN mode.
5. Verify in RSLogix 500. Go online, navigate to I/O Configuration, and confirm the slot shows the 1746-IB16 with no fault indicators. Force individual input bits and verify field device response before releasing the line.
6. Check series revision if firmware matters. The 1746-IB16 has been produced in Series A through D. For most applications, series is irrelevant. If your system uses specific ladder logic tied to module series (rare, but seen in older validated pharmaceutical systems), confirm the series letter on the module label before installation.

SLC 500 Fault Codes Related to 1746-IB16

• 0002h — I/O Module Fault: Card not recognized in slot. Check seating and chassis slot integrity.
• 0010h — I/O Rack Communication Fault: Backplane communication lost. Can indicate a failing card or chassis backplane damage.
• 0071h / 0072h — I/O Module Removed/Inserted: Logged when a card is hot-swapped. Normal if intentional; investigate if spontaneous.

Reliability in Harsh Conditions

The 1746-IB16 was not designed for a climate-controlled server room. It was built for the plant floor — and it shows in the design choices Rockwell made when the SLC 500 platform was engineered.

The 1500V AC optical isolation barrier between field wiring and the backplane is the first line of defense. In environments where welding equipment, large motor starters, and VFDs share the same electrical infrastructure, ground loops and voltage transients are a daily reality. The isolation barrier absorbs these events without passing them to the processor backplane. We have seen installations where the field wiring commons were floating at 80V AC relative to panel ground — the 1746-IB16 kept running without a single nuisance fault.

Vibration tolerance is built into the card’s mechanical design. The edge connector uses a friction-fit with sufficient contact force to maintain signal integrity on machinery with continuous vibration profiles — stamping presses, compressors, and conveyor drive frames. The removable terminal block (1746-RT25) adds a secondary mechanical retention point that prevents wiring from working loose under vibration cycles.

Thermal performance across the 0–60°C operating range covers the vast majority of industrial panel environments. In practice, panels with adequate ventilation and properly sized power supplies keep internal temperatures well within this envelope even in summer ambient conditions exceeding 40°C. The module’s low backplane current draw (100 mA at 5V DC) means it contributes minimally to chassis thermal load — relevant when you are stacking a full 13-slot chassis.

Humidity tolerance up to 95% non-condensing addresses coastal and tropical installations where moisture ingress into control panels is a persistent maintenance challenge. The conformal coating applied to production-run boards provides additional protection against condensation events during temperature cycling.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes operated by DHL, FedEx, and UPS. This geography is deliberate: Xiamen’s port and air cargo infrastructure supports same-day handoff to express carriers for orders confirmed before 14:00 CST.

Standard Express Timeline (DHL / FedEx International Priority):

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, UK, Netherlands, Poland): 4–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• South America (Brazil, Chile, Colombia): 5–7 business days
• Australia / New Zealand: 3–5 business days

Every shipment includes a commercial invoice with accurate HS code classification (HS 8538.90 for PLC I/O modules), enabling smooth customs clearance. For customers in countries with import duty sensitivities, we provide documentation support to facilitate formal entry. Tracking numbers are issued within 2 hours of carrier pickup and shared directly via email and WhatsApp.

For production-down emergencies, contact us via WhatsApp before placing an order. We can confirm stock availability, generate a proforma invoice, and arrange same-day dispatch — all within a single business hour when stock is confirmed on hand.
