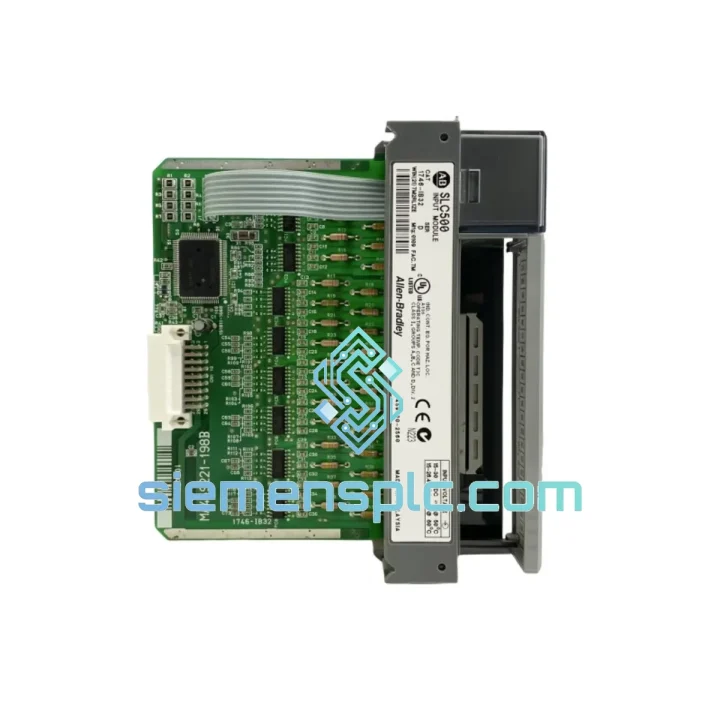

Allen-Bradley 1746-IB32/D PLC Input Module

1746-IB32/D Down? Every Minute Costs You — Get Back Online Fast

Your SLC 500 rack just threw a fault. The 1746-IB32/D input module is dead. The conveyor is stopped, the press is locked out, and your shift supervisor is already on the phone. You don’t need a catalog — you need a module on a plane tonight. That’s exactly what we do.

We stock the Allen-Bradley 1746-IB32/D in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 5 PM CST typically clear customs and land on your dock within 48–72 hours. No waiting weeks for a distributor backorder. No explaining to management why the line is still down on day four.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 1746-IB32/D:

• All 32 input LEDs dark with field power confirmed ON: Backplane connector pins corroded or bent. Pull the module, inspect the 42-pin edge connector under magnification before condemning the module outright.
• Intermittent inputs on points 16–31 only: Classic symptom of a failed internal optocoupler bank. The module is split into two 16-point groups internally; partial failure is common after moisture ingress.
• SLC processor faults with error code 0020h (I/O module failure): The processor lost communication with the module mid-scan. Reseat first. If the fault returns within one scan cycle, the module’s backplane ASIC has failed — replace immediately.
• Inputs stuck ON with field devices de-energized: Leakage current from long cable runs (>50m) can hold optocouplers in the ON state. Verify field wiring before replacing the module. Add bleed resistors (10kΩ, 2W) across input terminals if cable capacitance is the root cause.

Step-by-step hot-swap replacement procedure:

1. Place the SLC processor in Program mode via RSLogix 500 or the keyswitch. Do not power down the chassis unless your process requires it — the SLC 500 supports live I/O module replacement.
2. Document the terminal block wiring with a photo before disconnecting. The 1746-IB32/D uses a removable 40-pin terminal block — loosen the two captive screws and pull the wiring harness as a single unit.
3. Press the module’s top and bottom locking tabs simultaneously and slide it out of the slot.
4. Verify the replacement module’s series revision. Series D is backward-compatible with Series A, B, and C — no program changes required. Slot addressing is automatic; the SLC 500 does not use DIP switches for I/O addressing.
5. Seat the new module firmly until both locking tabs click. Reconnect the terminal block.
6. Return the processor to Run mode. Monitor the I/O status bits in the input image table (file I:x.0 through I:x.1) to confirm all 32 points are reading correctly.
7. Check the processor’s I/O configuration table in RSLogix 500 — if the slot was previously configured for a different module type, you will need to update the I/O configuration and download the modified program.

Firmware note: The 1746-IB32/D carries no user-configurable firmware. Series revision is fixed at manufacture. No firmware download or EEPROM programming is required after replacement.

Reliability in Harsh Conditions

The SLC 500 platform was designed for the factory floor, not the server room. The 1746-IB32/D reflects that design philosophy at the component level.

Optical isolation between the field terminals and the backplane bus provides a hard barrier against voltage transients, ground loops, and inductive kickback from solenoids and motor starters wired to the same panel. In automotive stamping plants where 480V press drives share the same cabinet as the SLC rack, this isolation is not a feature — it’s the reason the processor is still alive after five years.

The module’s conformal-coated PCB resists humidity and airborne contaminants common in food processing and chemical environments. Operating range of 0°C to 60°C covers the vast majority of industrial enclosure conditions, including unheated outdoor cabinets in temperate climates. The module has been deployed in steel mill environments where ambient temperatures routinely reach 55°C and vibration from rolling mills transmits through the floor into the control panel — and it keeps scanning.

Individual per-point LED indicators are driven directly from the optocoupler output stage, meaning they reflect true field signal state independent of the processor’s scan. During a fault condition, you can walk the panel and read input status without a laptop — a critical capability when you’re troubleshooting at 2 AM with no programming cable in sight.

The removable terminal block design means your field wiring stays connected to the terminal block during module swap. In a 32-point module with 40 terminals, that’s the difference between a 10-minute replacement and a 3-hour rewiring job with the risk of a miswire on restart.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and daily DHL and FedEx pickup schedules.

Standard express timeline from order confirmation:

• Day 0 (Order confirmed before 5 PM CST): Module pulled from stock, inspected, ESD-bagged, and packed with foam cushioning. Commercial invoice and packing list prepared. Shipment booked with DHL Express or FedEx International Priority based on destination.
• Day 1: Parcel collected by carrier, export customs declaration filed. Tracking number issued to buyer.
• Day 2–3: In-transit to destination country. DHL and FedEx handle import customs clearance on behalf of the consignee in most major markets (US, EU, UK, Australia, Southeast Asia).
• Day 3–5: Delivery to your facility, depending on destination city and local carrier last-mile schedule.

We prepare full export documentation including commercial invoice with accurate HS code classification (HS 8537.10 for PLC I/O modules), packing list, and certificate of origin where required. For customers in the EU, we can provide documentation supporting EORI-based import clearance. For US customers, we declare under the correct HTS schedule to avoid unnecessary customs holds.

All shipments are fully insured. In the rare event of transit damage, we file the carrier claim and ship a replacement — you are not left managing a damage dispute while your line is still down.
