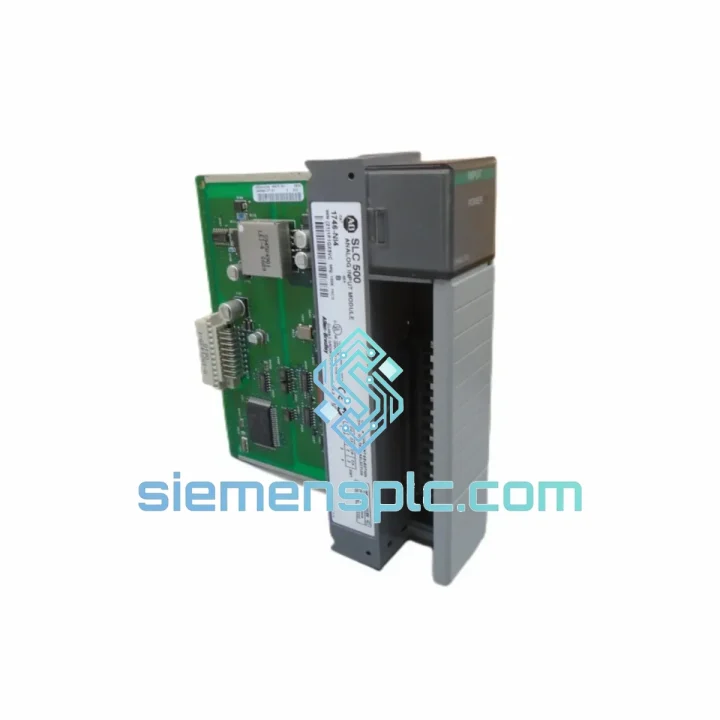

Allen-Bradley 1746-NI4/B Analog Input Module – SLC 500 Series

Allen-Bradley 1746-NI4/B: Four-Channel Differential Analog Input Module for SLC 500 Control Architectures

The Allen-Bradley 1746-NI4/B is a four-channel differential analog input module engineered for integration into the SLC 500 programmable controller platform. Operating across a broad signal range — ±10 V DC, 0–10 V DC, 0–5 V DC, 1–5 V DC, 0–20 mA, and 4–20 mA — this module delivers 16-bit resolution across all channels simultaneously, providing a quantization step of approximately 0.003% of full scale. Its architecture is purpose-built for closed-loop process control, precision PID feedback, and multi-transmitter signal acquisition in electrically demanding plant environments.

Unlike lower-resolution 12-bit or 14-bit alternatives, the 1746-NI4/B sustains measurement fidelity under thermal drift and supply variation conditions that are common in panel-mounted industrial enclosures. Each channel operates as a true differential input pair, rejecting common-mode interference up to 250 V AC — a critical design parameter in facilities where analog signal cables share conduit with motor drive wiring or high-current switching loads.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1746-NI4/B employs a successive-approximation register (SAR) analog-to-digital converter architecture. Each of the four input channels feeds into a multiplexed front-end that sequentially routes signals to a single high-precision SAR ADC. This design concentrates calibration error into one converter rather than distributing it across four independent ADCs, which simplifies factory calibration and maintains inter-channel consistency over the module’s service life.

Differential Input Architecture and EMC Performance: Each channel uses a fully differential input topology with a precision instrumentation amplifier stage. The common-mode rejection ratio (CMRR) exceeds 80 dB at DC and remains above 60 dB at 50/60 Hz — the dominant interference frequencies in industrial power environments. This is achieved through matched resistor networks with tight tolerance (≤ 0.1%) and low-temperature-coefficient characteristics, ensuring that ground potential differences between field transmitters and the SLC 500 chassis do not corrupt measurement data.

Galvanic Isolation Barrier: The 250 V AC isolation barrier between each channel pair and the SLC 500 backplane is implemented via transformer-coupled DC/DC conversion for the analog supply rails and optocoupler-based data transfer for the digitized output. This two-stage isolation prevents ground loops from propagating into the backplane bus and protects the processor from transient overvoltage events originating at field instrumentation terminals.

Current Input Shunt Precision: In current measurement mode, the 249 Ω shunt resistor is a precision metal-film component with a temperature coefficient of ≤ 25 ppm/°C. At a 4–20 mA span, this yields a voltage drop of 0.996 V to 4.98 V across the shunt — well within the linear operating range of the input amplifier. The tight tolerance ensures that the module’s current measurement accuracy is not degraded by resistor drift across the 0–60 °C operating range.

Backplane Communication Protocol: The 1746-NI4/B communicates with the SLC 500 processor via the proprietary SLC 500 backplane bus, which operates at a fixed 1 MHz clock rate. The module presents its digitized channel data in the processor’s input image table (I-file) as 16-bit signed integers. No additional configuration beyond the RSLogix 500 module definition is required for basic operation; advanced scaling and filtering are handled in ladder logic using the SCP (Scale with Parameters) and FLL (File Fill) instructions.

Overrange and Fault Detection: The module asserts a hardware fault bit in the status word when any channel input exceeds ±10% of the configured full-scale range. This overrange detection is implemented in the analog front-end comparator stage, independent of the ADC conversion cycle, ensuring that fault notification latency is less than one conversion period (~5 ms) regardless of processor scan time.

System Integration Benefits

• Deterministic scan-time contribution: The module’s fixed ~20 ms total conversion cycle for all four channels is fully predictable and does not introduce jitter into the SLC 500 processor scan. PID loop designers can account for this latency precisely when tuning derivative gain terms.
• Zero-configuration backplane power: The module draws all operating power from the SLC 500 backplane (150 mA @ 5 V DC; 75 mA @ 24 V DC), eliminating the need for external 24 V DC field power to the module itself. This simplifies panel wiring and reduces the number of power supply output circuits required.
• Mixed signal-type flexibility: Each channel can be independently configured for voltage or current input via jumper selection on the module terminal block. A single 1746-NI4/B can simultaneously accept a 4–20 mA pressure transmitter, a 0–10 V DC position sensor, a 1–5 V DC temperature transmitter, and a ±10 V DC velocity feedback signal — reducing module count and chassis slot consumption.
• Native RSLogix 500 diagnostics: The module populates a dedicated status word in the input image table that reports per-channel overrange, underrange, and open-wire conditions (in current mode). These bits can be directly addressed in ladder logic for alarm annunciation without any custom function block development.
• High-resolution PID feedback: At 16-bit resolution, the module provides 65,536 discrete measurement steps across the input span. For a 4–20 mA transmitter with a 0–100 bar range, this yields a resolution of approximately 0.0015 bar per count — sufficient for precision pressure control applications where 12-bit modules (4,096 counts, ~0.024 bar/count) introduce unacceptable quantization error into the derivative term.
• Noise immunity in VFD-dense environments: The differential input topology and 250 V AC isolation barrier allow the module to operate reliably in panels where variable-frequency drives generate common-mode noise in the 2–20 kHz range. The instrumentation amplifier’s CMRR characteristic attenuates this interference by a factor exceeding 100:1 at the relevant frequencies.
• Slot-compatible with all SLC 500 chassis: The 1746-NI4/B installs in any I/O slot of the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 chassis without mechanical or electrical modification. Slot assignment is software-defined in RSLogix 500, enabling hot-swap replacement in systems with redundant power supplies without processor restart.
• Scalable channel density: For applications requiring more than four analog inputs, the 1746-NI4/B can be combined with the 1746-NI8 (8-channel) or 1746-NI16I/NI16V (16-channel) modules within the same chassis. All modules share the same RSLogix 500 configuration interface and input image table addressing scheme, simplifying multi-module system commissioning.

Quality Assurance & Global Logistics

Every 1746-NI4/B unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Electrical testing covers power-on initialization, backplane communication handshake verification, per-channel analog accuracy check at three calibration points (0%, 50%, and 100% of full scale), and overrange fault bit assertion confirmation. Units that do not meet factory-specified accuracy tolerances are quarantined and not offered for sale.

All stock is sourced through traceable supply channels. New units are supplied in original Allen-Bradley factory packaging with intact tamper-evident seals. Refurbished units are cleaned, re-labeled with condition status, and re-tested to the same electrical acceptance criteria as new stock. A 12-month warranty applies to all units from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country import requirements. Dangerous goods classification does not apply to this product. Customs HS code 8537.10 is applicable for most jurisdictions.

For time-critical plant shutdowns or emergency replacement scenarios, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. Contact our technical sales team to verify real-time stock status and arrange expedited shipment.
