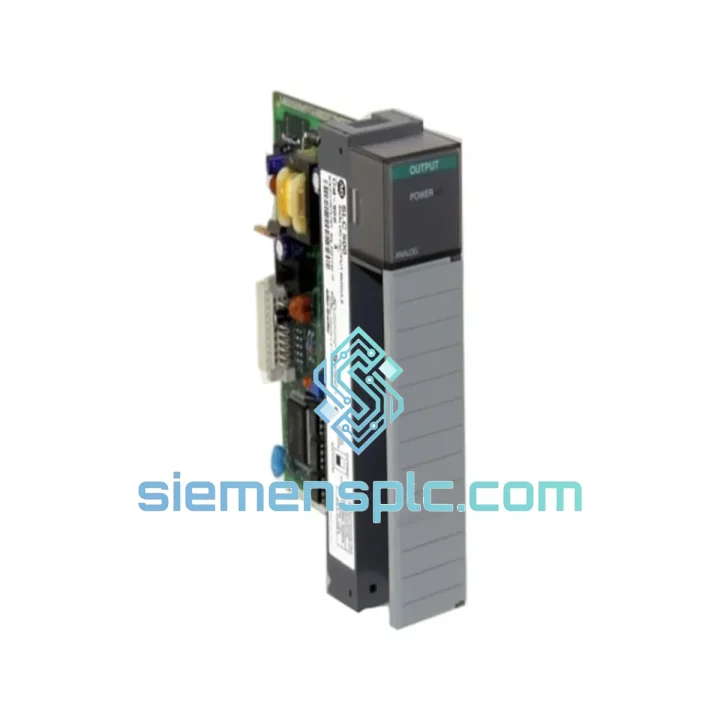

Allen-Bradley 1746-NIO4I Analog I/O Module

1746-NIO4I Down? Every Minute Costs You — Get Back Online Fast

It’s 2 AM. Your SLC 500 rack throws a fault. The 4–20 mA loop feeding your reactor pressure PID goes dead. The operator calls. The shift supervisor calls. Then the plant manager calls. You already know the culprit before you pull the drawer — the 1746-NIO4I isolated analog combo module has failed, and without a spare on the shelf, you’re looking at a production halt that compounds by the hour.

We stock the Allen-Bradley 1746-NIO4I specifically for this scenario. Not as a catalog listing — as a ready-to-ship unit, inspected, verified, and boxed in Xiamen, waiting for your call. While your procurement team is still filling out a purchase order, we’re already printing the DHL label.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Step 1 — Confirm the fault before you pull the module. In RSLogix 500, navigate to the I/O Configuration tree and check the module’s status word (S:5). A Module Fault bit (bit 0) set to 1 with no wiring fault on the field side is your clearest indicator the 1746-NIO4I itself has failed, not the field instrument.

Step 2 — Power down the chassis correctly. The SLC 500 backplane does not support hot-swap on analog modules. Cut power to the 1746-P series power supply before extraction. Attempting a live swap risks corrupting the processor’s I/O image table and can damage the backplane connector pins — a far more expensive repair than the module itself.

Step 3 — Slot addressing is automatic, but verify it. The 1746-NIO4I uses rack-based addressing. When you seat the replacement in the same physical slot, the processor will automatically assign the same slot number. No DIP switches, no rotary encoders. However, if the module was previously in a non-standard slot position due to a rack reconfiguration, open RSLogix 500 and confirm the I/O Configuration matches the physical slot before going online.

Step 4 — Reconfigure channel ranges in RSLogix 500. Unlike discrete modules, the 1746-NIO4I stores its channel configuration (input/output range selection) in the processor’s I/O configuration table — not in the module’s onboard memory. This means a replacement module will inherit the correct configuration automatically when the processor goes back online, provided the RSLogix 500 project file is intact. If the project was lost, you’ll need to re-enter the channel configuration manually: go to I/O Configuration → double-click the module → set each channel’s input/output type and range.

Common fault codes to know:

• Error 0010h (Channel Fault): Open-circuit on a 4–20 mA input channel. Check field wiring continuity and transmitter power supply before condemning the module.
• Error 0020h (Calibration Error): Module’s internal calibration reference has drifted or failed. This is a hardware fault — replace the module.
• Error 0080h (Configuration Mismatch): The channel type configured in RSLogix 500 does not match what the module is detecting. Verify the I/O configuration table matches your actual wiring (current vs. voltage).
• Processor Fault Code F001: I/O module removed or failed during operation. Clears automatically once a valid replacement is seated and the processor is taken out of fault mode.

Step 5 — Verify analog accuracy after replacement. Apply a known reference signal (e.g., 4.000 mA from a calibrated loop calibrator) to input channel 0 and confirm the raw count in the input data file reads within ±2 counts of the expected value (approximately 819 counts for 4 mA on a 0–20 mA range). If the reading is significantly off, the module may require factory calibration — contact Rockwell Automation’s repair services or use a third-party calibration lab.

Reliability in Harsh Conditions

The 1746-NIO4I was engineered for the environments where analog signal integrity is hardest to maintain. Channel-to-channel and channel-to-backplane isolation — rated to withstand common-mode voltages — means that even when your field instruments are grounded at different potentials across a large plant, the module absorbs the difference without corrupting your signal or tripping a ground fault.

Vibration is the silent killer of analog electronics. Solder joint fatigue from continuous mechanical vibration — common near compressors, pumps, and conveyors — is a leading cause of intermittent analog faults that are notoriously difficult to diagnose. Rockwell Automation’s manufacturing process for the 1746 series uses conformal coating on the PCB assembly, providing a barrier against moisture ingress and condensation in high-humidity environments such as food processing washdown areas and coastal installations.

Operating temperature range of 0°C to 60°C covers the vast majority of industrial panel enclosures, even in non-air-conditioned environments in tropical climates. For installations approaching the upper limit, ensure adequate panel ventilation and verify that the total backplane current draw of all installed modules does not exceed the 1746-P series power supply’s rated output — thermal derating of the power supply is the most common cause of unexplained module faults in hot environments.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions and packed in anti-static bags with desiccant packs inside moisture barrier packaging. Long-term storage in humid environments is a known cause of PCB corrosion on surplus industrial electronics — our storage and packaging protocols are designed to deliver a module in the same condition it left the factory.

Global Express Logistics

Our fulfillment operation runs out of Xiamen, China — one of the most logistics-connected export hubs in Asia, with direct DHL and FedEx gateway access. Here’s what happens after you confirm your order:

• Same-day dispatch for orders confirmed before 3:00 PM CST (UTC+8). Orders confirmed after cutoff ship the following business morning.
• DHL Express Worldwide — typical transit times: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 3–4 days, South America 5–7 days.
• FedEx International Priority available as an alternative carrier for destinations where FedEx has stronger coverage or preferred customs clearance relationships.
• Full export documentation provided: commercial invoice, packing list, and certificate of origin. For regulated industries requiring additional documentation (e.g., end-user certificates), contact us in advance.
• Real-time tracking shared via email immediately upon label generation. You’ll have a tracking number before the courier collects the package.
• Customs value declared accurately — we do not under-declare shipment values. This protects you from customs seizure and ensures your import records are clean.

For critical downtime situations, contact us directly on WhatsApp for real-time coordination. We can confirm stock, generate a pro-forma invoice, and have a label printed within the hour.
