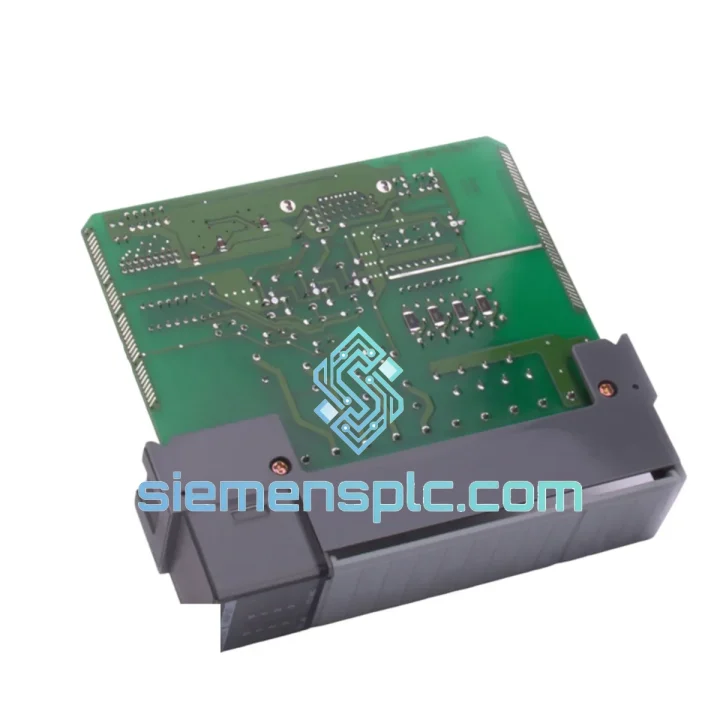

Allen-Bradley 1746-NOI4I Analog Output Module – SLC 500 Series

Allen-Bradley 1746-NOI4I: Four-Channel Galvanically Isolated Analog Output Module in the SLC 500 Control Architecture

In a closed-loop process control system, the analog output module is the final computational element before the physical world. It converts a 16-bit integer value held in the SLC 500 output image table into a precision current or voltage signal that drives a control valve positioner, a variable-frequency drive speed reference, or an electro-pneumatic converter. The 1746-NOI4I performs this conversion across four independent channels, each separated from the others and from the backplane by a 250 V AC galvanic barrier. That isolation architecture is not a convenience feature — it is a fundamental requirement in any installation where field devices operate at different ground potentials, where long cable runs accumulate common-mode noise, or where a fault on one output channel must not propagate to adjacent loops.

The SLC 500 platform, introduced by Allen-Bradley in the late 1980s and still actively maintained under Rockwell Automation’s extended lifecycle policy, remains the backbone of process control in oil and gas separation trains, food-grade CIP systems, municipal water treatment dosing stations, and metals rolling mill hydraulics. The 1746-NOI4I is the highest-isolation-density analog output card in the 1746 I/O family: four isolated channels in a single chassis slot, compared to the non-isolated 1746-NO4I which shares a common field return across all channels. For retrofit, expansion, and MRO procurement projects where a full platform migration to ControlLogix is not economically justified, the 1746-NOI4I remains the technically correct and commercially available solution.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Per-Channel Isolation Architecture
The 1746-NOI4I implements transformer-coupled DC-DC conversion on the field side of each channel, supplying an isolated floating power rail to the output DAC and its associated drive circuitry. The digital control signals from the backplane cross the isolation barrier via optocouplers rated at 250 V AC working voltage. This topology means that a ground fault on channel 3 — for example, a shorted cable to a valve positioner at a different earth potential — does not inject common-mode current into channels 1, 2, or 4, and does not disturb the backplane 5 VDC logic rail. In non-isolated modules such as the 1746-NO4I, all four channel returns are tied to a single common terminal; a ground potential difference of even 2–3 V between field devices introduces a DC offset error that cannot be corrected in software.

12-Bit DAC and Output Drive Stage
Each channel uses a 12-bit digital-to-analog converter with an output span of 4,095 counts. In 4–20 mA mode, each count represents approximately 3.9 µA of output current — sufficient resolution for valve positioning applications where the actuator’s mechanical deadband is typically 0.1–0.5% of stroke. The current output stage is a voltage-controlled current source (VCCS) topology: the DAC produces a reference voltage, and a precision op-amp with a sense resistor in the feedback path forces the output current to track that reference regardless of load impedance variations within the 0–750 Ω specification. This architecture maintains output accuracy even as cable resistance changes with temperature.

EMC Design and Noise Immunity
The module’s PCB layout routes the isolated field-side circuitry on a physically separated copper pour, with a guard ring between the field and logic sections to suppress capacitive coupling at high frequencies. The RTB connector shell is bonded to chassis ground, providing a low-impedance path for cable shield termination. In installations near variable-frequency drives — a common source of conducted and radiated EMI at switching frequencies of 2–16 kHz — the isolation barrier attenuates common-mode interference by a factor consistent with the 250 V AC isolation rating, preventing noise from coupling into the SLC 500 backplane data bus.

Backplane Communication Protocol
The 1746-NOI4I communicates with the SLC 500 processor via the 1746 parallel backplane bus, which operates at a fixed scan rate synchronized to the processor’s I/O scan. The module’s output image occupies a contiguous block of 16-bit words in the SLC output file (O:e.w format), with each channel’s setpoint encoded as a signed integer in the range −32,768 to +32,767 mapped to the configured output span. The module performs the integer-to-analog conversion within one backplane scan cycle, contributing negligible latency to the overall control loop execution time.

System Integration Benefits

• Zero-rewire module replacement via RTB: The removable terminal block retains all field wiring when the module body is extracted. A technician can swap a failed 1746-NOI4I in under 10 minutes without touching a single field wire, reducing mean time to repair (MTTR) and eliminating the risk of wiring errors during emergency maintenance.
• Per-channel output type flexibility: Each of the four channels can be independently configured for 4–20 mA, 0–20 mA, 0–10 VDC, or ±10 VDC in the RSLogix 500 I/O configuration tree. A single module can simultaneously drive a current-input valve positioner on channel 1 and a voltage-input drive speed reference on channel 2, eliminating the need for separate current-only and voltage-only cards.
• Diagnostic transparency via output image table: Open-wire faults and out-of-range conditions are reported as status bits in the SLC 500 output data file. The PLC program can monitor these bits and trigger operator alarms or safe-state logic before a process upset propagates to downstream equipment.
• Deterministic scan-cycle integration: Because the 1746-NOI4I updates its outputs synchronously with the SLC processor’s I/O scan, the analog output update time is bounded and predictable — a requirement for PID control loops where variable output latency introduces phase lag and degrades loop stability margins.
• Ground-loop immunity in multi-drive installations: In systems where multiple VFDs share a common AC supply but have separate PE (protective earth) connections at different physical locations, ground potential differences of 1–5 V are common. The 1746-NOI4I’s per-channel isolation prevents these potentials from appearing as offset errors on the analog output signal.
• IEC 61131-2 compliance for international projects: CE marking under the EMC Directive and compliance with IEC 61131-2 equipment requirements allows the 1746-NOI4I to be specified in control system designs for European and international projects without additional EMC testing at the panel level, provided the installation follows the module’s wiring guidelines.
• Compatibility with SLC 5/03 through 5/05 processors: The module operates identically across all three SLC 500 processor generations, making it suitable for both legacy 5/03-based systems and more recent 5/05 Ethernet-connected installations. No firmware upgrade or program modification is required when moving the module between processor types.
• Reduced spare-parts inventory cost: A single 1746-NOI4I covers all four standard analog output signal types. Facilities that previously stocked separate current-output and voltage-output modules can consolidate to a single part number, reducing carrying cost and the risk of stocking the wrong module type for an emergency repair.

Quality Assurance & Global Logistics

Every 1746-NOI4I unit dispatched from our Xiamen, China facility undergoes a structured four-stage verification protocol before packaging:

Stage 1 — Physical and Label Inspection: Board-level examination under magnification for corrosion on connector pins, damaged PCB traces, and label authenticity. Allen-Bradley factory markings, catalog number, series letter, and date codes are cross-referenced against known-good reference units.

Stage 2 — Functional Bench Test: The module is installed in a live SLC 500 chassis with a 1747-L541 processor. All four channels are exercised across the full output range in both current (4–20 mA) and voltage (0–10 VDC) modes using a calibrated Fluke 789 ProcessMeter. Output accuracy is logged against the ±0.1% full-scale specification at ambient temperature.

Stage 3 — Isolation Integrity Verification: Channel-to-channel and channel-to-backplane isolation resistance is measured at 250 V DC using a Megger MIT400 insulation resistance tester. Any unit measuring below 100 MΩ is quarantined and not shipped.

Stage 4 — Documentation and Packaging: The module is cleaned with IPA, placed in an anti-static bag, and boxed with foam cushioning rated for the module’s 30 g shock specification. A functional test report, inspection checklist, and certificate of conformance (CoC) are included with each shipment.

Logistics from Xiamen, China: Xiamen is a designated free-trade port with direct air freight connections to major hubs in Europe (Frankfurt, Amsterdam), North America (Los Angeles, Chicago), Southeast Asia (Singapore, Kuala Lumpur), and the Middle East (Dubai). Standard export documentation — commercial invoice, packing list, CoC, and country-of-origin declaration — is prepared as standard for every shipment. Typical transit times: 2–4 business days to Southeast Asia via DHL Express; 3–5 business days to Europe and North America via FedEx International Priority; sea freight available for bulk orders with 7–14 day transit to major ports.
