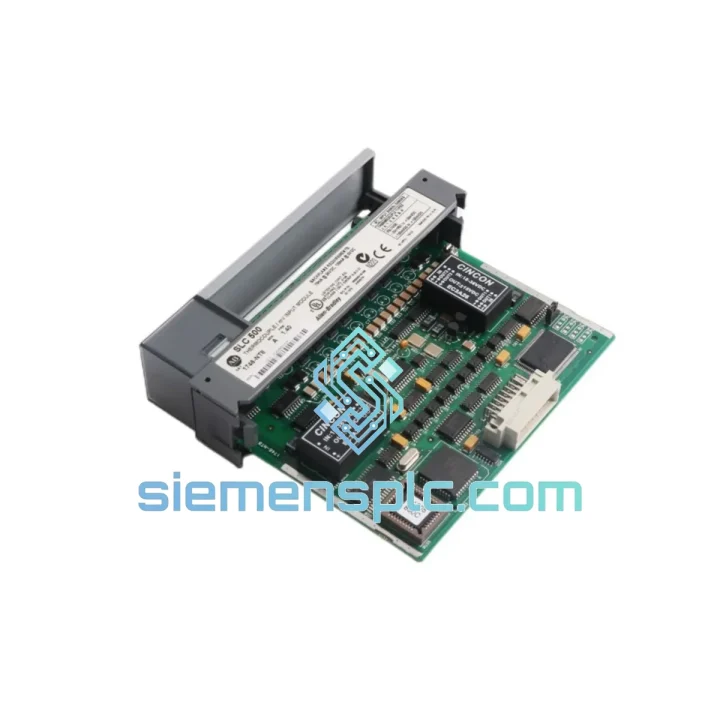

Allen-Bradley 1746-NT8 Analog Input Module – SLC 500

Allen-Bradley 1746-NT8: Eight-Channel Thermocouple/mV Analog Input Module for SLC 500 Control Architecture

The 1746-NT8 occupies a single slot in any SLC 500 modular chassis and delivers eight fully isolated thermocouple or millivolt input channels to the processor’s input image table. Within a closed-loop temperature control architecture, this module functions as the primary signal acquisition node: it conditions low-level thermocouple EMF signals—ranging from microvolts to tens of millivolts—into 16-bit digital words that the SLC processor consumes on every scan cycle. The absence of any external signal conditioner or transmitter between the thermocouple junction and the backplane eliminates one conversion stage, reducing latency and potential error accumulation in the measurement chain.

Each channel operates with individual galvanic isolation, which is architecturally significant in multi-point thermocouple installations where sensor ground potentials differ across measurement locations. Without per-channel isolation, ground loop currents would superimpose on the thermocouple EMF, introducing systematic offset errors that are difficult to diagnose and impossible to compensate in software. The 1746-NT8’s isolation barrier breaks these ground loops at the hardware level, before the ADC stage.

Automatic cold junction compensation (CJC) is performed by an on-board thermistor mounted at the terminal block. The module’s internal firmware reads the thermistor continuously and applies the Seebeck coefficient correction for the configured thermocouple type, producing a compensated temperature output in engineering units. This eliminates the need for isothermal terminal blocks or external reference junction hardware, simplifying field wiring and reducing BOM cost at the panel level.

The 16-bit ADC provides a resolution of approximately 0.003°C per count across the ±100 mV input range, which is sufficient for all standard industrial thermocouple types. For J-type thermocouples operating across a 0–760°C span, this translates to a digital resolution finer than 0.02°C—well below the thermocouple’s inherent measurement uncertainty. The module therefore does not introduce quantization error as a limiting factor in temperature measurement accuracy.

Common mode rejection is rated at 120 dB at 50/60 Hz. In practical terms, this means a 120 V common mode disturbance at power line frequency—typical near motor drives, contactors, or transformer secondaries—produces less than 0.12 mV of differential error at the ADC input. For a K-type thermocouple with a Seebeck coefficient of approximately 41 µV/°C, this corresponds to a temperature error below 3°C under worst-case EMC conditions, without any additional filtering.

The module draws 150 mA from the 5 VDC backplane rail and requires no external 24 VDC supply. Power dissipation is 0.75 W maximum. In chassis power budget calculations, the 1746-NT8 imposes a lower thermal load than most discrete I/O modules, making it suitable for high-density chassis configurations where slot power budgets are constrained.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1746-NT8’s signal path begins at the screw-terminal input, where the thermocouple wire connects directly to the module’s front-face terminal block. An on-board isolation barrier—implemented via transformer-coupled or optocoupler-based isolation depending on revision—separates the field-side circuitry from the backplane-side logic. This barrier sustains the channel’s galvanic isolation rating and is the primary defense against common mode transients induced by nearby power switching events.

The analog front end applies a low-pass filter ahead of the ADC to attenuate high-frequency noise and alias components above the Nyquist frequency of the sampling rate. The filter cutoff is set to reject 50/60 Hz interference (normal mode rejection: 60 dB), which is the dominant noise source in industrial panel environments where thermocouple wiring runs parallel to power conductors.

The 16-bit successive approximation ADC samples each channel in a round-robin sequence. Between samples, the multiplexer switches to the next channel and allows a settling time sufficient for the input filter to stabilize before conversion begins. This architecture avoids simultaneous sampling but ensures that all eight channels are updated within a deterministic 160 ms window—a characteristic that must be accounted for in control loop timing analysis when the SLC processor’s RPI is shorter than the module’s full scan period.

The CJC thermistor is read on the same ADC cycle and its value is applied to each channel’s conversion result using the standard thermocouple polynomial correction stored in the module’s firmware ROM. The correction is type-specific: the module applies the NIST ITS-90 thermocouple reference function for the configured type, ensuring that the engineering unit output is traceable to international temperature standards without requiring external calibration hardware.

EMC design on the 1746-NT8 follows Rockwell Automation’s standard industrial hardening approach: the PCB ground plane is segmented to isolate analog and digital return paths, ferrite beads are placed on backplane interface lines to suppress high-frequency conducted emissions, and the module housing provides a Faraday shield effect when properly seated in a grounded chassis. These measures collectively allow the module to operate within IEC 61000-4 immunity levels for conducted and radiated disturbances.

System Integration Benefits

• Direct backplane data transfer: Channel values are written to the SLC input image table (I:x.0 through I:x.7) on every module scan, making all eight temperature readings available to ladder logic without MSG instructions or explicit read commands.
• Per-channel type configuration: Each of the eight channels is independently configurable for thermocouple type and output format (°C, °F, or raw counts) via RSLogix 500 channel configuration words, eliminating the need for separate modules when mixed thermocouple types are present in the same panel.
• Deterministic scan timing: The 160 ms full-scan period is fixed and independent of processor load, providing a predictable data latency figure for control loop design and alarm response time calculations.
• Open-circuit detection: The module drives the channel output to a defined over-range value (32,767 counts) when an open thermocouple is detected, allowing the SLC program to implement sensor fault logic using a simple threshold comparison in ladder.
• No external power supply required: Backplane-only power draw simplifies panel design and eliminates a potential single point of failure associated with a dedicated 24 VDC analog supply rail.
• Slot-for-slot replacement: The 1746-NT8 is a direct drop-in replacement for any existing 1746-NT8 in a running system; no chassis modification, wiring change, or processor firmware update is required.
• Diagnostic transparency: Channel status bits in the input image table indicate over-range, under-range, and open-circuit conditions per channel, providing the SLC program with structured fault data that can be mapped directly to HMI alarm displays without custom diagnostic routines.
• Scalable channel density: Multiple 1746-NT8 modules can be installed in the same chassis, with each module occupying one slot and contributing eight additional temperature inputs. The SLC 500 I/O addressing scheme accommodates up to 30 I/O modules per chassis string, allowing temperature input counts to scale linearly with process requirements.

Quality Assurance & Global Logistics

Every 1746-NT8 unit supplied is sourced as genuine Allen-Bradley / Rockwell Automation hardware. Units are inspected against Rockwell Automation reference documentation, including PCB layout verification, component marking authentication, and label integrity checks. Counterfeit screening follows established industry protocols for surplus industrial automation components.

Prior to shipment, each unit undergoes a structured functional test sequence: power-on self-test verification, backplane communication handshake with a reference SLC processor, and channel-level signal injection using a calibrated thermocouple simulator across at least two thermocouple types. Units that fail any test stage are quarantined and not offered for sale.

Packaging uses anti-static bags with humidity indicator cards, enclosed in foam-lined corrugated cartons rated for international air freight handling. ESD-safe procedures are maintained throughout the inspection, testing, and packing workflow.

Shipments originate from Xiamen, China, via DHL Express, FedEx International Priority, or SF Express International, depending on destination and customer preference. Standard transit times are 3–5 business days to most destinations in Asia, Europe, and North America. Full export documentation is provided with every shipment: commercial invoice, packing list, and certificate of origin. HS code 8537.10 applies for customs classification in most jurisdictions. Emergency same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

A 12-month warranty covers functional defects arising under normal operating conditions as defined in the Rockwell Automation 1746-NT8 product specification. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit.
