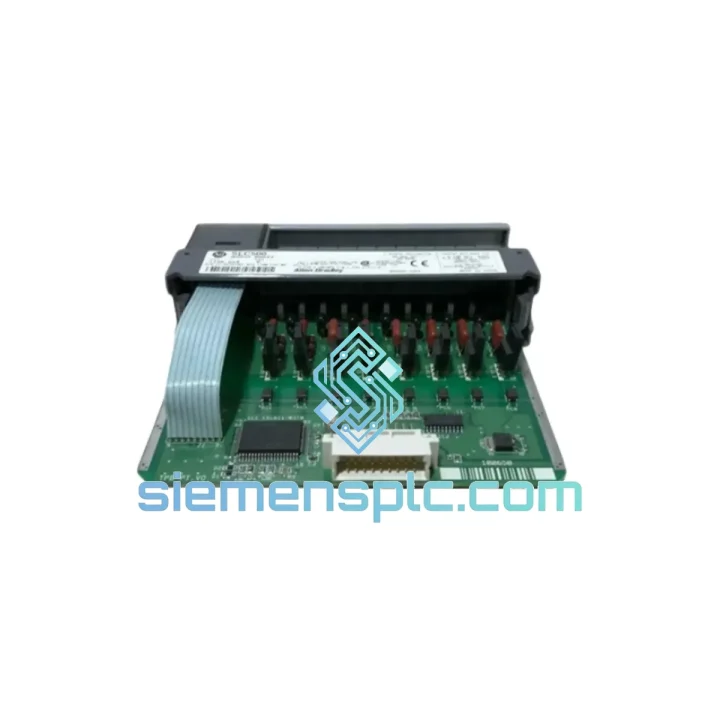

Allen-Bradley 1746-OA8 AC Output Module

Allen-Bradley 1746-OA8 — SLC 500 AC Output Module: Stop the Clock on Your Downtime

Every minute a production line sits idle costs money. When an AC output module fails in your SLC 500 rack, you need a verified replacement on-site — not a lead-time quote. The Allen-Bradley 1746-OA8 is an 8-point 120/240V AC triac output module for the SLC 500 modular platform. We stock it in Xiamen, China, and ship globally via DHL/FedEx Express. From the moment you send your RFQ to the moment the unit clears your receiving dock, our process is built around one objective: getting your line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1746-OA8 fails in predictable ways. Here is what field experience tells you to check before you pull the module — and what to do when you do pull it.

Common Fault Signatures:

• Output LED on, load not energized: Triac has opened internally. Measure voltage across the output terminals with load connected. If you read full line voltage with the output commanded ON, the triac is open-circuit. Module replacement required.
• Output LED off, load permanently energized: Triac has shorted (latched). This is the more dangerous failure mode — the load cannot be de-energized via software. Isolate the field circuit immediately, then replace the module. Check for inductive load spikes exceeding the 10A surge rating as the root cause.
• Intermittent output dropout at high ambient temperature: Thermal derating. The 1746-OA8 derate curve begins above 40°C. Verify panel ventilation and check that the 4.0A per-module continuous limit is not being exceeded across all 8 points simultaneously.
• RSLogix 500 Fault Code I/O Fault (fault type 0x0083): Backplane communication loss. Reseat the module first. If the fault persists after power cycle, the module’s backplane interface logic has failed — replace the unit.
• Nuisance tripping on inductive loads: Triac turn-off requires load current to cross zero. Highly inductive loads (contactors, solenoids) with poor power factor can cause erratic behavior. Add a snubber network (typically 0.1 µF / 47 Ω in series) across the output terminals.

Step-by-Step Replacement Procedure:

1. Document slot position. Note the chassis slot number before removal. RSLogix 500 maps I/O addresses by slot — the replacement must go into the exact same slot or you must update the I/O configuration file.
2. Power down the chassis. The 1746-OA8 is not hot-swap rated. Remove the 1746-series power supply input before touching the module. Verify zero voltage on the backplane with a meter.
3. Remove the RTB first. Unscrew the removable terminal block and set it aside with field wiring intact. This is the key advantage of the RTB design — no rewiring required on the replacement unit.
4. Extract the module. Press the top and bottom locking tabs simultaneously and slide the module out of the chassis slot.
5. Inspect the backplane connector. Check for bent pins or carbon tracking on the chassis backplane connector before inserting the replacement. A damaged backplane connector will destroy the new module.
6. Insert the replacement 1746-OA8. Align the module with the slot guides and press firmly until both locking tabs click. Do not force — misalignment will bend backplane pins.
7. Reattach the RTB. Reconnect the original terminal block. No re-termination needed.
8. Power up and verify. Restore power. In RSLogix 500, go online and verify the module appears in the I/O tree without fault indicators. Force each output point individually and confirm field-side response with a meter or indicator lamp.
9. No firmware configuration required. The 1746-OA8 is auto-addressed by the SLC processor based on slot position. There are no DIP switches, no firmware to flash, and no module-level configuration — the processor reads the module’s electronic keying data automatically on power-up.

Reliability in Harsh Conditions

The 1746-OA8 was designed for the industrial floor, not a climate-controlled server room. Its construction reflects the mechanical and electrical stresses of real production environments:

• Vibration resistance: The module meets IEC 60068-2-6 sinusoidal vibration testing (5–500 Hz, 2g). The conformal-coated PCB prevents solder joint fatigue under continuous mechanical vibration from compressors, presses, and conveyor drives mounted in the same panel.
• Thermal cycling tolerance: Rated for 0°C to 60°C operating range with storage down to -40°C. The triac output devices are thermally bonded to the module housing to dissipate heat without requiring external heatsinks at rated load.
• Humidity and condensation: Tested to 5–95% RH non-condensing per IEC 60068-2-78. The optical isolation barrier between the field terminals and the backplane logic prevents moisture-induced leakage currents from corrupting the SLC processor’s I/O data table.
• EMC immunity: Compliant with EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/burst), and EN 61000-4-5 (surge). The optical coupler provides galvanic isolation that blocks common-mode noise from AC field wiring from reaching the 5V DC backplane logic.
• Surge current handling: The triac is rated for 10A for 43 ms — sufficient to handle the inrush current of resistive heating elements and small motor starters without nuisance failure. For loads with higher inrush, interposing contactors are recommended.

Global Express Logistics

Our warehouse is located in Xiamen, China (Fujian Province), a major export hub with direct access to DHL, FedEx, and UPS international express networks. Here is how a typical urgent order moves:

• Order confirmation: RFQ received via email or WhatsApp → stock verified → proforma invoice issued within 2 hours during business hours (UTC+8).
• Same-day dispatch: Orders confirmed and paid before 15:00 CST are packed and handed to the carrier the same business day.
• Export documentation: Commercial invoice, packing list, and HS Code 8537.10 declaration prepared for customs clearance. For EU destinations, EUR.1 or origin certificates available on request.
• Transit times (DHL/FedEx Express): Southeast Asia 1–2 days | Europe 3–5 days | North America 3–5 days | Middle East 3–4 days | Australia 3–4 days.
• Tracking: AWB number provided immediately after dispatch. Real-time tracking link shared via email and WhatsApp.
• Packaging: ESD-safe anti-static bag, foam-lined carton, moisture barrier. The module arrives at your site in the same condition it left our warehouse.

For multi-unit orders or project-based procurement requiring consolidated shipment, contact us to discuss freight options and lead-time scheduling.
