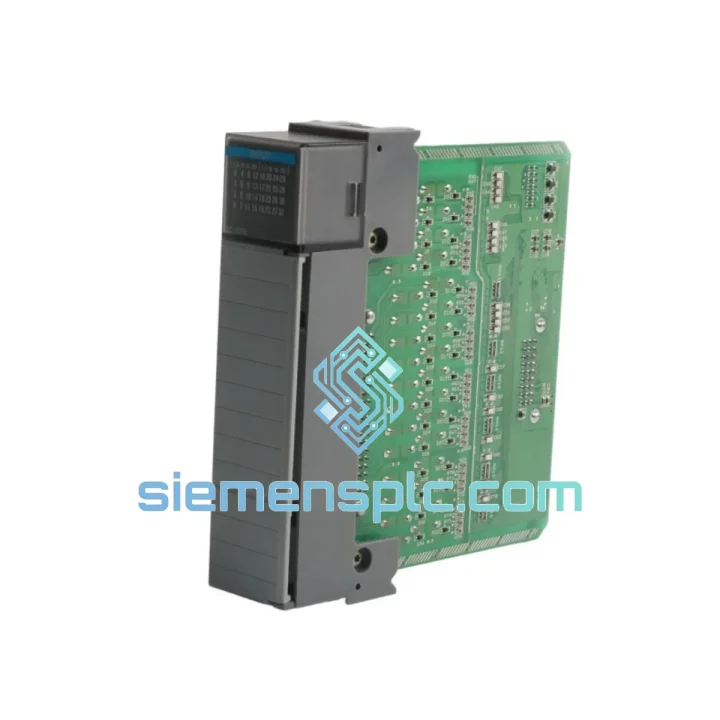

Allen-Bradley 1746-OB16 PLC Output Module

Allen-Bradley 1746-OB16 — Stop the Bleeding: 16-Point DC Output Module Shipped Within 24 Hours

Your SLC 500 rack just threw a fault. Outputs are dead. The line is down. Every minute costs you — in labor, in product, in customer penalties. You don’t need a sales pitch. You need the right module on a truck today. The Allen-Bradley 1746-OB16 is in stock at our Xiamen warehouse. We’ve done this before — same-day dispatch to plants in Germany, Mexico, Thailand, and Australia. We’ll do it for you now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 1746-OB16 is straightforward if you know the traps. Here’s what 10 years of field calls have taught us:

1. Confirm the fault is the module, not the load. Before pulling the card, check each output LED. If LEDs are ON but field devices aren’t responding, the fault is downstream — wiring, fuse, or load. If LEDs are dark with the processor commanding outputs, the module is the suspect. Use a multimeter at the terminal block: you should see supply voltage on energized points. No voltage = dead output transistor.

2. Power down the chassis before extraction. The SLC 500 backplane is not hot-swap rated for I/O modules. Pulling a 1746-OB16 under power risks backplane damage and processor faults. Cycle the rack power supply, extract the module, seat the replacement, then power up.

3. No DIP switches, no addressing — plug and play. Unlike some older I/O families, the 1746-OB16 carries no physical addressing switches. Slot position in the chassis determines the I/O address in RSLogix 500. If you’re replacing a failed module in the same slot, the ladder logic address (e.g., O:3/0 through O:3/15) remains valid with zero program changes.

4. Check for common fault codes. After power-up, if the SLC processor throws a Major Fault Type 1 (I/O configuration mismatch), open RSLogix 500, navigate to I/O Configuration, and verify the slot is mapped to OB16. If a previous tech had the slot set to a different module type, update the configuration and download. Clear the fault and go online.

5. Inductive load suppression. If your outputs drive solenoid valves or relay coils — and they almost certainly do — verify suppression diodes are installed across each load. Without them, back-EMF spikes will degrade output transistors over time, causing intermittent failures that are notoriously difficult to diagnose. This is the #1 cause of premature 1746-OB16 failure in the field.

6. Verify firmware compatibility. The 1746-OB16 has no onboard firmware — it’s a discrete I/O module. Processor firmware version is irrelevant to module compatibility. Any SLC 500 processor (1747-L20 through 1747-L553) will recognize the OB16 without issue.

7. Wiring polarity on sourcing outputs. The OB16 is a sourcing (PNP) module. Load common connects to the module’s common terminal; the output terminal supplies +VDC to the load. If you’re replacing a sinking (NPN) module from a different platform, field wiring will need to be reversed. Confirm your field devices are PNP-compatible before installation.

Reliability in Harsh Conditions

The SLC 500 platform was engineered for the factory floor, not the server room. The 1746-OB16 reflects that design philosophy at the component level. Optical isolation between the field terminals and the backplane bus means that voltage spikes, ground loops, and inductive transients from motor starters and solenoids are blocked before they can propagate into the processor. In practice, this translates to a module that survives the electrical environment of a steel mill or a chemical plant without nuisance faults.

Operating range of 0°C to 60°C covers the majority of industrial enclosure environments, including panels mounted near furnaces, compressors, and outdoor equipment in tropical climates. The -40°C storage rating means modules can be warehoused in unheated facilities without risk of component degradation — relevant for MRO stock held in cold-climate plants.

Vibration tolerance is inherent in the module’s construction: the PCB is conformally coated on production runs, and the connector interface is a robust backplane edge connector rated for repeated insertion cycles. Field experience across automotive stamping lines — where vibration levels routinely exceed 2G — confirms the OB16 maintains reliable contact without the connector fatigue seen in some competing I/O families.

Humidity tolerance up to 95% non-condensing addresses coastal and tropical installations where panel breathing cycles introduce moisture. Combined with the anti-static, desiccant-packed shipping configuration we use from Xiamen, modules arrive at your site in the same condition they left our warehouse.

Global Express Logistics

Our dispatch process is built around one constraint: your line cannot wait. From our Xiamen warehouse, the standard flow is as follows:

Order confirmation → same-day picking and inspection → export documentation prepared in parallel → DHL Express or FedEx International Priority handoff within 24 hours of payment confirmation.

Transit times from Xiamen to major industrial hubs: Frankfurt 2–3 business days, Detroit 3–4 business days, Singapore 1–2 business days, São Paulo 4–5 business days, Melbourne 3–4 business days. For plant-down emergencies, we can arrange Saturday pickup with DHL and provide AWB tracking within 2 hours of dispatch.

Export documentation — commercial invoice, packing list, and certificate of origin — is prepared to your country’s import requirements. For EU customers, we provide EUR.1 movement certificates where applicable. For US imports, HTS classification 8537.10 applies; we include the necessary documentation to support your customs broker.

All shipments are insured at declared value. Anti-static packaging with foam insert and outer carton is standard. For high-value orders or multiple modules, we use double-wall export cartons with corner protection. Tracking is shared via email and WhatsApp immediately upon dispatch.
