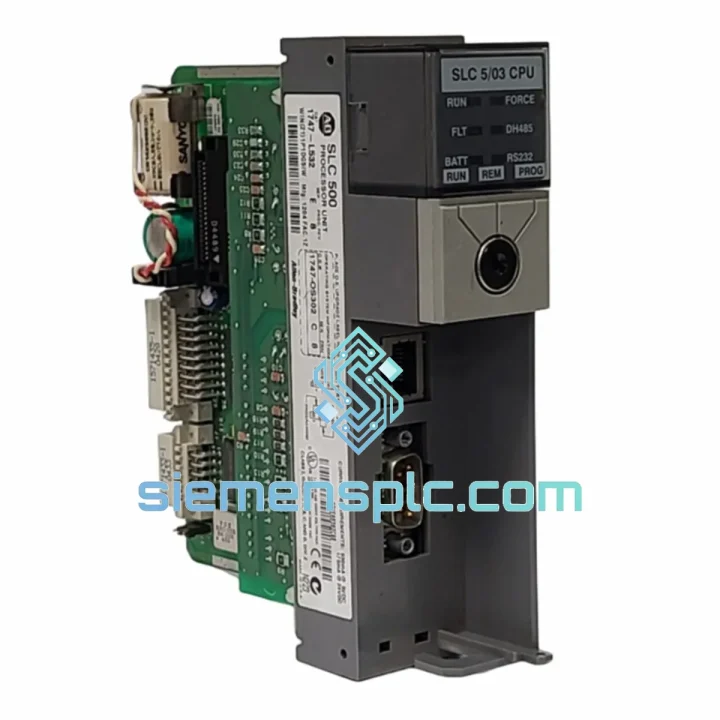

Allen-Bradley 1747-L532 SLC 5/03 CPU Module

1747-L532 Down? Every Minute Costs Money — Ship Today from Xiamen Stock

Your SLC 5/03 line just stopped. The 1747-L532 CPU is the brain of the chassis — when it fails, nothing moves. We stock verified Allen-Bradley 1747-L532 units in Xiamen, ready for same-day DHL/FedEx dispatch. While your competitors wait 6–12 weeks on factory lead times, your replacement is already packed. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on SLC 500 systems teach you the same patterns. Here is what actually happens on site and how to handle it fast:

Fault Code 0004 — Major Fault / CPU Halt: The processor has detected an unrecoverable internal error. Before condemning the 1747-L532, check the fault code in RSLogix 500 under Controller Properties → General → Major Fault. Code 0004 with Type 4 almost always means the CPU itself is gone — not a program issue. Pull the module, swap in the replacement, restore from your .RSS backup, and clear the fault. Do not attempt to re-flash a faulted CPU in the field.

Fault Code 0001 — Power-Up Fault: Seen after a power surge or brownout. The CPU loses its memory contents. If you have a memory module (1747-M11, M12, or M13) installed, the program will auto-restore on power-up. If not, you need your .RSS file and a laptop with RSLogix 500. This is why every SLC 500 installation should have a memory module — non-negotiable.

DH-485 Communication Loss: Channel 1 on the 1747-L532 runs DH-485 at up to 19.2 kbps. If your HMI or SCADA drops comms after a CPU swap, check the node address DIP switches on the front of the module. The replacement unit ships with node address 1 by default. Match it to the original unit’s address — typically found on the label or in your RSLogix 500 project under Channel Configuration. Mismatch here causes immediate comms failure that looks like a wiring fault.

RS-232 Channel 0 — DF1 Driver Issues: After swapping the CPU, if your programming laptop cannot connect via Channel 0, verify the baud rate and DF1 settings in RSLinx Classic. The 1747-L532 defaults to 19200 baud, DF1 Full-Duplex. If the original was configured differently, RSLinx will time out. Use the 1747-CP3 cable or a USB-to-serial adapter with a verified FTDI chipset — cheap adapters cause intermittent connection drops.

Firmware Revision Mismatch: The 1747-L532 has multiple series revisions (A, B, C). Series C is the latest. If your RSLogix 500 project was created on a Series A unit and you install a Series C, the software will prompt a firmware mismatch warning. This is non-critical — the program will still download and run. However, if you are using any advanced instruction sets introduced in later firmware, verify compatibility before going live.

Replacement Procedure — Step by Step:

1. Put the controller in Program mode via the keyswitch before powering down. Never hot-swap a SLC 500 CPU.
2. Document the DIP switch positions on the front panel (node address, baud rate) with your phone camera before removal.
3. Power down the chassis. Remove the 1747-L532 from Slot 0. Note the series letter on the label.
4. Set the DIP switches on the replacement unit to match the original configuration exactly.
5. Seat the new module firmly into Slot 0. Power up the chassis.
6. If a memory module is installed, the program auto-loads. If not, connect via RSLogix 500 and download your .RSS backup.
7. Clear any major faults, switch to Run mode, and verify I/O status in the data table.
8. Monitor for 15 minutes before handing back to operations.

Reliability in Harsh Conditions

The 1747-L532 was not designed for a climate-controlled server room. It was built for the plant floor — and it shows. The module operates continuously from 0°C to 60°C ambient, which covers the majority of industrial environments including foundries, outdoor enclosures in tropical climates, and poorly ventilated control panels in summer. Storage tolerance extends to -40°C, meaning units can be warehoused in unheated facilities without degradation.

Vibration resistance meets IEC 68-2-6 standards — the module withstands 2G continuous vibration across the 10–500 Hz range. This matters on press lines, compressor skids, and mobile equipment where chassis flex is a daily reality. The conformal-coated PCB provides a barrier against humidity ingress and airborne contaminants including cutting fluid mist, cement dust, and salt-laden coastal air. Humidity tolerance runs to 95% non-condensing, which covers most tropical and coastal plant environments without additional enclosure conditioning.

Every unit we ship from Xiamen is tested under load before packaging. We run a full power-on cycle, verify both communication channels, and confirm program download/upload functionality. Units that fail any step are quarantined — they do not ship. The result is a module that arrives ready to install, not one that fails on first power-up and costs you another day of downtime.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport (XMN), one of China’s primary cargo hubs with direct freight connections to Frankfurt, Los Angeles, Dubai, Singapore, and Sydney. This geography is deliberate — it means your replacement part moves from our shelf to an international flight within hours, not days.

Standard Express Routing: Orders confirmed before 14:00 CST ship same day. DHL Express and FedEx International Priority are our primary carriers. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days, Australia 3–4 days. All shipments include real-time tracking from pickup to delivery.

Documentation Package: Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring customs pre-clearance (common in Brazil, India, and Turkey), we prepare HS code documentation and can provide a proforma invoice in advance. HS code for the 1747-L532: 8537.10 (programmable controllers).

Packaging: The 1747-L532 ships in anti-static foam-lined packaging with humidity indicator cards. The outer carton is double-walled corrugated with fragile labeling. We have shipped to oil platforms in the North Sea, mining sites in Chile, and paper mills in Scandinavia — the packaging holds.

Urgent Freight Option: For absolute emergencies, we can arrange airport-to-airport cargo with local courier pickup at destination. Contact us directly on WhatsApp for same-day freight coordination.
