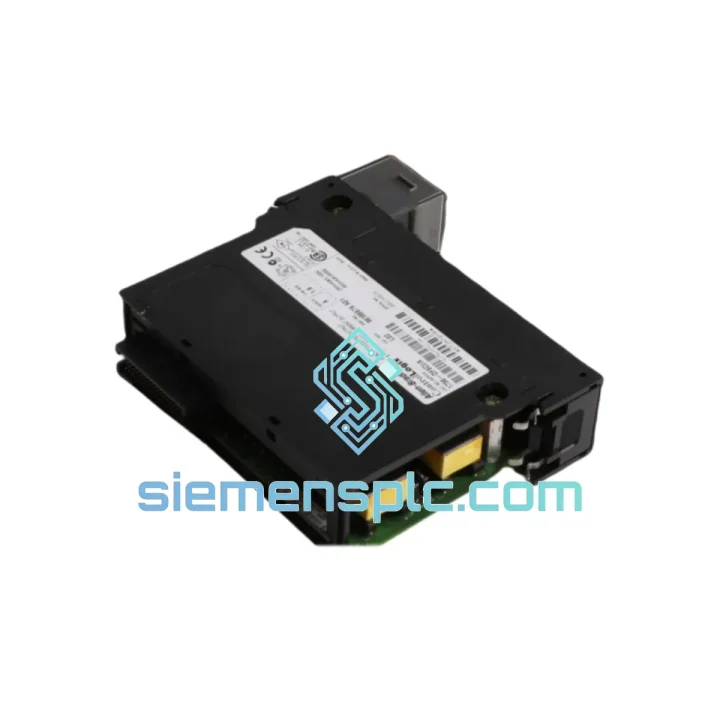

Allen-Bradley 1756-OF6CI/A Analog Output Module

1756-OF6CI/A Down? Every Minute Costs You Money — We Ship Today

Line stopped. Maintenance team on standby. Your DCS screen is throwing analog output faults on a ControlLogix rack and the 1756-OF6CI/A is the culprit. You’ve been there. We stock this module specifically for that moment. Same-day dispatch from Xiamen, DHL Express to your door — because a $400 module sitting on a shelf here is worth ten times that when your production line is dark.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on ControlLogix racks teach you patterns. Here is what actually goes wrong with the 1756-OF6CI/A and how to handle the swap without creating new problems:

Fault Code 16#0001 — Channel Fault / Open Wire: Before condemning the module, verify field wiring continuity on the suspect channel. A broken 4–20 mA loop wire triggers this fault identically to a failed output DAC. Disconnect the field device, jumper a 250 Ω resistor across the terminals, and command a mid-scale output. If the fault clears, the module is fine — your field wiring is the problem.

Fault Code 16#0010 — Over-Range / Under-Range: This fires when the commanded output value in the controller tag exceeds the configured engineering unit limits. Check your AO tag scaling in Studio 5000 — specifically the Output Maximum and Output Minimum parameters under Module Properties → Configuration. A PLC program change that altered the output scaling without updating the module configuration is the most common root cause.

Module Replacement Procedure (Hot-Swap Capable): The 1756-OF6CI/A supports hot insertion and removal in a powered chassis. However, before pulling the module, set all output channels to a safe state (typically 4 mA or 0 V) via your controller program to prevent actuator runaway. Remove the wiring connector first — it is keyed and will not re-seat incorrectly. Slide the old module out, insert the replacement, and reconnect the wiring block. The controller will automatically download the module configuration from its stored profile; no re-programming is required if the replacement carries the same catalog number and revision.

Revision Mismatch Warning: If you are replacing a /A revision with a later revision (e.g., /B), verify compatibility in the Rockwell Automation Product Compatibility and Download Center (PCDC). In most cases the controller will accept the new revision automatically, but confirm before committing to a live production swap.

Firmware Requirement: Full diagnostic tag support (including per-channel fault data in the input image) requires Logix 5000 firmware v20.011 or later. If your controller is running an older firmware, the module will function but channel-level diagnostics will not populate correctly in Studio 5000.

Ground Loop Check After Swap: With isolated outputs, ground loops are rare — but if you see erratic output readings after replacement, check that the field device common is not inadvertently tied to chassis ground at multiple points. The isolation is only effective if the loop is truly floating at the field end.

Reliability in Harsh Conditions

The 1756-OF6CI/A was not designed for a climate-controlled server room. Rockwell Automation built this module to survive the environments where process control actually happens — and the design choices reflect that.

The conformal coating on the PCB provides protection against condensation, airborne contaminants, and the humidity swings common in coastal and tropical plant environments. Operating humidity tolerance runs to 95% non-condensing, which covers the vast majority of real-world industrial installations without additional enclosure conditioning.

Vibration resistance meets IEC 61131-2 requirements — the same standard used to qualify equipment for continuous operation on compressor skids, pump stations, and mobile plant. The module’s backplane connector is a positive-latch design that does not work loose under sustained vibration, a failure mode that plagues cheaper third-party I/O in high-vibration applications.

Thermal performance is rated to 60 °C ambient — adequate for most panel installations, but worth monitoring in poorly ventilated enclosures during summer shutdowns. If your panel regularly exceeds 50 °C ambient, add forced-air cooling before the module becomes a recurring failure point. Storage down to –40 °C means the module can be warehoused in unheated facilities without risk of cold-soak damage to capacitors or solder joints.

The channel-to-channel and channel-to-backplane isolation architecture provides an additional layer of electrical robustness. In plants with heavy VFD installations or large motor switching loads, common-mode noise on analog loops is a persistent problem. The galvanic isolation in the 1756-OF6CI/A breaks the noise path at the module boundary, protecting both the controller backplane and the field instrumentation from transient damage.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent replacement orders, this geography matters: Xiamen’s port and air freight infrastructure means we can hand off to the carrier the same day you place your order, provided payment is confirmed before 15:00 CST.

Typical Transit Times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, Poland): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• Australia & New Zealand: 3–5 business days via DHL Express
• South America (Brazil, Chile, Colombia): 6–8 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin — the documentation set required for customs clearance in most jurisdictions. For orders requiring an ATA Carnet, CITES documentation, or specific country-of-origin certification formats, contact us before placing the order so we can prepare the paperwork in parallel with picking and packing.

ESD-safe inner packaging, foam-lined outer carton, and moisture-barrier bag are standard on all module shipments. The module arrives in the same condition it left our shelf — not rattling around in a bubble-wrap envelope.

For orders above 5 units or with a declared value exceeding USD 2,000, we recommend adding cargo insurance. We can arrange this on your behalf at cost — ask when you contact us.
