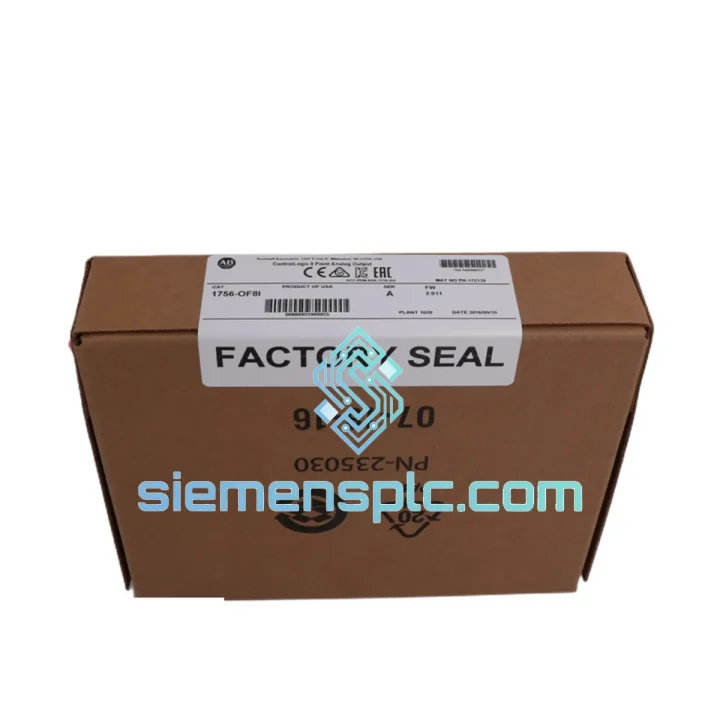

Allen-Bradley 1756-OF8 Analog Output Module

1756-OF8 Down? Every Minute Costs You Money — We Ship Same Day

A failed analog output module doesn’t just trip an alarm — it kills your process loop. When the 1756-OF8 goes dark, your valve positioners go blind, your VFDs lose their speed reference, and your PID loops open up. In a continuous process plant, that’s not a maintenance event. That’s a production loss event. At $5,000–$15,000 per hour of unplanned downtime in petrochemical or pharmaceutical operations, the math is brutal. You don’t need a quote turnaround in 48 hours. You need a module on a plane today.

We stock the Allen-Bradley 1756-OF8 in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 3:00 PM CST ship same business day. Most destinations in Southeast Asia receive delivery within 24–48 hours. Europe and North America within 3–5 business days. No waiting on distributor lead times. No back-order queues. The module is on the shelf, tested, and ready to go into your chassis the moment it arrives.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 1756-OF8 fails in predictable ways. Knowing the failure signature cuts your diagnosis time from hours to minutes.

Fault Code 16#0001 — Module Not Responding: The controller has lost backplane communication with the module. Before condemning the module, reseat it firmly — the ControlLogix backplane connector is a common culprit after vibration exposure. If reseating doesn’t clear it, swap the module to a known-good slot. If the fault follows the module, the backplane connector or internal logic is damaged. Replace the module.

Fault Code 16#0010 — Output Channel Fault: One or more channels have exceeded their rated load or experienced a short-circuit condition. Check field wiring for shorted pairs, especially on 4–20 mA loops where a failed positioner can present near-zero impedance. Isolate each channel by disconnecting field wiring and re-enabling outputs one at a time in Studio 5000 to identify the offending channel.

Electronic Keying Mismatch: If you’re dropping in a replacement 1756-OF8 and the controller throws a keying fault, check the series letter and firmware revision. ControlLogix electronic keying compares Vendor ID, Product Type, Product Code, Major Revision, and Minor Revision. In Studio 5000, navigate to the module properties and set keying to “Compatible Module” if you’re replacing with a different firmware revision. Do not set to “Disable Keying” in safety-critical applications.

Output Drift After Replacement: If analog outputs are reading correctly in the controller tag but field instruments show drift, verify the wiring termination at the 1492-AIFM8 field-side wiring module. Loose terminal screws on the IFM are a common source of intermittent signal errors that look like module faults. Torque all terminals to 0.5 N·m.

Replacement Procedure (Step-by-Step):

1. Place the controller in Program mode via the keyswitch or RSLogix 5000 / Studio 5000. Do not remove the module with the controller in Run mode — this will generate a major fault and may trip safety interlocks.
2. Inhibit the module in the I/O tree (right-click → Module Properties → Connection → Inhibit Module). This prevents the controller from faulting when the module is physically removed.
3. Disconnect field wiring at the IFM or directly at the module RTB. Label all wires before disconnection — the 1756-OF8 has 8 channels and wiring errors after replacement are a common source of post-maintenance incidents.
4. Press the module release latch and slide the 1756-OF8 out of the chassis slot.
5. Seat the replacement module firmly until the latch clicks. Verify the slot number matches your I/O configuration.
6. Reconnect field wiring. Verify polarity on all current loops — reversed polarity on a 4–20 mA loop will drive the output to 0 mA and the positioner to its fail-safe position.
7. Un-inhibit the module in Studio 5000. The controller will re-establish backplane communication and perform electronic keying verification.
8. Place the controller back in Run mode. Monitor all 8 channel output tags for expected values before releasing process control to automatic.

Firmware Note: If the replacement module has a different firmware revision than the original, update the module firmware using ControlFLASH or ControlFLASH Plus before installation. Mismatched firmware can cause subtle accuracy degradation that won’t generate a fault code but will affect loop performance.

Reliability in Harsh Conditions

The 1756-OF8 is not a commercial-grade component dressed up in industrial packaging. It is designed from the ground up for the environments where process control actually happens — not the clean room, but the compressor building, the chemical reactor bay, and the outdoor substation.

The module’s internal DAC circuitry is temperature-compensated across the full 0–60 °C operating range, maintaining ±0.1% accuracy without recalibration as ambient temperature swings between a cold winter startup and a summer heat soak in an unventilated control room. The backplane connector is rated for 50+ insertion cycles, which matters when you’re doing annual preventive maintenance or emergency swaps under pressure.

Vibration resistance meets IEC 61131-2 requirements: 5–150 Hz at 1 g continuous, 2 g peak. In compressor buildings and pump stations where structural vibration is a constant, this prevents the connector fretting and solder joint fatigue that kills lesser modules within 18 months. The conformal coating on the PCB provides protection against condensation and airborne contaminants — critical in coastal facilities, paper mills, and food processing plants where humidity and particulate levels exceed what standard PCB finishes can handle.

EMC performance is validated to IEC 61000-4 series: 4 kV contact ESD, 8 kV air discharge, 2 kV fast transient burst on signal lines, and 10 V/m radiated immunity. In facilities with large VFDs, welding equipment, or high-voltage switchgear nearby, this immunity margin is the difference between a stable control loop and a nuisance trip that your operators can’t explain.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport (XMN) and daily freight connections to DHL, FedEx, and UPS international gateways.

Shipping Process:

1. Order Confirmation: Once payment or purchase order is confirmed, the module is pulled from stock, re-inspected, and packed in ESD-safe anti-static packaging with desiccant. A commercial invoice, packing list, and HS code declaration (HS 8537.10) are prepared for customs clearance.
2. Same-Day Dispatch: Orders confirmed before 3:00 PM CST ship the same business day via DHL Express Worldwide or FedEx International Priority, depending on destination and customer preference. A tracking number is issued within 2 hours of dispatch.
3. Transit Times: Southeast Asia (Singapore, Thailand, Vietnam, Indonesia): 1–2 business days. Northeast Asia (Japan, South Korea, Taiwan): 1–2 business days. Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days. Europe (Germany, Netherlands, UK, France): 3–5 business days. North America (USA, Canada, Mexico): 3–5 business days. South America and Africa: 5–7 business days.
4. Customs Documentation: We provide a complete export documentation package including commercial invoice with declared value, packing list, certificate of origin, and ECCN classification for US export control compliance. For customers in countries requiring import licenses for industrial electronics, we can provide supporting technical documentation on request.
5. Urgent Freight Options: For genuine plant emergencies, we can arrange DHL Express 9:00 AM next-business-day delivery to major cities in Asia and Europe. Contact us directly via WhatsApp for real-time freight options when every hour counts.
