Allen-Bradley 1756-PA75R: Redundant AC Power Architecture for Mission-Critical ControlLogix Systems

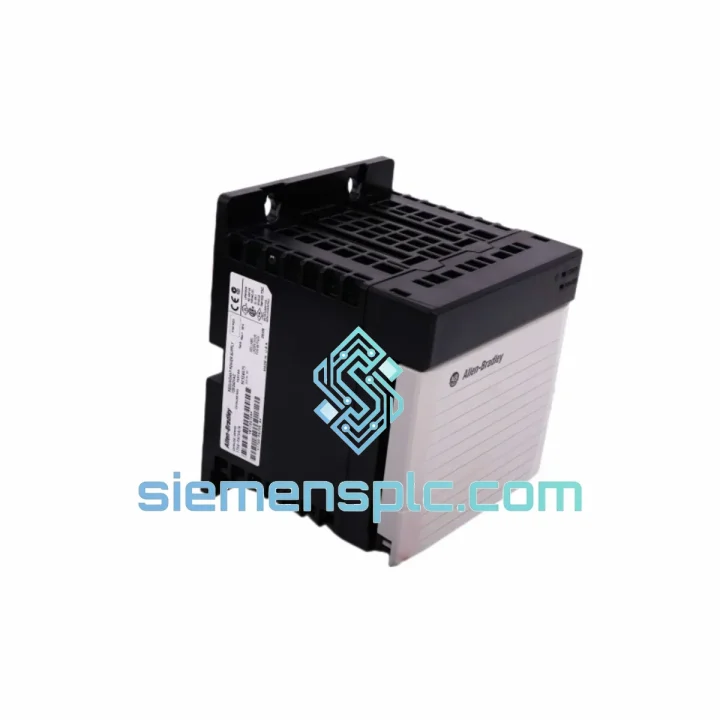

The 1756-PA75R is Allen-Bradley’s dedicated redundant AC power supply engineered for the ControlLogix 1756 platform. In process industries where an unplanned control system outage carries six-figure-per-hour cost consequences, the 1756-PA75R provides the electrical foundation that keeps the backplane energized regardless of individual supply failure. It operates in a 1+1 hot-standby configuration: two units share the chassis load under normal conditions, and upon detection of a fault on either unit, the surviving supply assumes 100% of the load within a hold-up window of less than 20 ms — a transition interval short enough that no 1756 module, including the L7x and L8x series CPUs, registers a power anomaly on its internal diagnostics bus.

This supply is the OEM-specified solution for redundant power in any standard 1756 chassis (4-, 7-, 10-, 13-, and 17-slot variants). It requires the 1756-PSCA2 Power Supply Chassis Adapter to establish the inter-supply arbitration bus when configured as a redundant pair. Without the PSCA2, a single 1756-PA75R functions as a standard non-redundant supply — identical in output performance to the 1756-PA75 — making it a flexible single-part-number solution for both standard and high-availability architectures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1756-PA75R’s internal architecture separates it from commodity DIN-rail power supplies in three measurable ways.

Redundancy Arbitration Logic. The supply contains a dedicated arbitration interface connector on its rear panel that links to the 1756-PSCA2 adapter. This bus carries continuous health telemetry between the two paired units: output voltage level, internal temperature, and input AC presence. The arbitration logic operates independently of the ControlLogix backplane — it does not consume any backplane bandwidth or require any ladder logic or Add-On Instruction to manage failover. The transition is entirely hardware-driven, which eliminates the software latency that would otherwise introduce a detectable gap in backplane power during a supply fault event.

EMC Design and Input Filtering. The 1756-PA75R incorporates a multi-stage EMI input filter rated to suppress conducted emissions per EN 55011 Class A limits. The filter topology includes common-mode chokes and X/Y capacitors positioned before the bridge rectifier stage, attenuating high-frequency noise injected from variable-frequency drives, contactors, and other inductive loads sharing the same AC distribution panel. This is a non-trivial design consideration in motor control centers (MCCs) where the 1756 chassis may be mounted within 1–2 meters of 480 V AC drive panels.

Isolated DC Output Stage. The 5 VDC backplane output is galvanically isolated from the AC input via a high-frequency transformer operating in the 100–200 kHz switching range. This isolation barrier provides a minimum of 1500 V AC dielectric withstand between the AC input and the DC output rail, protecting all installed 1756 modules from AC-side ground faults, neutral-to-ground voltage offsets, and transient overvoltages that exceed the clamping threshold of the input MOV network.

Thermal Management. The supply uses a forced-convection cooling path with an internal fan drawing air from the chassis front and exhausting through the rear. Fan speed is thermally regulated — at ambient temperatures below 40 °C, the fan operates at reduced speed, extending bearing service life. An over-temperature sensor on the main transformer core triggers a controlled shutdown before the junction temperature of the output FETs reaches a damaging threshold, and the fault is latched and reported via the front-panel FAULT LED.

Output Voltage Regulation. The 5 VDC output is regulated to ±2% under all load conditions from 0% to 100% of rated current. This tight regulation band is required by the 1756 backplane specification: modules with on-board DC-DC converters (such as the 1756-EN2T EtherNet/IP bridge) derive their internal logic voltages from the 5 V rail, and a rail deviation beyond ±5% will trigger module under-voltage lockout and force a re-initialization cycle that appears to the controller as a module fault.

System Integration Benefits

• No controller programming required for redundancy management. Failover between the primary and secondary 1756-PA75R units is handled entirely in hardware via the 1756-PSCA2 arbitration bus. No Function Block, Structured Text routine, or Produced/Consumed tag is needed to monitor or manage power supply state — the controller continues executing its task schedule without interruption.
• Deterministic backplane power during supply transition. The sub-20 ms hold-up time is shorter than the watchdog timeout of any standard ControlLogix task (minimum configurable watchdog: 1 ms, typical: 500 ms). The controller does not enter a faulted state during failover, preserving real-time output states on all installed I/O modules.
• Hot-swap replacement without chassis shutdown. With the redundant pair active and the healthy supply carrying full load, a failed 1756-PA75R can be physically removed and replaced while the chassis remains energized. This capability is essential for 24/7 continuous process operations where a planned maintenance window may be weeks away.
• Universal AC input eliminates regional SKU proliferation. The 85–265 V AC auto-ranging input covers both 110 V (North America, Japan) and 220–240 V (Europe, Asia, Middle East) distribution systems. A single part number serves global multi-site deployments, simplifying spare parts inventory management for multinational operators.
• ATEX Zone 2 certification for hazardous area panels. When installed inside an appropriately rated Ex e or Ex p enclosure, the 1756-PA75R meets the requirements for Zone 2 hazardous area installation per ATEX Directive 2014/34/EU. This allows ControlLogix-based control systems to be located closer to process equipment in petrochemical and offshore environments, reducing field wiring runs and associated signal integrity risks.
• Diagnostic transparency via front-panel LED indicators. Each 1756-PA75R carries independent OK (green) and FAULT (red) LEDs. In a redundant pair, an operator performing a panel walkthrough can immediately identify which supply has faulted without connecting a laptop, launching FactoryTalk Diagnostics, or interrogating the controller’s I/O tree — reducing mean time to diagnosis (MTTD) in field service scenarios.
• Drop-in mechanical compatibility with 1756-PA75. The 1756-PA75R shares the identical chassis slot footprint and connector pinout with the non-redundant 1756-PA75. Existing chassis wiring and AC input terminations require no modification when upgrading from a single-supply to a redundant-pair architecture — only the addition of the 1756-PSCA2 adapter and a second supply unit is required.
• Supports SIL-rated system architectures. In Safety Instrumented Systems designed to IEC 61511 / ISA-84, the power supply subsystem must demonstrate a probability of failure on demand (PFD) consistent with the target SIL level. The 1+1 redundant configuration of two 1756-PA75R units, combined with the automatic failover logic of the PSCA2, contributes to the overall system PFD calculation and supports SIL 2 power subsystem architectures when combined with appropriate proof-test intervals.
