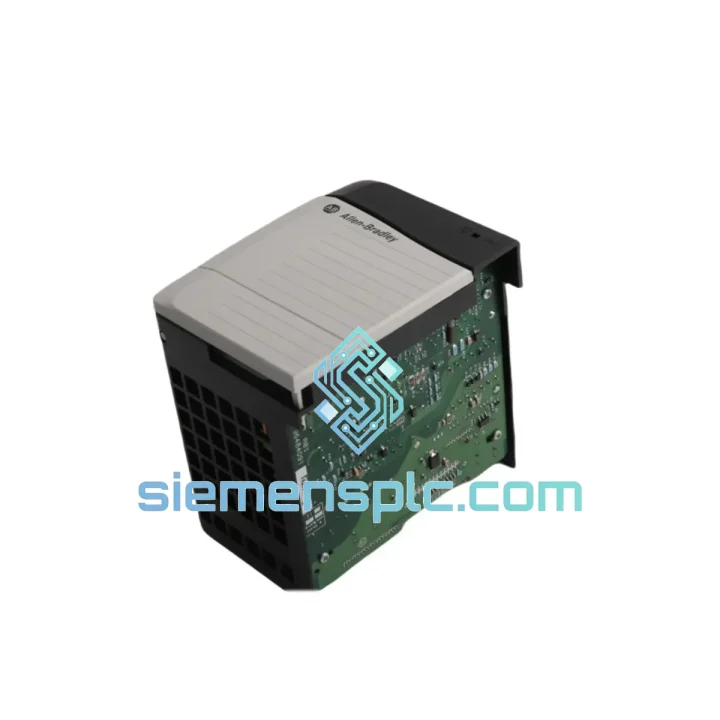

Allen-Bradley 1756-PBR2 PLC Power Supply – ControlLogix 1756 Series

Allen-Bradley 1756-PBR2: Redundant Power Architecture for Mission-Critical ControlLogix Systems

In continuous-process and safety-instrumented environments, power delivery is not a peripheral concern — it is the foundational layer upon which deterministic control depends. A single power supply failure in a live ControlLogix chassis can cascade into unplanned downtime, batch loss, or in regulated industries, a reportable safety event. The Allen-Bradley 1756-PBR2 addresses this directly: it is a factory-engineered redundant power supply bundle for the ControlLogix 1756 platform, designed to sustain chassis operation through a complete primary supply failure without interrupting the backplane communication cycle or the controller scan cycle.

The 1756-PBR2 operates within the ControlLogix 1756 chassis ecosystem — Rockwell Automation’s large-scale, modular PLC architecture deployed across oil & gas, automotive, pharmaceutical, water treatment, and power generation sectors globally. Unlike generic power redundancy solutions, the 1756-PBR2 is engineered to the 1756 backplane’s electrical and mechanical specification, ensuring load-sharing behavior and fault detection are native to the platform rather than externally patched.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Electrical parameters (input voltage range, output current, total wattage) must be confirmed against the official Rockwell Automation 1756-PBR2 product datasheet and installation instructions prior to system design. Specifications are subject to revision by the manufacturer.

Hardware Logical Analysis

The 1756-PBR2 bundle implements a parallel-redundant power topology at the chassis level. Both supply modules share the DC bus load simultaneously under normal operating conditions. The load-sharing ratio is managed by internal current-balancing circuitry, which prevents one module from carrying disproportionate current — a failure mode that accelerates electrolytic capacitor degradation and reduces MTBF in single-supply configurations.

When one supply module fails or is removed for maintenance, the surviving module assumes 100% of the chassis load within the transient response window defined by the backplane’s bulk capacitance. This transition occurs without a detectable voltage droop at the backplane rail, preserving the controller’s scan cycle integrity and preventing any I/O module from entering a fault state due to undervoltage.

From an EMC design perspective, the 1756-PBR2 incorporates input-side filtering to suppress conducted emissions back onto the AC supply rail. This is particularly relevant in environments where variable-frequency drives, contactors, and high-current switching loads share the same distribution panel. The filter network attenuates differential-mode and common-mode noise components, reducing the risk of supply-borne interference coupling into the controller’s analog I/O reference circuits.

The chassis-mount mechanical design enforces correct module seating via keyed connectors, eliminating the possibility of partial insertion — a known failure mode in field-replaceable power supply designs that can produce intermittent backplane faults that are difficult to diagnose. The hot-swap architecture includes inrush current limiting on the DC output side, preventing the insertion of a replacement module from causing a momentary voltage collapse on the shared bus.

Thermal management within the 1756-PBR2 relies on forced convection through the chassis airflow path. The module’s internal power stage is designed to operate within its thermal envelope at the rated ambient temperature without requiring supplemental cooling beyond the standard ControlLogix chassis fan assembly. Derating curves for elevated ambient temperatures are documented in the Rockwell Automation installation instructions and must be observed in enclosure designs with restricted airflow.

System Integration Benefits

• Elimination of single-point power failure: The 1+1 redundant configuration removes the power supply from the system’s single-point-of-failure analysis, directly improving the overall system availability figure (expressed as a percentage uptime over a defined operational period).
• Zero-interruption module replacement: Hot-swap capability allows a failed supply to be extracted and replaced while the chassis remains energized and the controller continues executing its control program — no controlled shutdown, no process interruption, no operator intervention beyond the physical swap.
• Preserved scan cycle determinism: Because the DC bus transition during a supply failure occurs within the backplane’s hold-up time, the controller’s task scheduler is not disrupted. Periodic tasks, event tasks, and motion tasks continue executing on schedule, maintaining closed-loop control integrity.
• Native diagnostic transparency: The ControlLogix platform exposes power supply status through the chassis diagnostics interface. Maintenance personnel can monitor supply health, detect a degraded module before it fails completely, and schedule replacement during a planned maintenance window rather than responding to an unplanned outage.
• Reduced mean time to repair (MTTR): The bundle format consolidates the redundant power hardware into a single part number, simplifying spare parts inventory management. A single 1756-PBR2 on the shelf covers the complete redundant power assembly, reducing the administrative overhead of maintaining separate line items for each supply module.
• Compatibility with ControlLogix redundancy systems: In chassis configurations that also employ the 1756-RM2 redundancy module for controller-level redundancy, the 1756-PBR2 provides the power layer redundancy that complements the controller redundancy layer — delivering a fully redundant system architecture from power input through to control output.
• Simplified compliance documentation: For systems subject to IEC 61511 (functional safety for process industries) or IEC 62061 (safety of machinery), the use of a manufacturer-engineered redundant power bundle simplifies the hardware fault tolerance (HFT) argument in the safety case, compared to field-assembled redundancy solutions using discrete components.
• Long-term platform alignment: As a Rockwell Automation factory component, the 1756-PBR2 is subject to the same lifecycle management policy as the broader ControlLogix platform. Firmware compatibility, hardware revision tracking, and end-of-life notifications are managed through Rockwell’s product lifecycle program, providing a predictable support horizon for long-duration plant assets.

Quality Assurance & Global Logistics

Every Allen-Bradley 1756-PBR2 unit supplied through siemensplc.com is sourced from verified supply channels with full traceability to authorized distribution or factory-direct inventory. Each unit undergoes a structured pre-shipment inspection protocol covering enclosure integrity, connector condition, label authenticity, and serial number cross-reference against manufacturer records.

Anti-counterfeit screening is applied to every unit. The industrial automation components market carries a documented counterfeit risk for high-demand Rockwell Automation part numbers. Our inspection process applies physical and electronic verification methods consistent with industry best practices for counterfeit detection, including marking analysis, weight verification, and where applicable, functional bench testing.

Shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to international express carriers including DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard international transit times to major industrial markets are 3–7 business days for express services. Economy freight options are available for non-urgent orders. All shipments are packed in ESD-safe, moisture-barrier packaging appropriate for sensitive electronic assemblies in international transit. Full tracking is provided from dispatch to delivery. A 12-month warranty applies from the date of shipment, covering manufacturing defects and verified functional failures under normal operating conditions.
