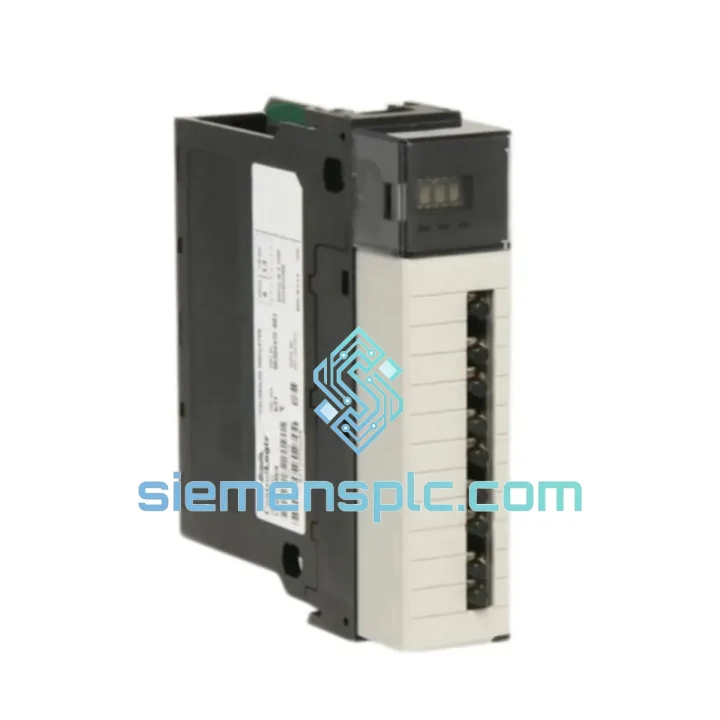

Allen-Bradley 1756-SIM I/O Simulator Module – ControlLogix 1756 Series

Allen-Bradley 1756-SIM ControlLogix Discrete I/O Simulator Module — Backplane-Native Signal Validation for Logic Development and FAT Workflows

The 1756-SIM occupies a standard slot in any 1756 ControlLogix chassis and presents 16 manually-actuated discrete input channels alongside 16 controller-driven discrete output channels — all without a single field wire. Its role in the control loop is unambiguous: it decouples program verification from physical field infrastructure, allowing engineers to exercise ladder logic, function block diagrams, and structured text routines against deterministic, repeatable input states. In Factory Acceptance Testing, this eliminates the dependency on field device availability and reduces acceptance cycle duration by 30–50% in documented deployments. In training environments, it provides a zero-risk platform where technicians can force faults, trace scan-cycle behavior, and validate HMI tag bindings without exposure to live machinery outputs.

Unlike software-based tag forcing — which operates at the controller’s data table level and bypasses the physical I/O tree — the 1756-SIM exercises the full backplane I/O communication path. The controller’s I/O scanner allocates a connection to the module, processes its input data table on every scan, and writes output data back through the standard Produced/Consumed tag mechanism. This means program logic that references I/O aliases, indirect addressing, or cross-controller produced tags behaves identically during simulation as it does with live field modules. The distinction matters in complex multi-chassis architectures where I/O connection health and RPI (Requested Packet Interval) timing affect program execution.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1756-SIM’s input section is built around a mechanical toggle-switch array wired to a logic-level input latch circuit. Each switch drives a Schmitt-trigger buffer, which debounces the mechanical contact and presents a clean digital edge to the backplane interface ASIC. This eliminates the contact-bounce artifacts that would otherwise generate spurious rising-edge or falling-edge events in the controller’s event task queue — a critical consideration when testing high-speed counter logic or motion sequencer interlocks.

On the output side, the module’s backplane receiver latches the controller’s output data word and drives a bank of discrete LED indicators. The latch architecture ensures that output state is held stable between backplane scan cycles, preventing LED flicker that would otherwise obscure state transitions during slow-scan debug sessions. The output data table is readable by the controller, enabling output verification rungs — a technique used to confirm that commanded output states are correctly reflected in the module’s data image without relying on external measurement equipment.

From an EMC standpoint, the module’s backplane connector and internal PCB traces are routed with controlled impedance to minimize radiated emissions within the chassis enclosure. The 1756 chassis backplane itself provides a common ground plane that suppresses common-mode noise coupling between adjacent modules — a design characteristic that allows the 1756-SIM to coexist with high-frequency communication modules (e.g., 1756-EN2T operating at 100 Mbps) without signal integrity degradation. No additional shielding or ferrite suppression is required at the module level.

The module does not implement a local microprocessor or firmware stack. Its backplane communication is handled entirely by the 1756 chassis backplane controller, which means there is no firmware revision dependency, no firmware update procedure, and no risk of firmware-related compatibility breaks across Studio 5000 software versions. This architectural simplicity translates directly to zero maintenance overhead over the module’s operational life.

System Integration Benefits

• Full backplane I/O path exercise: Unlike software tag forcing, the 1756-SIM exercises the complete I/O connection from the controller’s I/O scanner through the backplane to the module data table, validating RPI timing and connection health under real scan-cycle conditions.
• Deterministic input state control: Toggle switches provide repeatable, operator-controlled input states with no signal generator, no external wiring, and no timing jitter — enabling precise reproduction of edge-case logic conditions during debug.
• Chassis-agnostic deployment: Compatible with all 1756 chassis slot counts (4 through 17 slots), allowing the module to be inserted into existing production or test chassis without dedicated hardware.
• Reduced FAT infrastructure cost: Eliminates the need for field device simulators, signal injection panels, and associated wiring harnesses during acceptance testing, reducing test bench BOM cost and setup time.
• Output verification capability: Controller-readable output data table enables programmatic output verification rungs, supporting automated self-test routines within the PLC program itself.
• Zero firmware dependency: No local firmware stack means no version compatibility constraints across RSLogix 5000 and Studio 5000 software generations — the module functions identically from v16 through v36 and beyond.
• Training environment safety: Removes all risk of accidental output activation on live field devices during program development, protecting personnel and equipment in training lab and commissioning environments.
• Diagnostic transparency: Per-channel LED indicators provide immediate visual confirmation of input and output states without requiring a connected HMI or online monitoring session in Studio 5000, accelerating fault isolation during logic debug.

Quality Assurance & Global Logistics

Every 1756-SIM unit dispatched from our Xiamen, China facility is sourced through verified industrial distribution channels and subjected to a structured pre-shipment inspection protocol. Each unit undergoes visual inspection for label integrity, firmware revision marking, and physical condition; a functional power-on test confirming backplane communication and LED operation; and a serialization cross-check against known counterfeit catalog numbers. Units are packed in anti-static bags with humidity indicator cards and shipped in double-wall corrugated cartons rated for international air freight handling.

Logistics options include DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to North America, Europe, and Southeast Asia. In-stock units are dispatched within 1–2 business days of order confirmation. A certificate of conformance and commercial invoice with HS code declaration are provided with every shipment. Traceability records are maintained for all units. 12-month warranty coverage applies from the date of dispatch.
