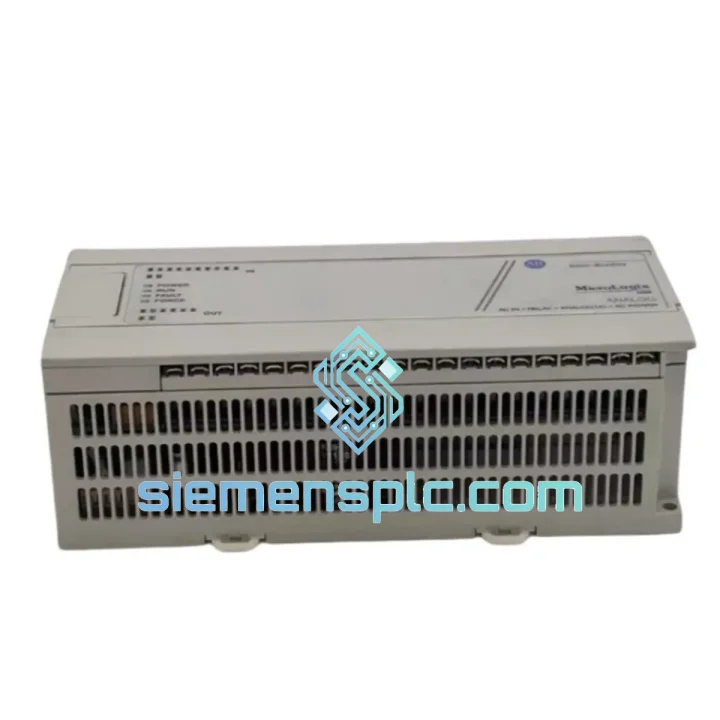

Allen-Bradley 1761-L20AWA-5A Programmable Logic Controller – MicroLogix 1100

Allen-Bradley 1761-L20AWA-5A — 20-Point AC/Relay MicroLogix 1100 Controller: Role in Discrete Control Loops

The 1761-L20AWA-5A is a fixed-architecture programmable logic controller within Rockwell Automation’s MicroLogix 1100 family. Its designation encodes its electrical topology precisely: L20 denotes 20 onboard I/O points, A specifies AC-powered input circuitry (120/240 VAC selectable), W identifies relay-type output drivers, and the trailing A confirms AC power supply input. The -5A suffix designates the firmware revision bundle shipped from the factory.

In a discrete control loop, this controller occupies the decision layer between field sensors and actuators. Its 12 AC inputs accept signals directly from proximity switches, limit switches, and pushbuttons wired at 120 VAC — eliminating the intermediate relay or signal converter that 24 VDC-only controllers require in legacy AC panel environments. The 8 relay outputs switch resistive and inductive loads up to 2 A per point at 240 VAC, making them directly compatible with solenoid valves, motor starters, and pilot lamps without interposing relays. This architecture reduces panel wiring density and lowers mean-time-to-diagnose when a field device fails, because the I/O map corresponds directly to the physical wiring without translation layers.

The onboard RS-232 port (Channel 0) supports DF1 Full-Duplex and DH-485 protocols, enabling peer-to-peer messaging with other MicroLogix nodes or HMI panels without a dedicated communication module. For Ethernet/IP integration, the 1761-NET-ENI adapter bridges Channel 0 to a standard 10/100 Mbps network, allowing the controller to participate in a Logix-based architecture while retaining its standalone footprint. Program execution follows a fixed scan cycle: input image update → ladder logic solve → output image update, with a typical scan time of 0.9 ms per 1 K of Boolean logic at the rated clock speed.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1761-L20AWA-5A input circuit uses a bridge rectifier and RC filter network ahead of the optical coupler. At 120 VAC, the rectified DC signal charges the filter capacitor to approximately 85 VDC peak; the optocoupler LED fires when the voltage exceeds the ON threshold (74 VAC RMS equivalent). This design provides inherent half-wave noise rejection: transients shorter than one half-cycle (~8.3 ms at 60 Hz) do not accumulate sufficient charge to trigger a false ON state. The result is a measured input filter time of 1 ms (hardware) plus a configurable software filter of 0–32 ms per input group, giving the programmer precise control over debounce without external RC networks.

The relay output stage uses bifurcated gold-flashed contacts on the Form A relay. Gold flash maintains low contact resistance (typically < 50 mΩ) during the initial life of the relay when switching low-energy signals such as 24 VDC pilot circuits. As load current increases, the gold layer burns away and the underlying silver-alloy contact takes over for high-current switching. This dual-material strategy means the same output point can switch a 5 VDC logic signal and a 240 VAC motor starter coil across its service life without contact welding or excessive arcing.

EMC performance is addressed at the PCB level through a multi-layer ground plane that separates the AC input common from the logic ground. The power supply section uses a common-mode choke on the AC line input, attenuating conducted emissions in the 150 kHz–30 MHz band per EN 55011 Class A limits. The backplane bus between the CPU and I/O image registers operates at 3.3 V logic with series termination resistors on each data line, suppressing reflections that would otherwise appear as spurious read errors in high-noise panel environments. The LCD module is driven via a dedicated SPI bus isolated from the main data bus, preventing display refresh cycles from introducing jitter into the scan cycle timing.

The real-time clock module uses a dedicated 32.768 kHz crystal oscillator with a lithium coin cell (CR2032, ~5-year service life at 25°C). The RTC data register is accessible via ladder instructions (GRT, LES comparisons against the S:37–S:40 system file words), enabling time-stamped event logging directly in the controller without an external SCADA timestamp. Battery-backed SRAM retains the user program and data table for a minimum of 30 days at 25°C when AC power is removed.

System Integration Benefits

• Direct AC field wiring: 120/240 VAC inputs eliminate signal converters in legacy panel retrofits, reducing BOM cost by 15–25% on typical 20-point applications.
• Mixed-load relay outputs: Isolated output commons allow simultaneous switching of 24 VDC solenoids and 120 VAC contactors from a single controller without external relay banks.
• Multi-protocol Channel 0: DF1, DH-485, ASCII, and Modbus RTU on a single RS-232 port enable integration with third-party drives, meters, and barcode readers without additional communication modules.
• Deterministic scan cycle: Fixed input-solve-output scan architecture guarantees worst-case response time is bounded by 2× scan time + I/O filter delay, enabling precise timing analysis for safety-adjacent applications.
• Onboard LCD diagnostics: The 4-line display shows I/O status, fault codes, and data file values without a connected programming terminal, reducing mean-time-to-repair in field service scenarios.
• Ethernet/IP via 1761-NET-ENI: Transparent integration into Studio 5000 / FactoryTalk View architectures without replacing the controller, protecting existing ladder logic investment.
• Expansion scalability: Up to 6 MicroLogix 1100 expansion modules (1762 series) extend I/O to 136 points, analog inputs/outputs, and thermocouple/RTD measurement without changing the CPU.
• RSLogix 500 compatibility: Full programming support in RSLogix 500 v8.0+ and Connected Components Workbench, with online editing, forced I/O, and trend monitoring available during live operation.
• Battery-backed program retention: SRAM retains program and data for ≥ 30 days without AC power, eliminating re-download requirements after power outages in remote installations.
• Compact DIN-rail footprint: 90 × 90 × 87 mm envelope fits standard 150 mm deep enclosures, enabling high-density panel layouts in space-constrained OEM equipment.

Quality Assurance & Global Logistics

Every 1761-L20AWA-5A unit dispatched from siemensplc.com is sourced through traceable supply channels and subjected to a structured pre-shipment inspection protocol. Visual examination covers label integrity (Rockwell Automation holographic security label, date code, and serial number format), housing parting-line consistency, and terminal block pin alignment. Functional verification confirms AC power-on boot sequence, LCD initialization, and RS-232 port response to a DF1 status query. Units that do not pass all checkpoints are quarantined and not listed for sale.

Shipments originate from Xiamen, Fujian Province, China — a major export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. In-stock units are dispatched within 1–3 business days of payment confirmation. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. For orders requiring formal customs clearance support (HS code 8537.10), additional documentation including a proforma invoice and technical datasheet is provided at no charge. Bulk orders of 5 or more units qualify for sea freight consolidation through our Xiamen freight forwarding partners, with typical transit times of 18–25 days to European and North American ports. All units are packed in anti-static foam inserts within double-wall corrugated cartons, with photographic documentation of the packed unit retained for 90 days post-shipment. A 12-month warranty covers manufacturing defects from the date of shipment.
