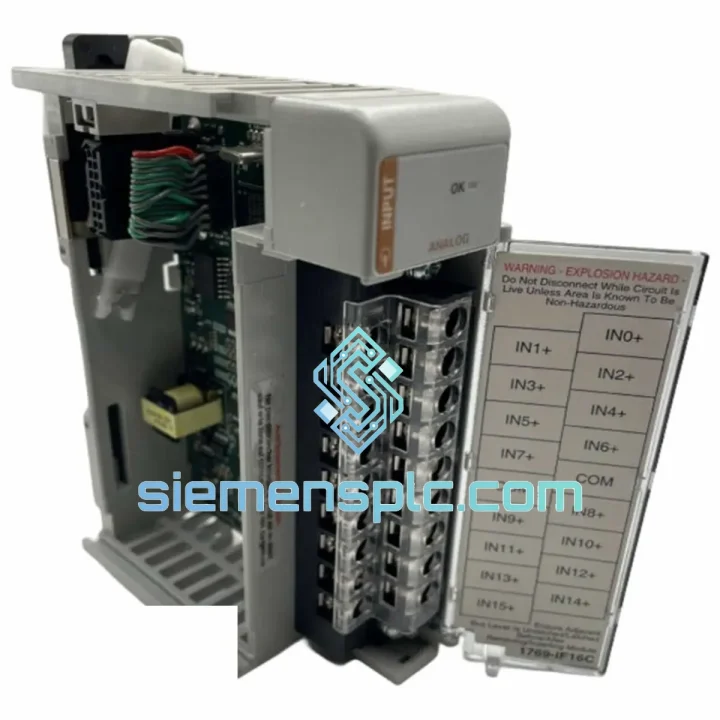

Allen-Bradley 1769-IF16C Analog Input Module

1769-IF16C Down? Every Minute Costs Money — We Ship Same Day from Xiamen

Your CompactLogix rack just threw a fault. The 1769-IF16C is dead. Sixteen analog current channels offline means your process loop is blind — flow, pressure, temperature, level: all gone. Production stops. The clock starts. You need a replacement module on-site, not a lead-time quote.

We stock the Allen-Bradley 1769-IF16C in Xiamen and dispatch within hours of payment confirmation. DHL Express or FedEx International — your call. Most destinations in Asia receive delivery within 24–48 hours. Europe and the Americas: 48–72 hours. No warehouse delays, no middlemen, no excuses.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on CompactLogix systems teach you the same lessons. Here is what actually matters when you are swapping a 1769-IF16C under pressure:

Fault Code 16#0004 — Channel Fault / Open Wire: Before condemning the module, check your field wiring first. A broken 4–20 mA loop or a failed transmitter will throw this exact fault. Disconnect the RTB, jumper a 250 Ω resistor across the suspect channel terminals, and inject a known 12 mA signal. If the fault clears, the module is fine — your field device is the problem.

Fault Code 16#0010 — Over-Range: Seen most often after a lightning strike or a shorted transmitter dumps 30+ mA into the channel. The channel protection circuit may have sacrificed itself. If only one or two channels are affected, the module is partially functional — but do not trust it in a safety-critical loop. Replace it.

Module Replacement Procedure (Hot-Swap Capable with Correct Firmware):

1. In Studio 5000, go online with the controller. Note the module’s slot number and verify the I/O configuration tag structure — you will need this after the swap.
2. Inhibit the module in the I/O tree to suppress faults during removal. Do not delete the module definition — you want the configuration preserved.
3. Loosen the RTB (removable terminal block) retaining screw and pull the RTB straight out. The wiring stays intact on the RTB — this is the whole point of the removable block design.
4. Press the module’s top and bottom locking tabs simultaneously and slide it out of the 1769 bus. The bus connector is keyed — the replacement will only seat one way.
5. Slide the new 1769-IF16C into the slot until the bus connector clicks. Reattach the RTB.
6. Remove the inhibit in Studio 5000. The controller will automatically download the stored configuration to the new module — channel ranges, filter settings, and scaling all restore without manual re-entry.
7. Verify: go online, check the module’s properties, confirm all 16 channels show valid process values. Cross-check against your field instruments.

Firmware Matching: The 1769-IF16C does not carry user-upgradeable firmware in the traditional sense — its behavior is governed by the controller’s I/O configuration. However, confirm your Studio 5000 / RSLogix 5000 version supports the module revision. Revision A and B hardware are both compatible with Studio 5000 v20 and later. If you are running an older controller on v16 or v18, verify the EDS file is installed before going online.

Channel Configuration After Swap: If the controller was in Program mode during the swap and the module definition was preserved, configuration restores automatically. If the module definition was accidentally deleted, you will need to re-add it in the I/O tree: right-click the slot, select New Module, search for 1769-IF16C, and re-enter your channel ranges (0–20 mA or 4–20 mA per channel) and RPI rate. Typical RPI for analog modules: 20–50 ms. Do not set it below 10 ms — you will saturate the backplane.

Common Mistake — Forgetting the End Cap: If you are adding this module to an existing rack that previously ended at a different slot, you must move the 1769-ECR or 1769-ECL end cap to the new rightmost position. A rack without a properly seated end cap will not power up correctly and will generate cryptic backplane faults that waste hours of diagnostic time.

Reliability in Harsh Conditions

The 1769-IF16C was engineered for industrial environments where office-grade electronics would fail within weeks. The module’s conformal-coated PCB resists condensation and airborne contaminants — critical in coastal facilities, food processing plants, and chemical handling areas where humidity regularly exceeds 85% RH.

Vibration tolerance is rated to IEC 60068-2-6 standards, covering the frequency ranges typical of pump skids, compressor stations, and mobile equipment panels. The bus connector uses a positive-locking mechanism that maintains electrical continuity even under continuous vibration — a failure mode that plagues cheaper third-party analog modules.

Thermal performance is validated across the full 0°C to 60°C operating range with no derating required. In practice, a well-ventilated panel running this module at 55°C ambient will see no degradation in A/D accuracy or channel isolation. The 16-bit converter maintains ±0.1% full-scale accuracy across the entire temperature range — a specification that matters when you are monitoring a slow-moving process variable and need to detect a 0.2 mA drift before it becomes a runaway condition.

Channel-to-channel isolation prevents a fault on one loop from corrupting adjacent channel readings — a design feature that becomes critical when you are mixing high-impedance transmitters with low-impedance current sources in the same module.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is how the shipment process works from the moment you confirm your order:

• Hour 0–2: Payment confirmed. Module pulled from stock, inspected, photographed, and packed in anti-static ESD bag inside a foam-padded export carton.
• Hour 2–4: Shipping label generated. Commercial invoice, packing list, and country of origin certificate prepared. Customs HS code: 8537.10 (pre-cleared for most destinations).
• Hour 4–8: Handed to DHL Express or FedEx International courier. Tracking number sent to your email immediately.
• Day 1–2: Delivery to most destinations in China, Southeast Asia, Japan, South Korea, and Australia.
• Day 2–3: Delivery to Middle East, India, and most of Europe.
• Day 2–4: Delivery to North America and South America.

For critical plant shutdowns, we can arrange same-day courier pickup for orders confirmed before 14:00 CST. Contact us via WhatsApp for real-time coordination — we respond within 15 minutes during business hours and within 1 hour outside business hours.

All shipments include full export documentation. For customers in countries requiring import permits or specific customs declarations for industrial electronics, contact us before ordering and we will prepare the paperwork in advance to prevent customs delays.
