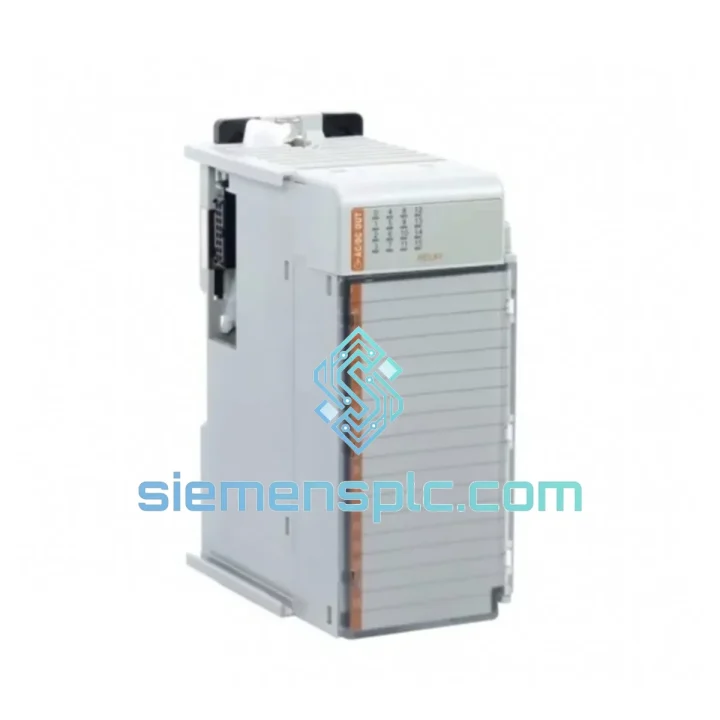

Allen-Bradley 1769-OW16 Relay Output Module – CompactLogix 1769 Compact I/O

Allen-Bradley 1769-OW16: 16-Point Relay Output Module for CompactLogix Discrete Control Architectures

In a discrete output control loop, the output module is the final command executor — the component that translates the controller’s logic state into a physical switching action. The Allen-Bradley 1769-OW16 performs this function using electromechanical relay contacts, providing galvanic isolation between the controller backplane and field-side loads. Each of its 16 output points operates as an independent dry contact, capable of switching AC or DC loads across a voltage range of 5 V to 265 V AC and 5 V to 125 V DC. This voltage-agnostic characteristic eliminates the need for external interface relays when a control panel mixes 24 V DC solenoid valves with 120 V AC motor starters on the same output module.

The module occupies a single slot in the 1769 Compact I/O bank and draws 105 mA from the 5 V DC backplane bus. Its 16 outputs are organized into 8 isolated groups of 2 points each, with each group sharing a common terminal. This group-isolation architecture prevents fault propagation: a short circuit or overvoltage event on one group does not affect adjacent groups, a design characteristic that directly supports IEC 62061 and ISO 13849 safety architecture planning in machine control applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 1769-OW16 implements a relay-based output architecture that differs fundamentally from solid-state (triac or transistor) output modules. Understanding the hardware logic clarifies both its strengths and its application boundaries.

Galvanic Isolation via Relay Coil-Contact Separation. Each relay coil is driven by the module’s internal logic circuitry at 5 V DC backplane potential. The relay contact, however, is electrically independent of the coil — there is no conductive path between the backplane logic side and the field-side load circuit. This galvanic isolation provides inherent protection against field-side transients coupling back into the controller backplane. In environments with high-energy inductive switching (motor starters, solenoid valves), this isolation barrier is a measurable EMC advantage over optocoupler-based solid-state outputs, which can still pass common-mode noise through parasitic capacitance across the optocoupler package.

Group-Level Common Architecture and Fault Containment. The 8 isolated groups each share a single common terminal for their 2 output points. This means field wiring can use different voltage references per group — Group 1 commons at 120 V AC neutral, Group 2 commons at 24 V DC negative — without cross-contamination. The physical relay contact gap provides the isolation; no active semiconductor is in the fault path. This architecture supports mixed-voltage panel designs without external isolation transformers or relay barriers.

Contact Protection and Inductive Load Handling. Relay contacts switching inductive loads (motors, solenoids, transformers) are subject to arc energy at contact break. The 1769-OW16 does not include internal arc suppression components — this is a deliberate design choice that preserves contact voltage drop at near-zero millivolts (unlike MOV or RC snubber circuits, which introduce a small leakage path). Engineers must install external suppression: RC snubbers (typically 0.1 µF + 100 Ω) across AC inductive loads, or flyback diodes across DC inductive loads. Failure to do so accelerates contact erosion and reduces electrical life below the rated 100,000 operations.

Backplane Communication and Scan Cycle Interaction. The 1769-OW16 communicates with the CompactLogix controller via the 1769 serial backplane bus. Output data is written to the module’s output image table during the controller’s output scan phase. The relay coil energizes within 10 ms of the backplane write — this operate time must be factored into safety function response time calculations per IEC 62061. For applications requiring sub-millisecond output response, solid-state output modules (1769-OB16) are the appropriate selection; the 1769-OW16 is optimized for applications where contact isolation and voltage flexibility outweigh switching speed requirements.

EMC Design Considerations. The module’s metal housing and backplane connector shield provide a continuous ground reference that attenuates radiated emissions from the relay coil switching transients. The 1769 Compact I/O rail grounding system connects module housings to the DIN rail ground, which should be bonded to the control panel earth at a single point to avoid ground loop currents. In high-EMI environments (variable frequency drives, arc welders), shielded field wiring with shields grounded at the panel end is recommended to prevent induced voltages from exceeding the relay contact’s minimum load current threshold of 10 mA.

System Integration Benefits

• Voltage-Agnostic Field Interface: Switches 5–265 V AC and 5–125 V DC loads from a single module, eliminating the need for separate AC and DC output modules in mixed-voltage panels and reducing hardware BOM cost.
• Per-Group Isolation for Mixed-Voltage Wiring: Eight independently isolated output groups allow different voltage references per group, enabling direct connection to 24 V DC, 120 V AC, and 230 V AC field devices without external isolation barriers.
• Deterministic Output Scan Integration: Output data is updated every controller scan cycle via the 1769 backplane bus, ensuring relay state changes are synchronized with the PLC program execution cycle for predictable control loop behavior.
• Removal and Insertion Under Power (RIUP): Supports hot-swap replacement when used with compatible CompactLogix systems, allowing module substitution during scheduled maintenance windows without full system shutdown.
• Removable Terminal Block (RTB): Pre-wired terminal blocks detach from the module body, enabling module replacement without disturbing field wiring — a critical feature for minimizing MTTR in production environments.
• Per-Point LED Diagnostics: Each of the 16 output points has a dedicated status LED that reflects the commanded state from the controller output image table, providing immediate visual confirmation of output state during commissioning and fault diagnosis without requiring a laptop or programming terminal.
• Compact I/O Ecosystem Compatibility: Integrates directly with the full 1769 Compact I/O module range — analog, digital input, specialty — allowing engineers to build mixed I/O banks on a single backplane without gateway modules or protocol converters.
• Studio 5000 Logix Designer Integration: Module configuration, I/O mapping, and diagnostic data are fully accessible within the Studio 5000 Logix Designer environment, supporting Add-On Instructions (AOIs) and structured tag-based programming for maintainable, scalable code architecture.
• Fault Reporting via Controller Backplane: Module-level fault data (communication loss, configuration mismatch) is reported to the controller’s I/O fault table, enabling programmatic fault handling and HMI alarm generation without additional diagnostic hardware.
• Long Mechanical Service Life: Rated at ≥ 10,000,000 mechanical operations, the relay mechanism supports high-cycle applications such as conveyor indexing and packaging machine sequencing without scheduled contact replacement within normal equipment service intervals.

Quality Assurance & Global Logistics

Every 1769-OW16 unit dispatched from our Xiamen, China facility is sourced directly from authorized Allen-Bradley distribution channels. Authenticity verification includes inspection of Rockwell Automation holographic security labels, date code consistency checks against manufacturer production records, and country-of-origin marking validation. Units are stored in climate-controlled ESD-safe warehousing to prevent electrostatic discharge damage to relay coil driver circuitry during storage.

Prior to shipment, each module undergoes functional verification: relay coil energization is confirmed at rated backplane voltage, and contact continuity is measured across all 16 output points under a 24 V DC test load. Modules that do not meet specification are quarantined and returned to the supply chain — no exceptions.

Shipment from Xiamen reaches major industrial hubs with the following typical transit times: Hong Kong and Taiwan within 1–2 business days; Southeast Asia (Singapore, Thailand, Vietnam) within 3–5 business days; Europe (Germany, Netherlands, UK) within 5–8 business days via DHL Express or FedEx International Priority; North America (USA, Canada) within 5–7 business days. All shipments include full tracking, commercial invoice, packing list, and certificate of origin documentation suitable for customs clearance. For orders requiring expedited delivery, same-day dispatch is available for in-stock units ordered before 14:00 CST.

A 12-month warranty covers manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued upon confirmation of defect.
